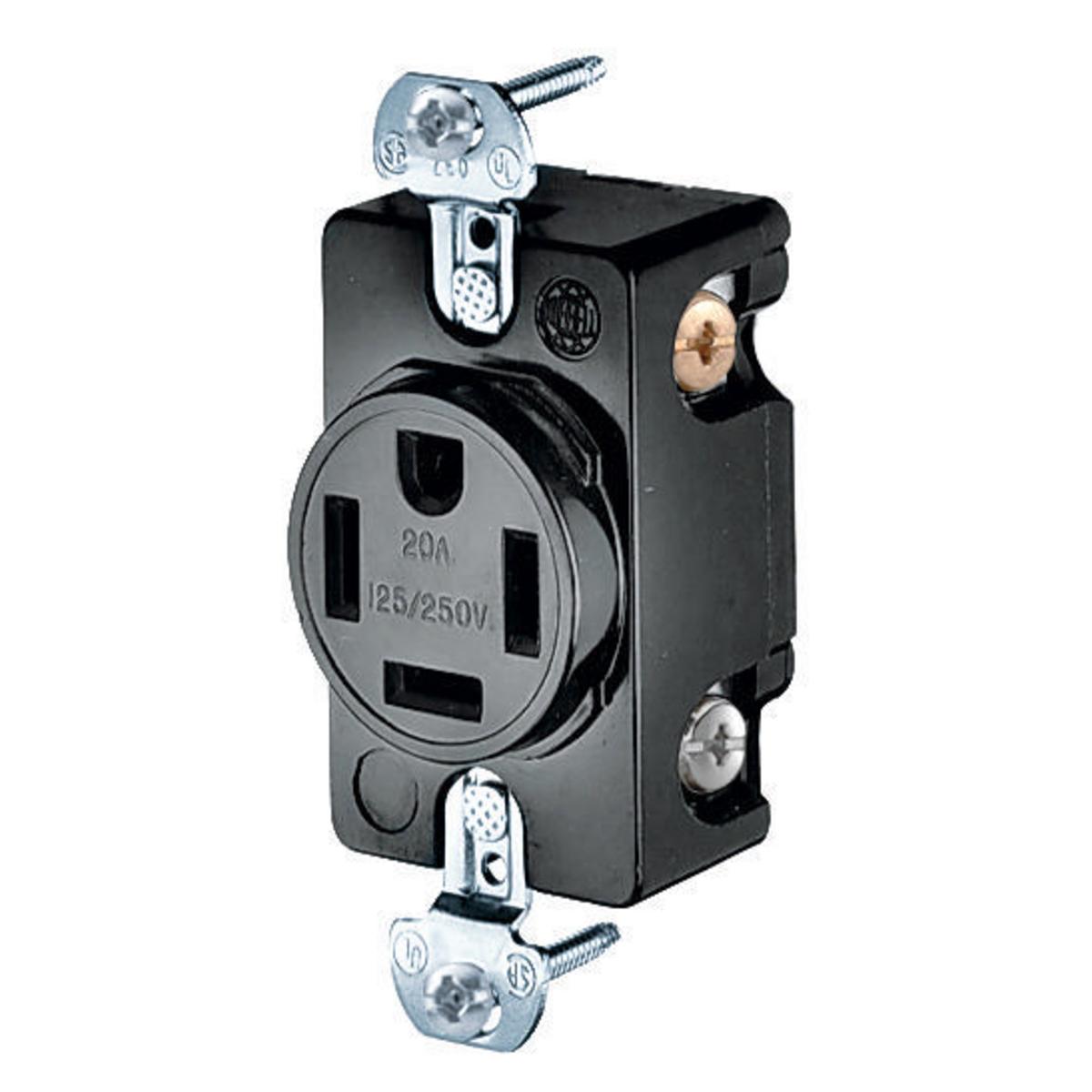

Wiring Device-Kellems HBL8410 1-Phase Extra Heavy Duty Self-Grounding Single Standard Screw Mount Straight Blade Receptacle

Product Description

The Wiring Device-Kellems HBL8410 is a straight blade receptacle designed for heavy-duty applications. With a voltage rating of one hundred twenty-five to two hundred fifty volts AC, it supports a maximum current of twenty amperes. This model is engineered for installation with three poles and four wires to ensure reliable connectivity.

• Rated for hospital-grade service
• Constructed with thermoplastic and composite materials
• IP20 enclosure rated against solid objects greater than twelve millimeters

Product Highlights

This receptacle features a self-grounding design, back and side wire capabilities, and withstands two thousand VAC dielectric voltage testing.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 2.44 x 1.5 x 1.24 inches
• Enclosure: IP20
• Grade: Hospital
• Horsepower: 2 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 14-20R
• Temperature Rating: -40 to 75 degrees Celsius
• Voltage Rating: 125/250 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• Terminal Type: Back and Side Wire/Screw
• Type: 1-Phase Extra Heavy Duty Self-Grounding Single Standard Screw Mount
