Wiring Device-Kellems HBL8352C 3-Phase Angled Heavy Duty Non-Grounding Male Cord Mount

Product Description

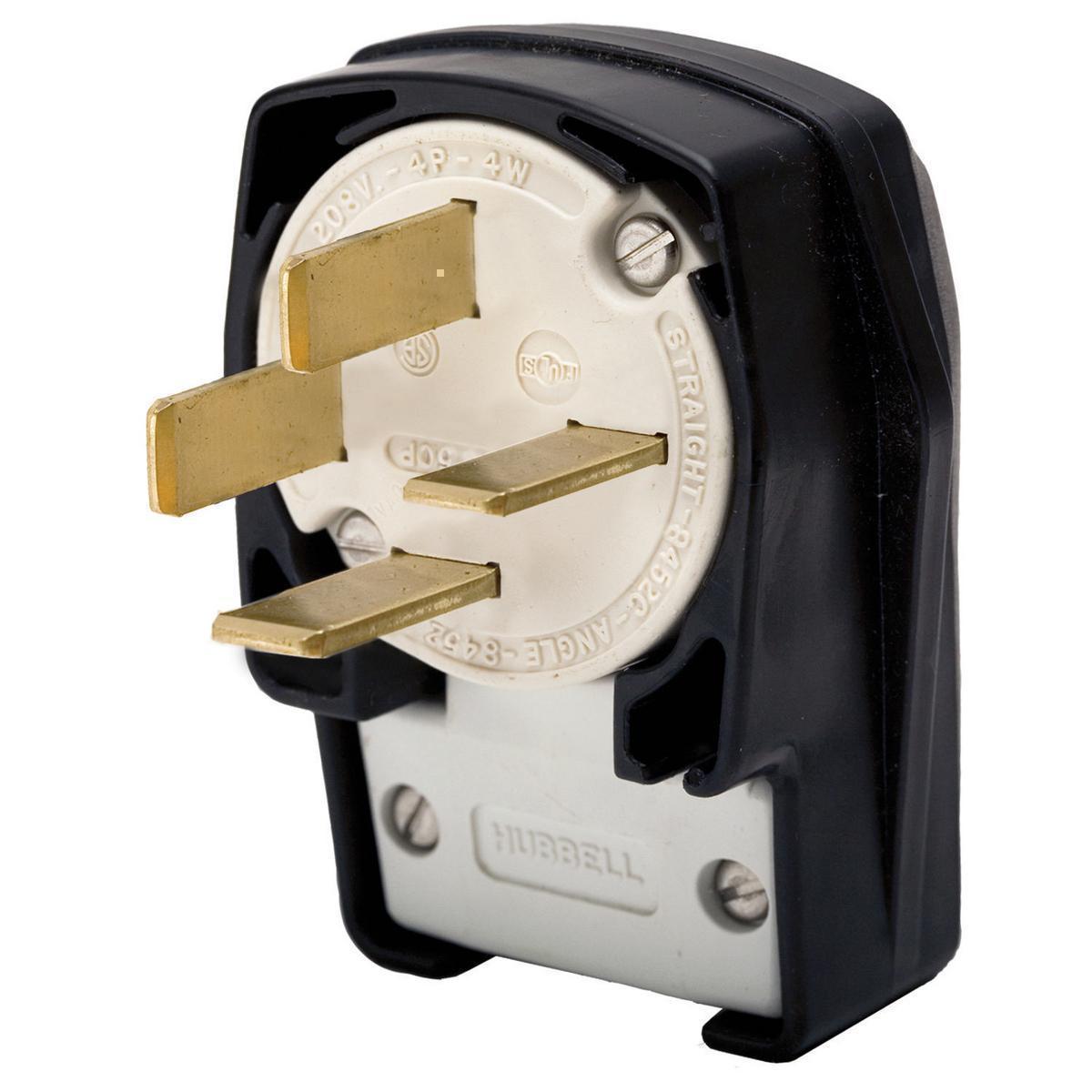

The Wiring Device-Kellems HBL8352C is a three-phase angled heavy duty non-grounding male cord mount straight blade plug. It supports a voltage rating of 120/208 VAC and an amperage rating of fifty amps. This plug is suitable for commercial and industrial applications, featuring a robust design for heavy-duty use.

• Rated for 50 amps and 120/208 VAC
• Constructed from nylon with screw terminal type
• IP20 enclosure rating for indoor use

Product Highlights

This plug is built for reliable performance in tough environments, especially in commercial settings.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell
• UPC: 783585015507

Technical Specifications

• Type: 3-Phase Angled Heavy Duty Non-Grounding Male Cord Mount
• Color: Black
• Grade: Commercial/Industrial
• Material: Nylon
• Enclosure: IP20
• Dimensions: 4.5 inches x 2.72 inches x 2.37 inches
• Horsepower: 7.5 hp
• NEMA Rating: 18-50P
• Cord Diameter: 0.625 inches to 1.31 inches
• Temperature Rating: -40 to 75 degrees C
• Amperage Rating: 50 A
• Number of Poles: 4
• Number of Wires: 4
