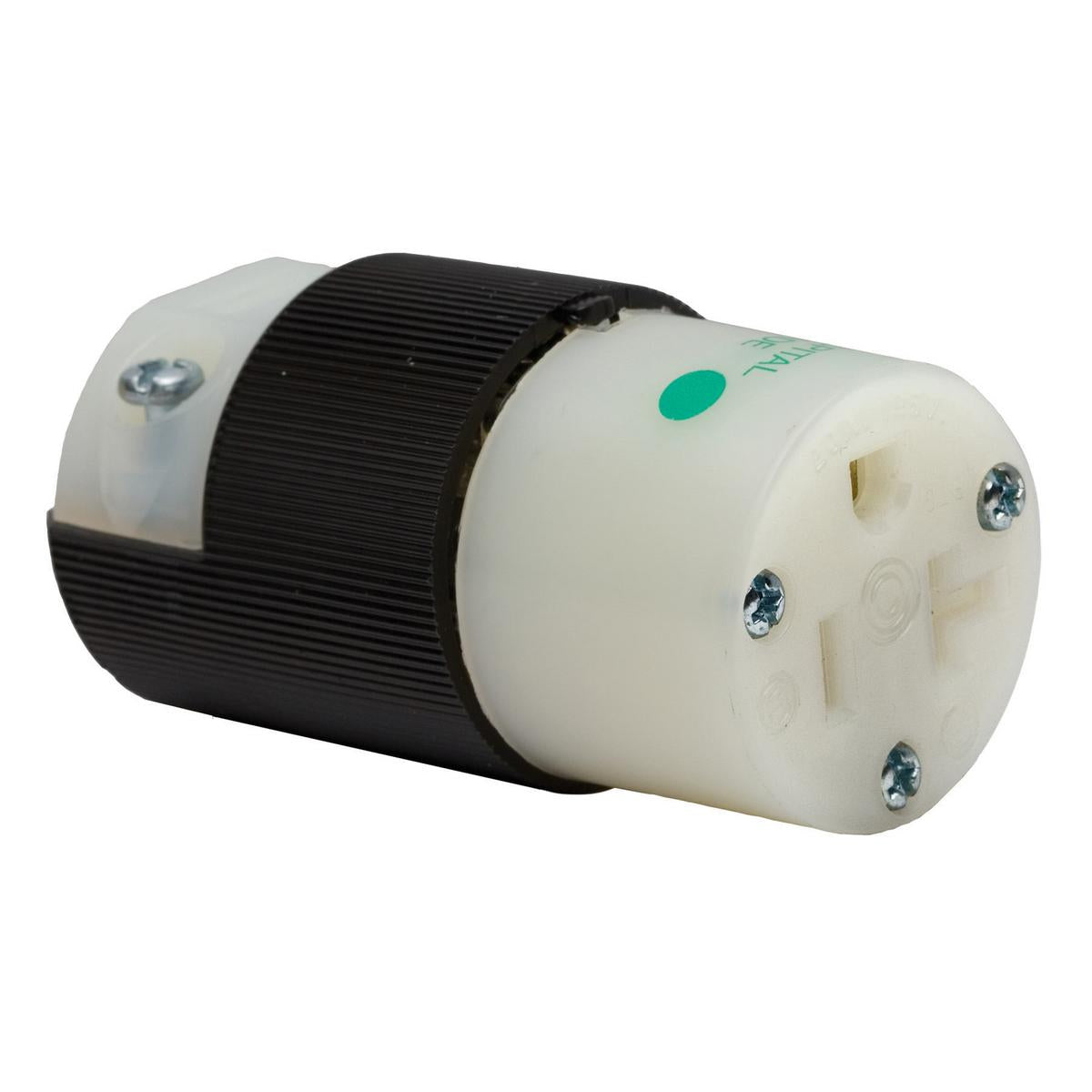

Wiring Device-Kellems HBL8319C Female Standard Sized Cord Mount 125 VAC 20 A 2 Poles 3 Wires

Product Description

The Wiring Device-Kellems HBL8319C is a female standard sized cord mount straight blade connector. It operates at 125 VAC and has a rating of 20 A. This device features two poles and three wires, making it suitable for various electrical applications. Its construction includes a nylon casing and it is designed to accommodate cords with diameters ranging from 0.23 to 0.72 inches.

• Beveled housing prevents snagging.
• Powerful, offsetting cord grips clamp on individual conductors.
• Hospital grade for use in sensitive environments.

Product Highlights

This connector is ideal for equipment requiring robust and reliable connections in commercial or industrial settings.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Dimensions: 2.78 x 1.53 x 1.53 inches
• Cord Diameter: 0.23 to 0.72 inches
• Temperature Rating: -40 to 75 deg C
• Material: Nylon
• Enclosure: IP20
• Grade: Hospital
