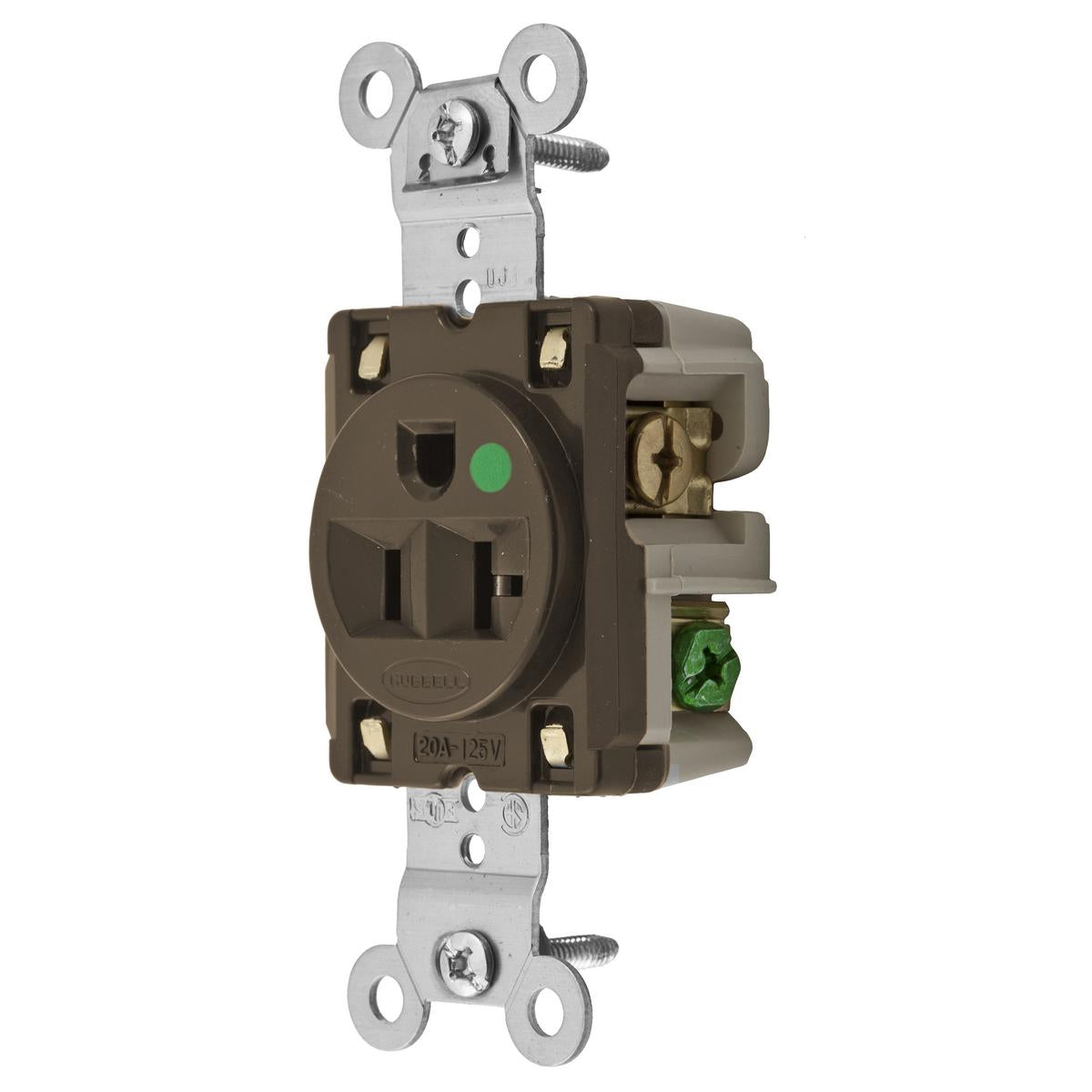

Wiring Device-Kellems HBL8310 1-Phase Extra Heavy Duty Single Self-Grounding Standard Screw Mount

Product Description

The Wiring Device-Kellems HBL8310 is a straight blade receptacle designed for heavy duty applications. This product features a self-grounding style and is rated for 125 VAC and 20 A. It is a two pole and three wire device that offers a hospital grade option with excellent durability. The enclosure type is IP20, allowing safe operation in various environments.

• 1-phase extra heavy duty design
• Self-grounding with nickel plated brass ground strap
• NEMA 5-20R rating for reliable performance

Product Highlights

This receptacle is suitable for both commercial and residential settings. It supports a maximum of 1 horsepower and comes with back and side wire/screw terminals for easy installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 3.28 x 1.63 x 1.19 inches
• Enclosure: IP20
• Grade: Hospital
• Horsepower: 1 hp
• Material: Nylon
• NEMA Rating: 5-20R
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Back and Side Wire/Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
