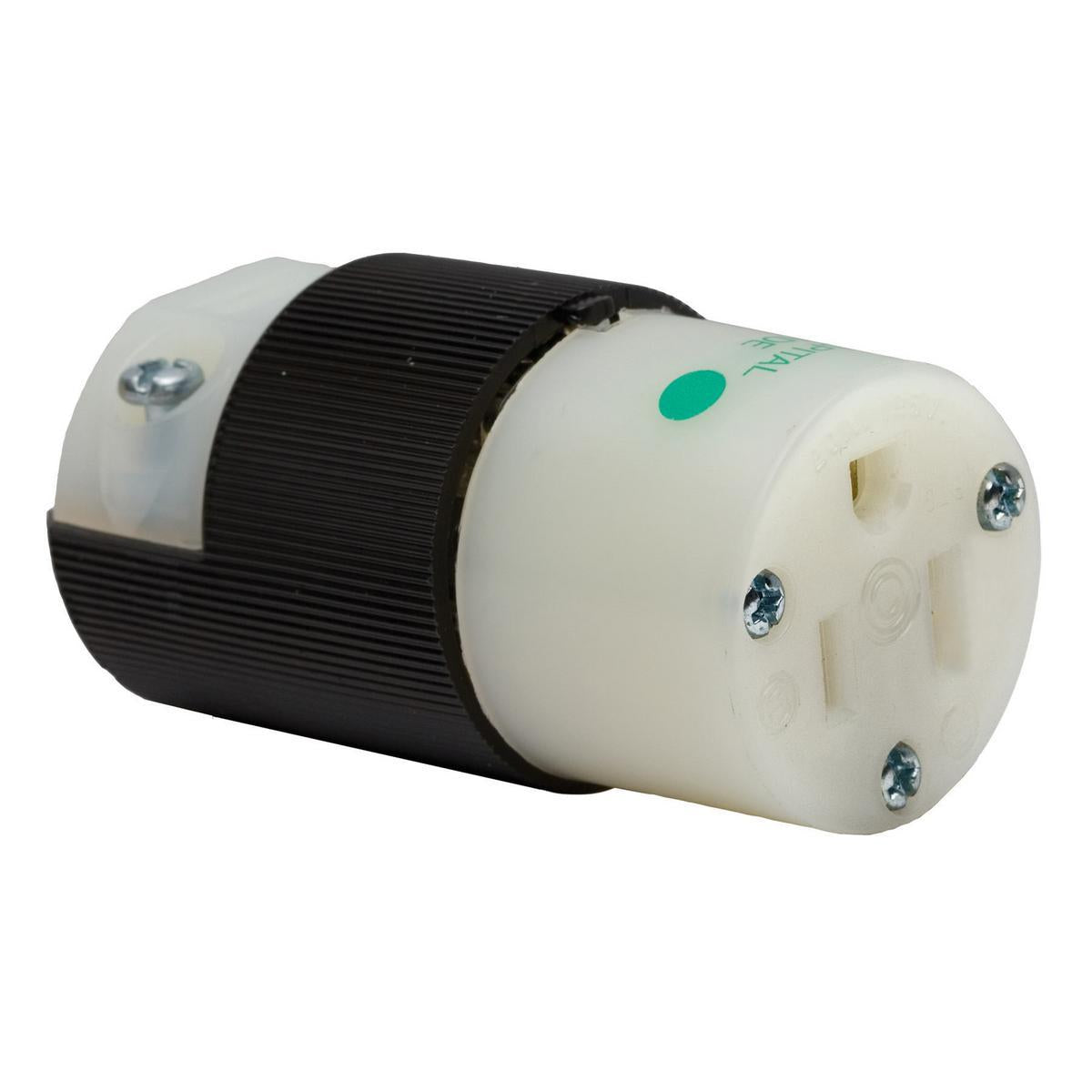

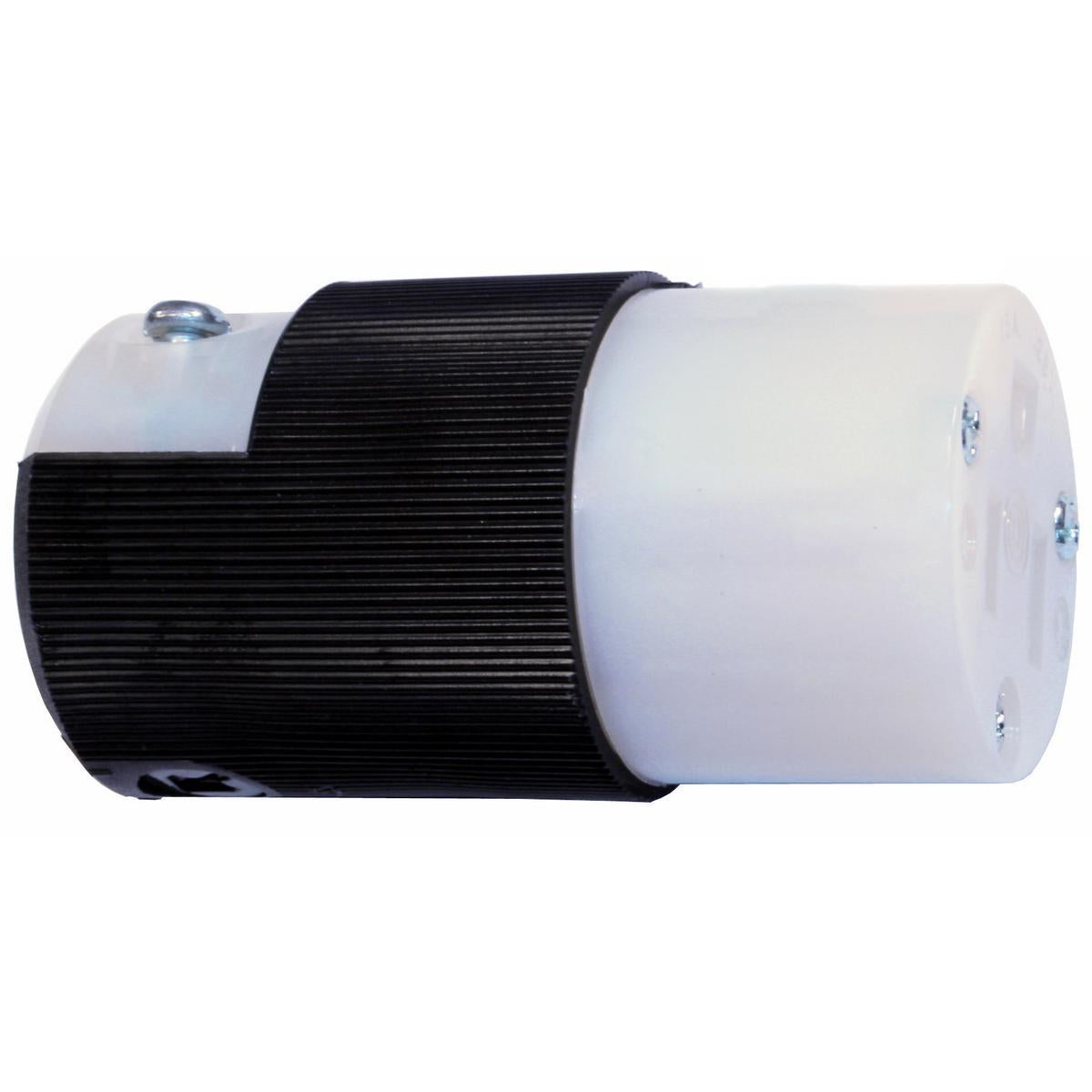

Wiring Device-Kellems HBL8219C Straight Blade Connector 125 VAC 15 A

Product Description

The Wiring Device-Kellems HBL8219C is a straight blade connector designed for female standard-sized cord mount applications. It operates at 125 VAC and supports an amperage of 15 A. This connector features two poles and three wires, making it suitable for various electrical connections.

• Cord diameter ranges from 0.23 inches to 0.72 inches.
• Temperature rating from -40 degrees Celsius to 75 degrees Celsius.
• IP20 rated enclosure suitable for indoor applications.

Product Highlights

This connector provides reliable electrical performance and durability. The screw terminal design ensures secure connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Horsepower: 1/2 hp
• Material: Nylon
• NEMA Rating: 5-15R
• Enclosure: IP20
• Dimensions: 2.78 x 1.53 x 1.53 inches
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Black/White
• Terminal Type: Screw
• Type: Female Standard Sized Cord Mount
• Temperature Rating: -40 to 75 degrees Celsius
• Cord Diameter: 0.23 to 0.72 inches
