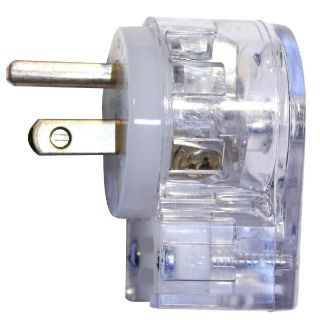

Wiring Device-Kellems HBL8215CAT 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Straight Blade Plug

Product Description

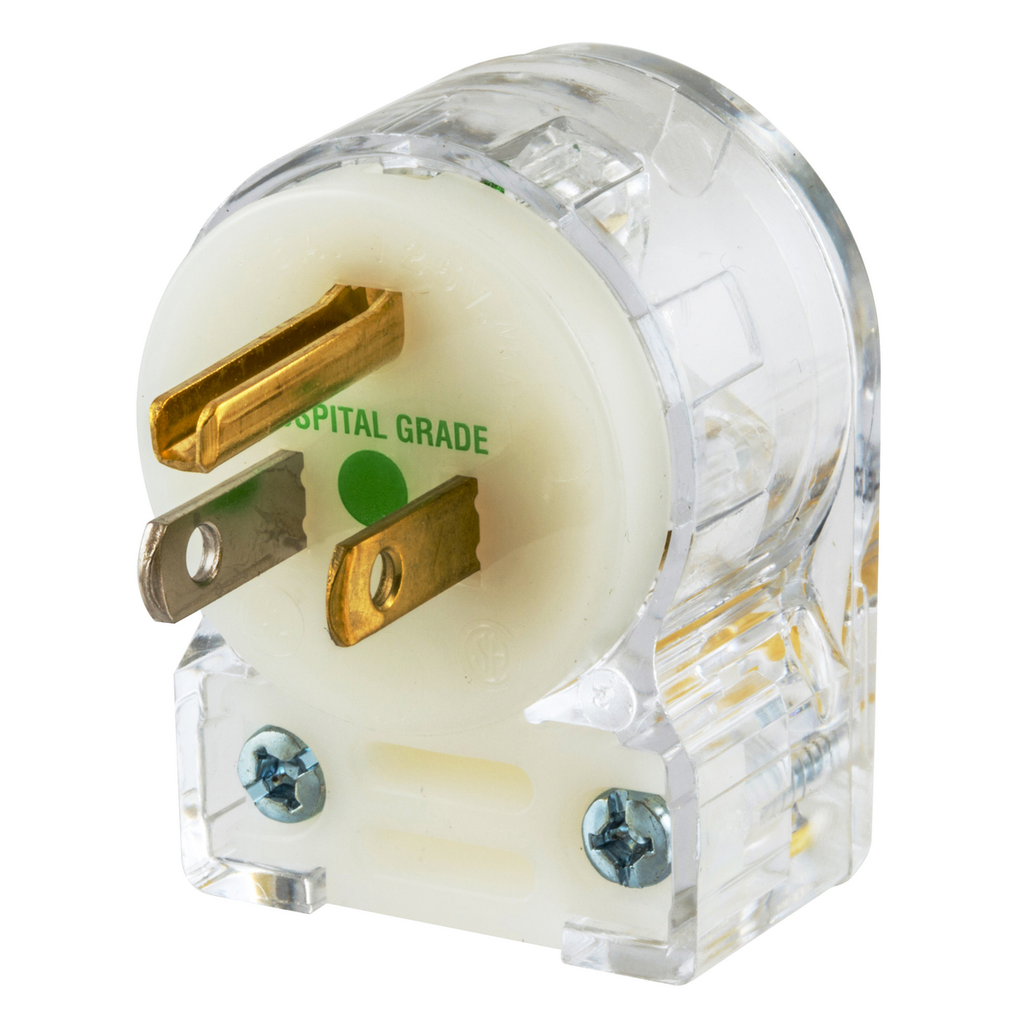

The Wiring Device-Kellems HBL8215CAT is a straight blade plug designed for reliable electrical connections. It features a one-phase angled grounding male cord mount configuration. This plug supports a voltage rating of one hundred twenty-five volts and an amperage rating of fifteen amps.

• 2 pole, 3 wire design for effective grounding
• Compatible with NEMA 5-15P standards
• Constructed with a composite material and a hospital-grade rating

Product Highlights

This plug is suitable for a variety of applications, particularly in environments requiring safety and reliability, such as hospitals. Its transparent design allows for visual inspection of wiring, while the screw terminal ensures secure connections.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• MPN: HBL8215CAT
• Color: Transparent
• Material: Composite
• Enclosure: IP20
• Dimensions: 1.52 in W x 1.21 in D x 2.08 in H
• Horsepower: 1/2 hp
• NEMA Rating: 5-15P
• Cord Diameter: 0.25 to 0.655 in
• Terminal Type: Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Country of Origin: PR
• Temperature Rating: -40 to 75 deg C
