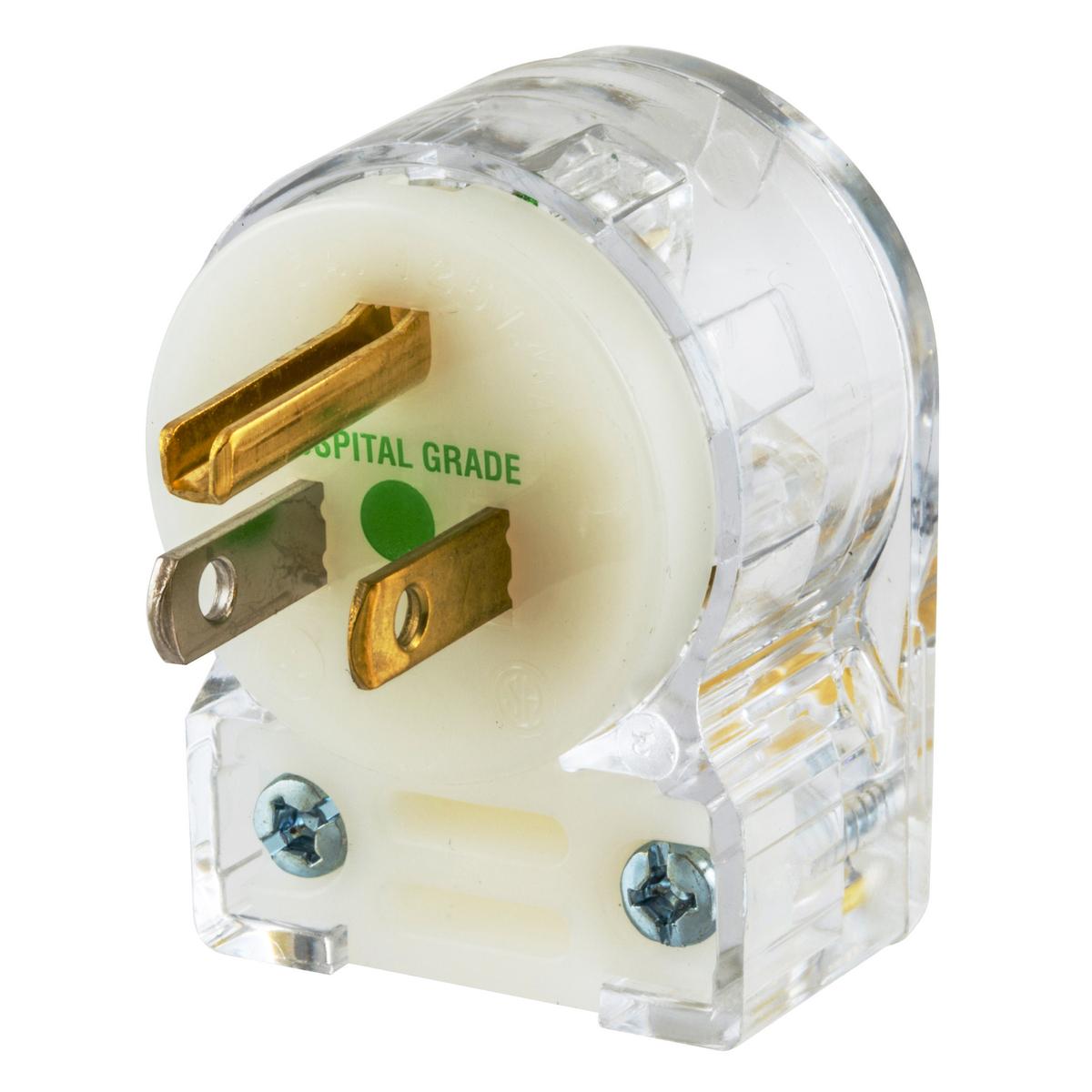

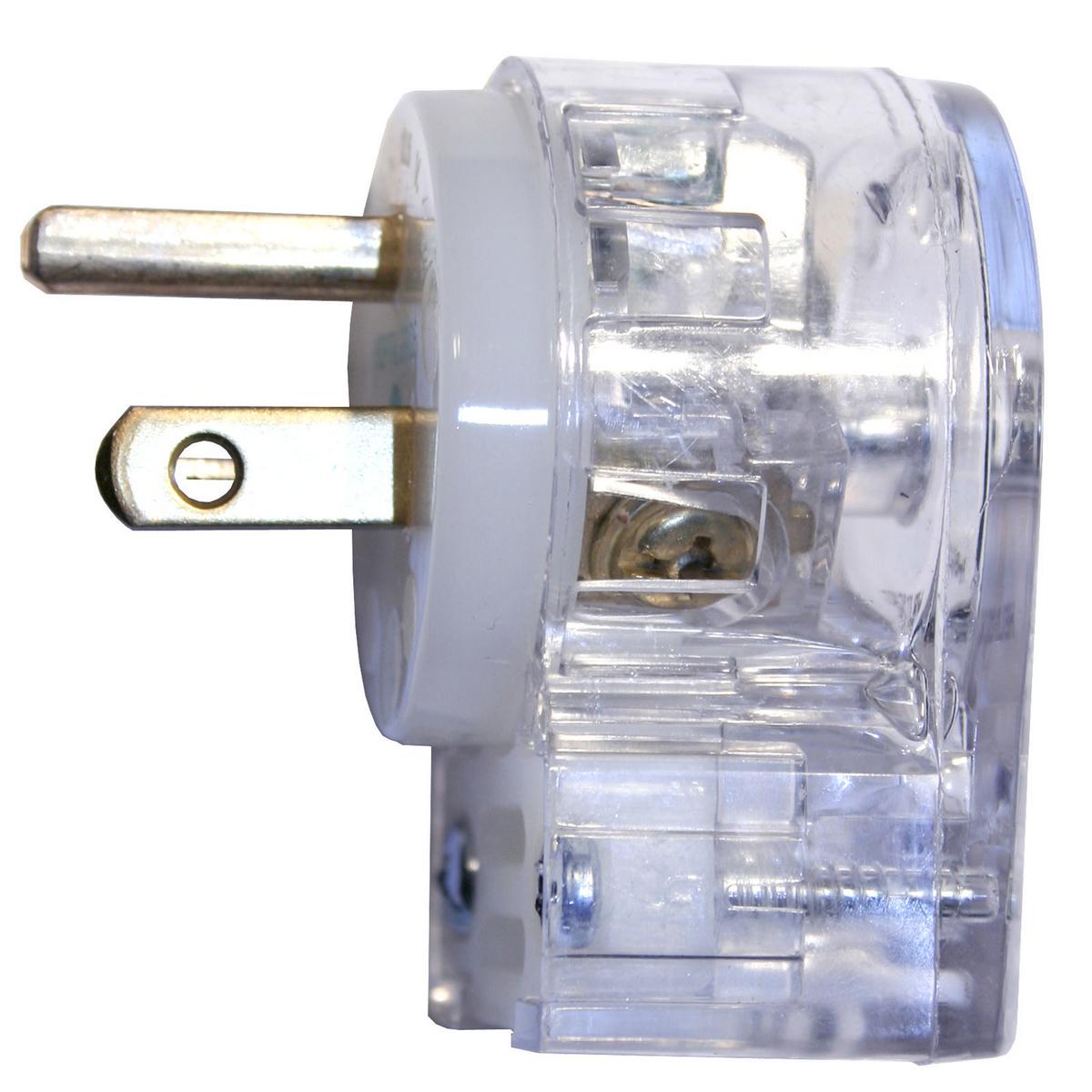

Wiring Device-Kellems HBL8215CAT 1-Phase Angled Grounding Male Cord Mount Straight Blade Plug 125 VAC 15 A 5-15P

Product Description

The Wiring Device-Kellems HBL8215CAT, also known as the HBL8215CAT, is a straight blade plug designed for 1-phase angled grounding applications. This device operates at 125 VAC and supports 15 A with a hospital-grade rating. It features two poles and three wires, ensuring secure connections.

• Enclosed wiring terminals for safety.
• Powerful cord grips for individual conductors.
• Transparent design for easy inspection of connections.

Product Highlights

The HBL8215CAT is built with a composite material, making it durable and reliable for various electrical needs.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Horsepower: 1/2 hp
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.25 to 0.655 in
• Enclosure: IP20
• Temperature Rating: -40 to 75 deg C
• NEMA Rating: 5-15P
• Dimensions: 1.52 in W x 1.21 in D x 2.08 in H
