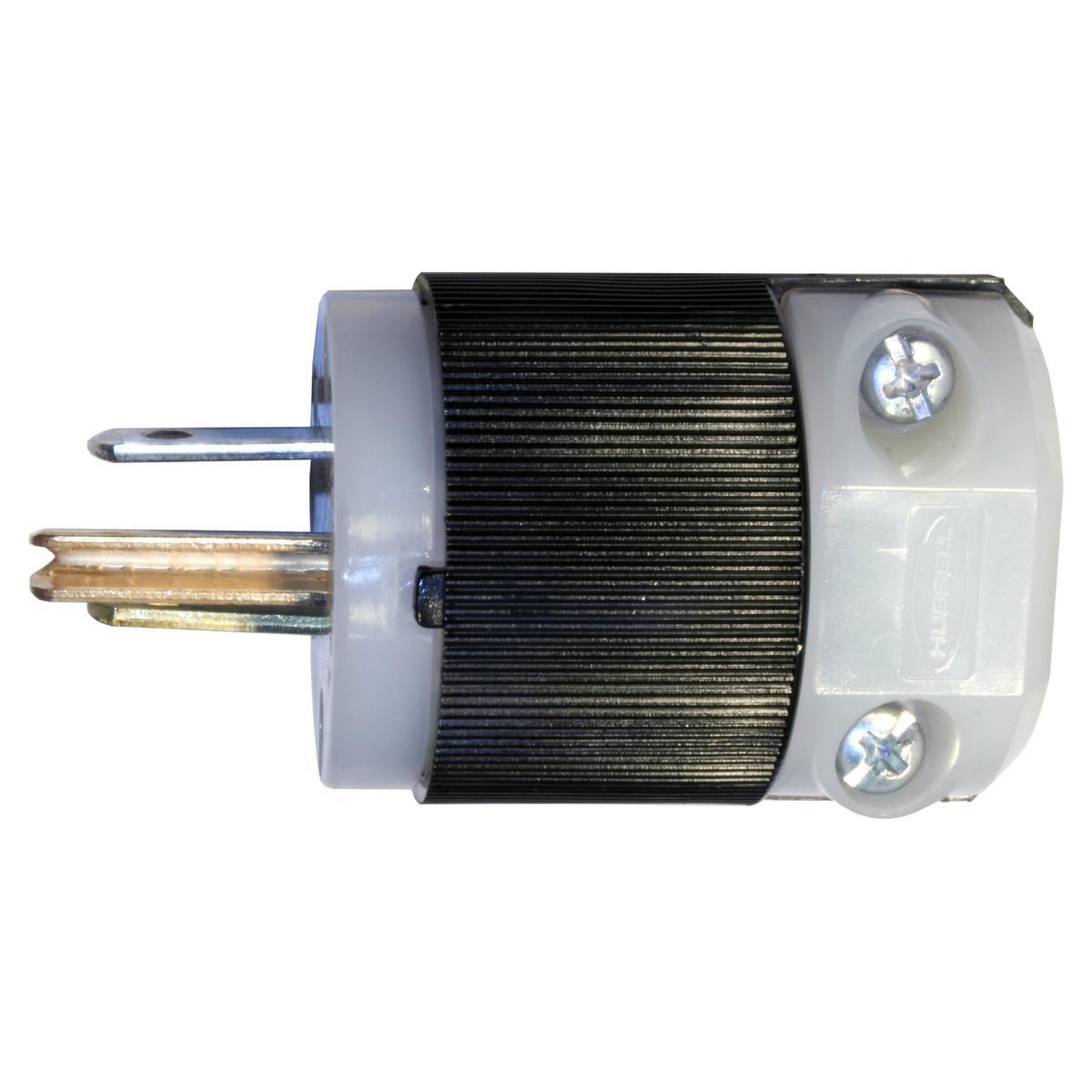

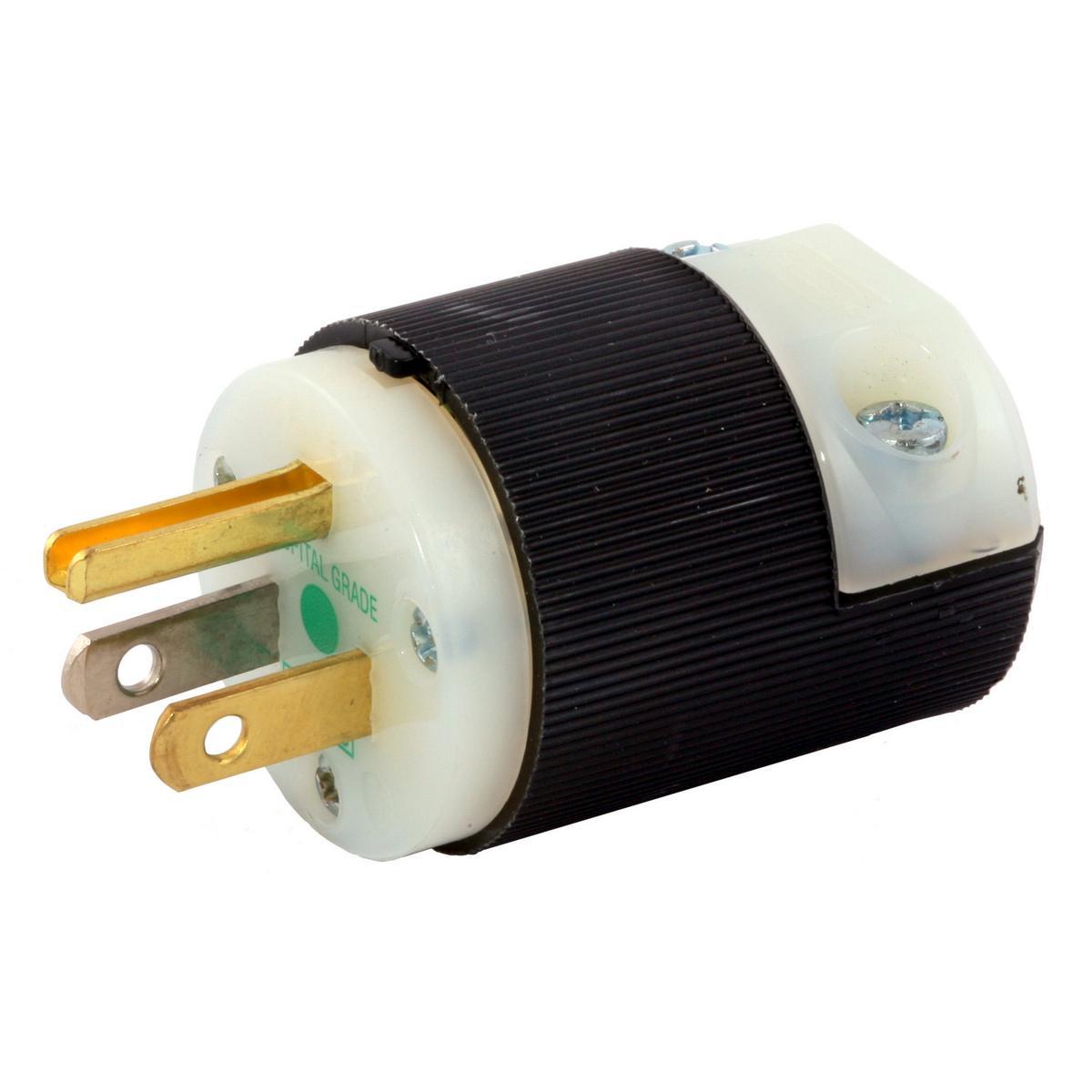

Wiring Device-Kellems HBL8215C Straight Blade Plug 125 VAC 15 A 2 Poles 3 Wires

Product Description

The Wiring Device-Kellems HBL8215C is a straight blade plug designed for standard cord mounting. It operates at 125 VAC and supports a maximum current of 15 A. This plug is suitable for various applications, featuring two poles and three wires for reliable functionality.

• IP20 enclosure rating for moderate protection
• Compatible with cords of diameter between 0.23 to 0.72 inches
• Temperature rated from -40 to 75 degrees Celsius

Product Highlights

This model is hospital-grade and certified for current interrupting at rated capacity. It is designed to withstand demanding environments while ensuring safety and reliability.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Grounding Male Standard Cord Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Horsepower: 1/2 hp
• Number of Poles: 2
• Number of Wires: 3
• Color: Black/White
• Grade: Hospital
• Enclosure: IP20
• Cord Diameter: 0.23 to 0.72 in
• Dimensions: 1.97 x 1.53 x 1.53 in
• Material: Nylon
• NEMA Rating: 5-15P
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
