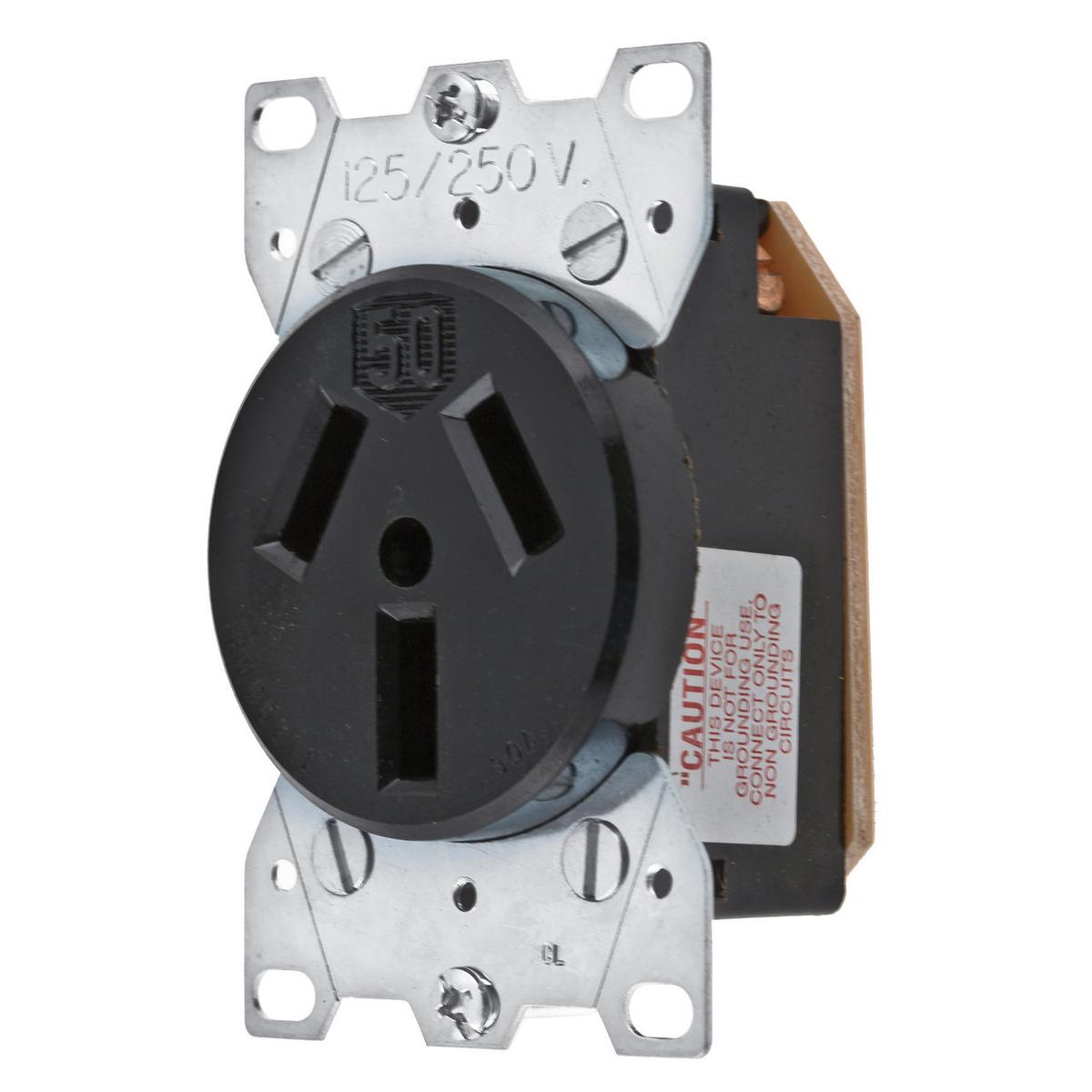

Wiring Device-Kellems HBL7962 1-Phase Heavy Duty Non-Grounding Standard Screw Mount 2-1/4 in W

Product Description

The Wiring Device-Kellems HBL7962 is a 1-phase heavy-duty non-grounding standard screw mount straight blade receptacle. This receptacle is designed to operate at 125/250 VAC with a current rating of 50 A. It features a three-pole, three-wire configuration, suited for industrial applications.

• Operating voltage: 125/250 VAC
• Amperage rating: 50 A
• Temperature rating: -40 to 75 degrees Celsius

Product Highlights

This device is built with a durable thermoplastic material and an IP20 enclosure, making it suitable for various installations. The side wired terminal allows for straightforward connections, and its 10-50R NEMA rating ensures safe usage in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Thermoplastic

Technical Specifications

• Dimensions: 2-1/4 inches wide
• Enclosure: IP20
• Grade: Industrial
• NEMA Rating: 10-50R
• Terminal Type: Side Wired
• Number of Poles: 3
• Number of Wires: 3
• Color: Black
