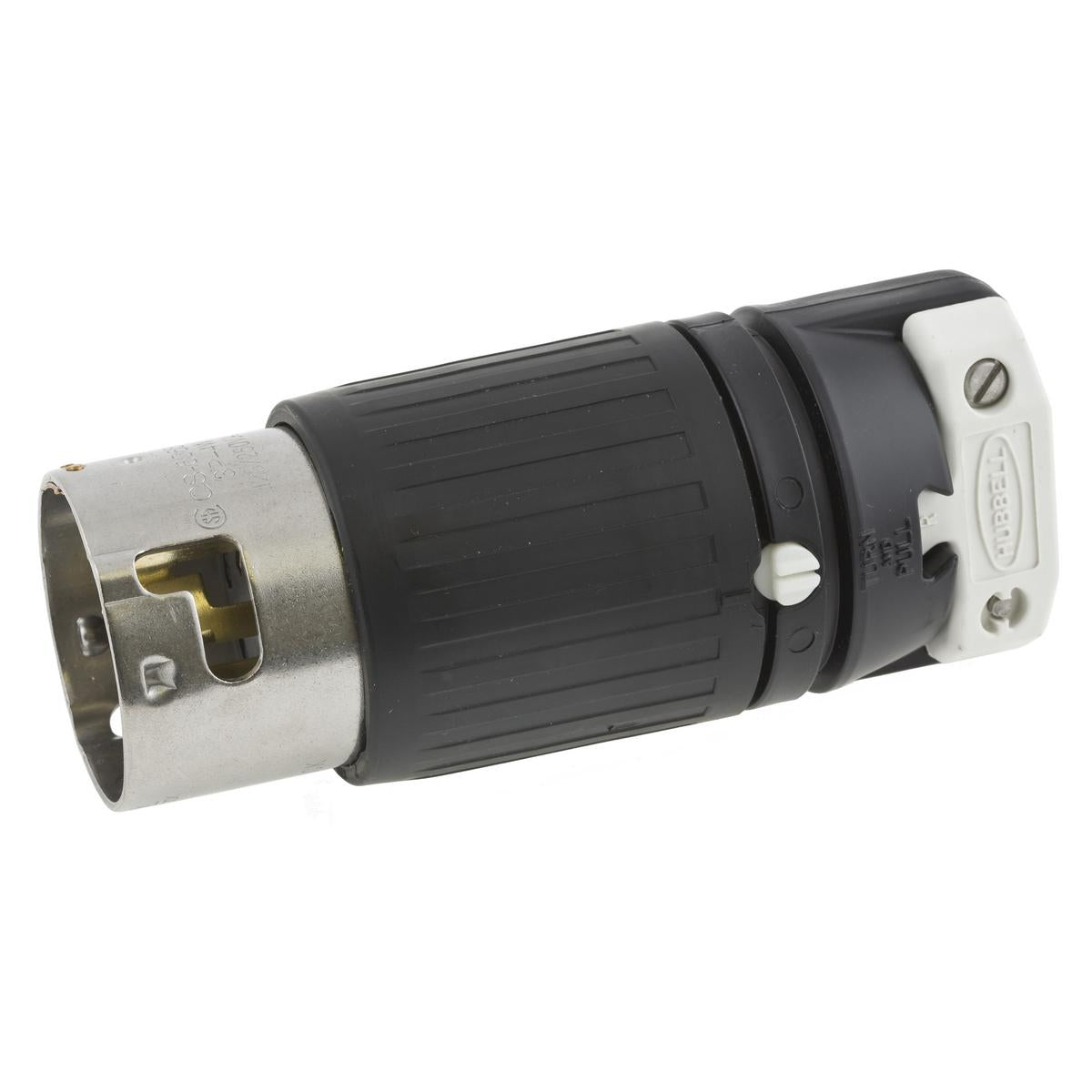

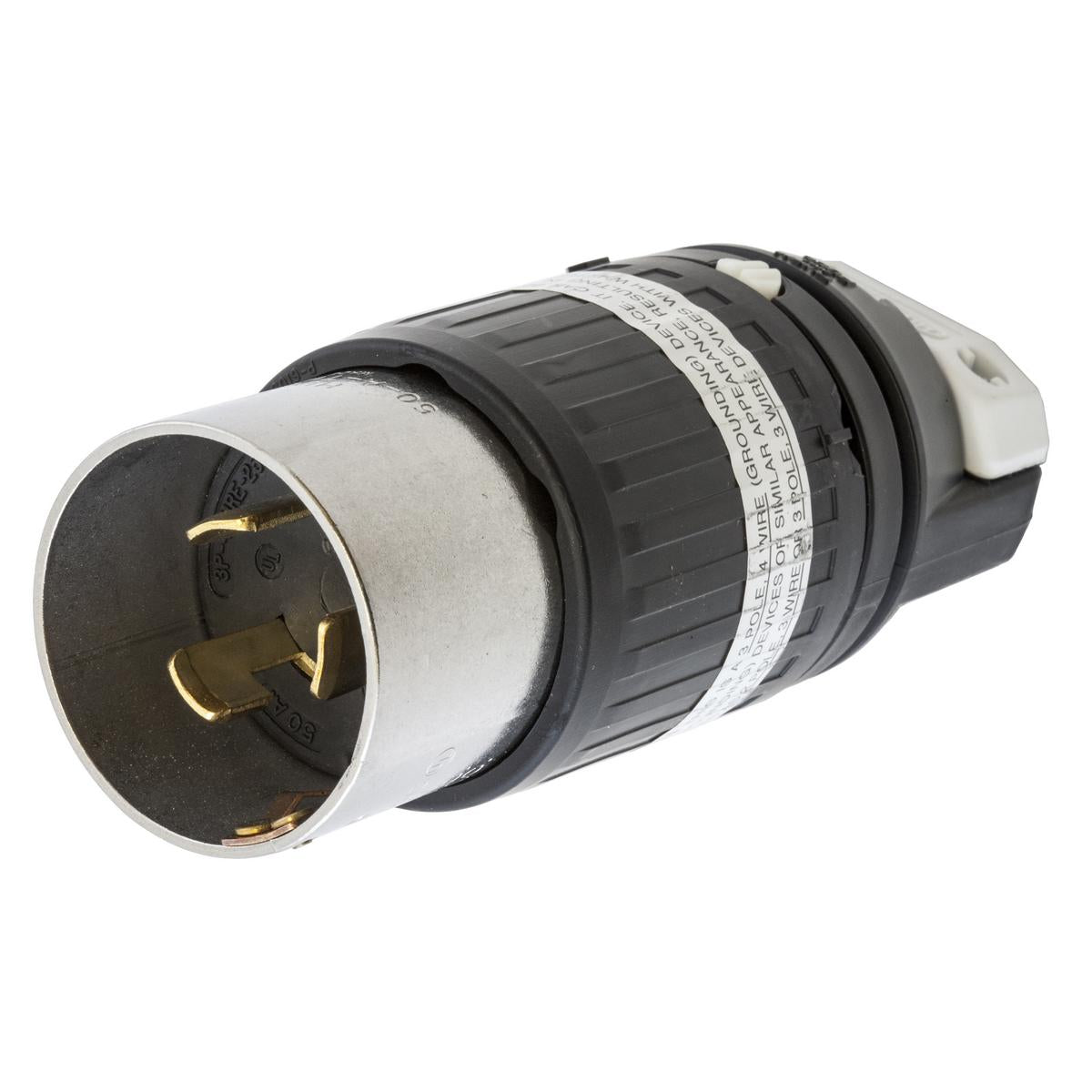

Wiring Device-Kellems HBL7765C 1-Phase Grounding Male Cord Mount Locking Plug

Product Description

The Wiring Device-Kellems HBL7765C is a locking plug designed for 1-phase grounding applications. It supports a voltage rating of 600 VAC and 250 VDC with a maximum current capacity of 50 A. This plug is suitable for use in industrial environments and features a durable IP20 rated enclosure.

• Compatible with cords ranging from 0.83 to 1.25 inches in diameter.
• Constructed of industrial-grade nylon for strength and longevity.
• Temperature rated from -40 to 75 degrees Celsius.

Product Highlights

This locking plug is ideal for applications requiring robust connections and environmental resistance.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Cord Diameter: 0.83 to 1.25 in
• Dimensions: 2.56 x 2.56 x 6.37 in
• Enclosure: IP20
• Grade: Industrial
• Material: Nylon
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: 1-Phase Grounding Male Cord Mount
• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 50 A
• Number of Poles: 3
• Number of Wires: 4
• Color: Black/White
