Wiring Device-Kellems HBL7594 1-Phase Grounding Standard Cord Mount Wiring Device Kellems HBL7594

Product Description

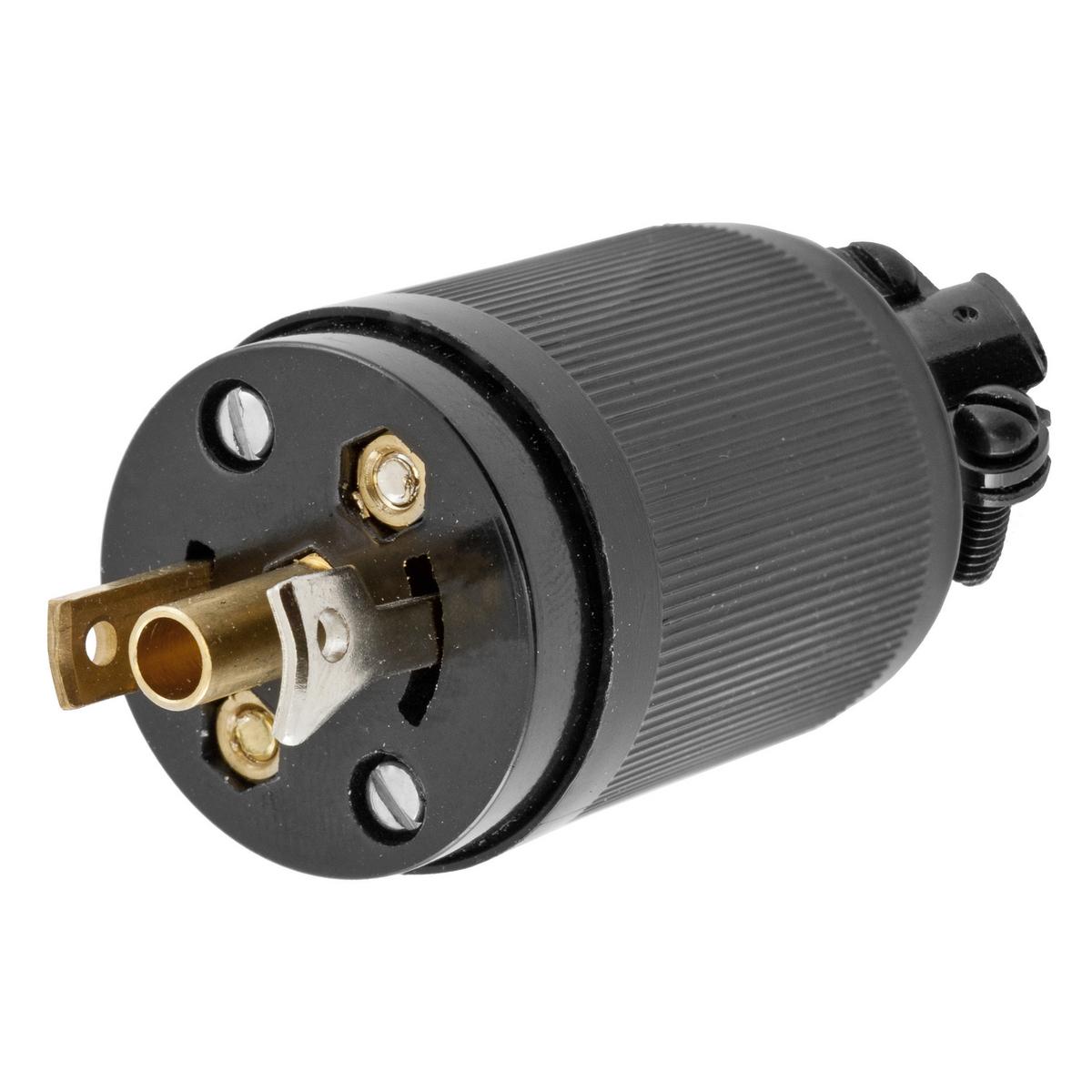

Wiring Device-Kellems HBL7594 is a midget locking plug designed for standard cord mount applications. This model operates at 125 volts AC and 15 amps, featuring two poles and three wires. The plug is suited for various industrial uses and is made from durable nylon. It requires cord diameters of zero point two eight one to zero point four two one inches.

• 125 VAC and 15 A ratings
• IP20 enclosure for dust and moisture protection
• Compatible with cords of diameter from zero point two eight one to zero point four two one inches

Product Highlights

This locking plug ensures a secure connection in demanding environments. It is rated for industrial applications with a temperature range of negative forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Grounding Standard Cord Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Black
• Cord Diameter: 0.281 to 0.421 in
• Dimensions: 1.17 x 1.17 x 2.45 in
• Material: Nylon
• Enclosure: IP20
• NEMA Rating: ML-2P
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Grade: Industrial
