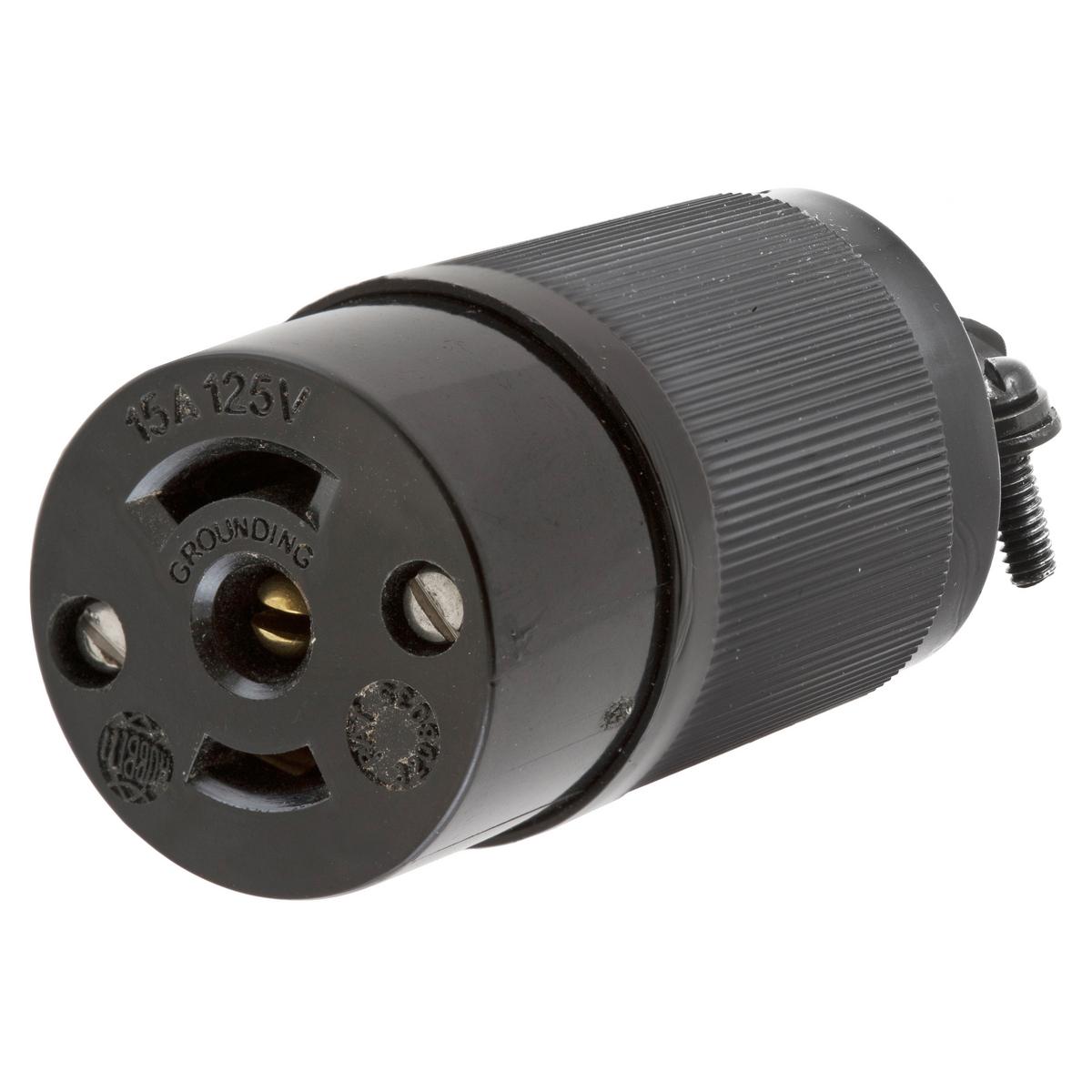

Wiring Device-Kellems HBL7593 Locking Connector Heavy Duty Grounding Cord Mount 125 VAC 15 A

Product Description

The Wiring Device-Kellems HBL7593 is a robust locking connector designed for heavy-duty grounding. It operates at one hundred twenty-five volts alternating current (VAC) and supports a maximum of fifteen amperes. The unit features a two-pole and three-wire design suitable for various applications.

• Heavy duty grounding cord mount
• Industrial-grade nylon construction
• Temperature range from negative forty to seventy-five degrees Celsius

Product Highlights

HBL7593 is ideal for environments requiring durable and reliable electrical connectors. Its solid build ensures safe and consistent performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Series: HBL®

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.281 to 0.421 in
• Dimensions: 1.17 x 1.17 x 2.42 in
• Material: Nylon
• Color: Black
• NEMA Rating: ML-2R
• Enclosure: IP20
• Grade: Industrial
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Type: Heavy Duty Grounding Cord Mount
