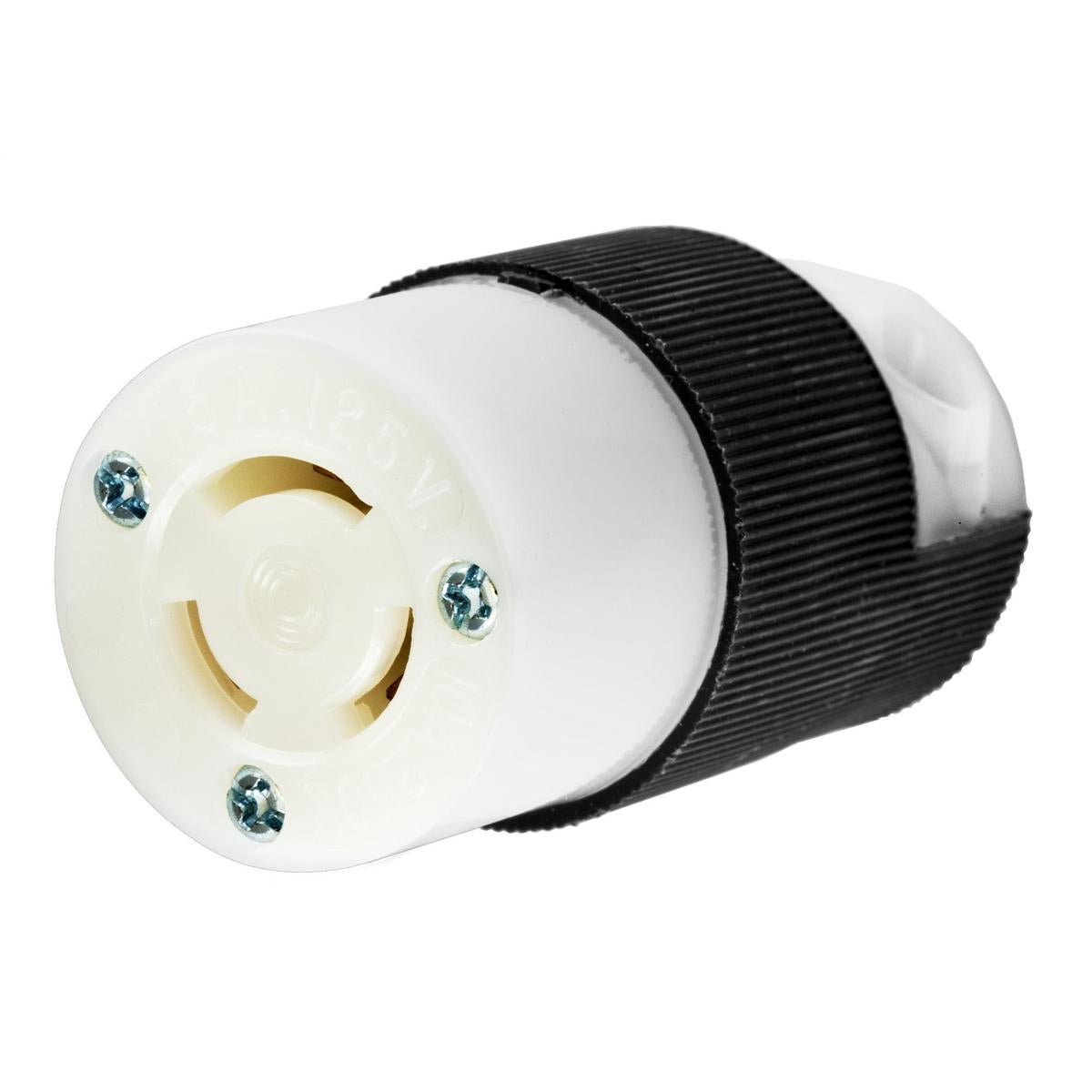

Wiring Device-Kellems HBL7565C Heavy Duty Female Non-Grounding Insulated Standard Cord Mount

Product Description

The Wiring Device-Kellems HBL7565C is a locking connector designed for heavy-duty applications. This connector is a female non-grounding insulated standard cord mount suitable for various industrial uses.

• Rated for 125/250 VAC with a maximum amperage of 10 A.
• Compatible with cords having a diameter between 0.23 to 0.72 inches.
• Made from durable nylon with an industrial-grade design.

Product Highlights

Perfect for contractors and electricians, this locking connector meets the demands of robust environments while ensuring safety and reliability.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: HBL7565C

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 10 A
• Number of Poles: 3
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Enclosure: IP20
• Material: Nylon
• Dimensions: 1.53 x 1.53 x 2.78 inches
• Cord Diameter: 0.23 to 0.72 inches
