Wiring Device-Kellems HBL7465V HBL® 1-Phase Male Non-Grounding Standard Cord Mount Midget Locking Plug, 125 VAC, 15 A, 2 Poles, 2 Wires

Product Description

The Wiring Device-Kellems HBL7465V is a Midget Locking Plug designed for standard cord mounting applications. This device operates at 125 VAC and has a 15 A current rating. It features a durable nylon body and is compliant with NEMA ML-1P standards, making it suitable for various industrial and commercial applications.

• Type: 1-Phase Male Non-Grounding Standard Cord Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A

Product Highlights

This plug is efficient for power connection applications and supports a temperature range from -40 to 75 degrees Celsius. It is ideal for connecting portable equipment in environments that demand reliable electrical performance.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Material: Nylon
• Color: Black
• Enclosure Rating: IP20

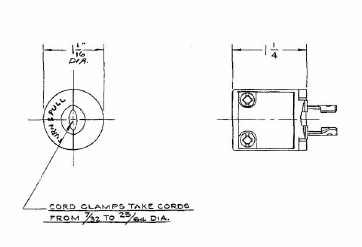

• Dimensions: 1.25 inches x 1.06 inches x 1.06 inches
• Cord Diameter: 0.218 to 0.375 inches
• Number of Wires: 2
• Number of Poles: 2
• Temperature Rating: -40 to 75 degrees Celsius
