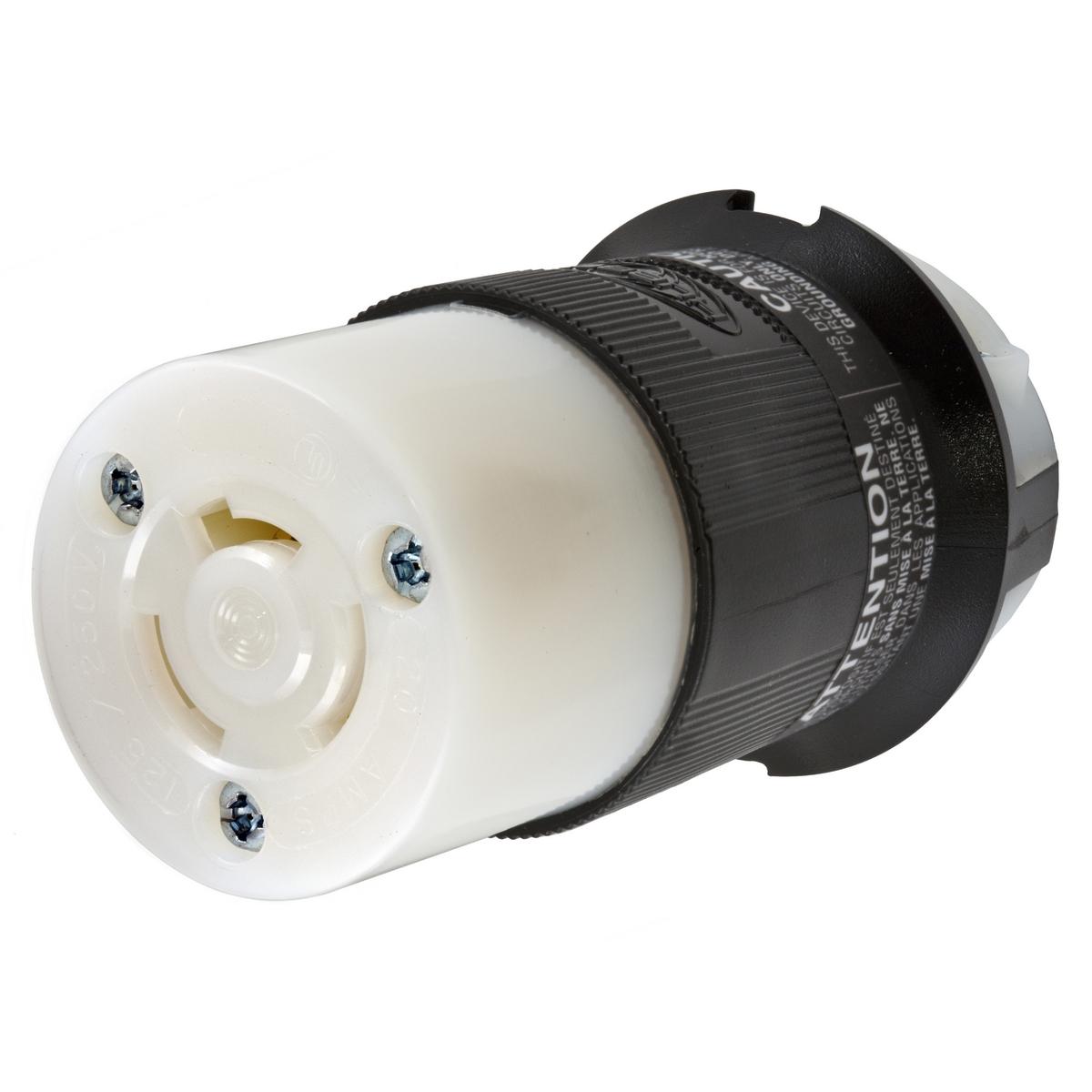

Wiring Device-Kellems HBL7314C Connector 125/250 VAC 20 A (Female Non-Grounding Standard Cord Mount)

Product Description

The Wiring Device-Kellems HBL7314C is a durable connector designed for non-grounding standard cord mounting. This connector operates at a voltage of one hundred twenty-five to two hundred fifty volts AC, with an amperage rating of twenty amps. It features three poles and three wires, making it suitable for various applications in industrial settings.

• Temperature rating from -40 to seventy-five degrees Celsius
• IP20 rated enclosure for dust protection
• Effective pressure screw terminal for secure connections

Product Highlights

This connector is made from industrial-grade nylon for enhanced durability. The design includes a ribbed housing that offers a secure grip and resists impact and chemicals.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: Female Non-Grounding Standard Cord Mount
• Cord Diameter: 0.36 to 0.93 in
• Dimensions: 2.26 x 2.26 x 3.86 in
• Material: Nylon
• Enclosure: IP20
• Voltage Rating: 125/250 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 3
• Color: Black/White
• Grade: Industrial
• Series: HBL®
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
