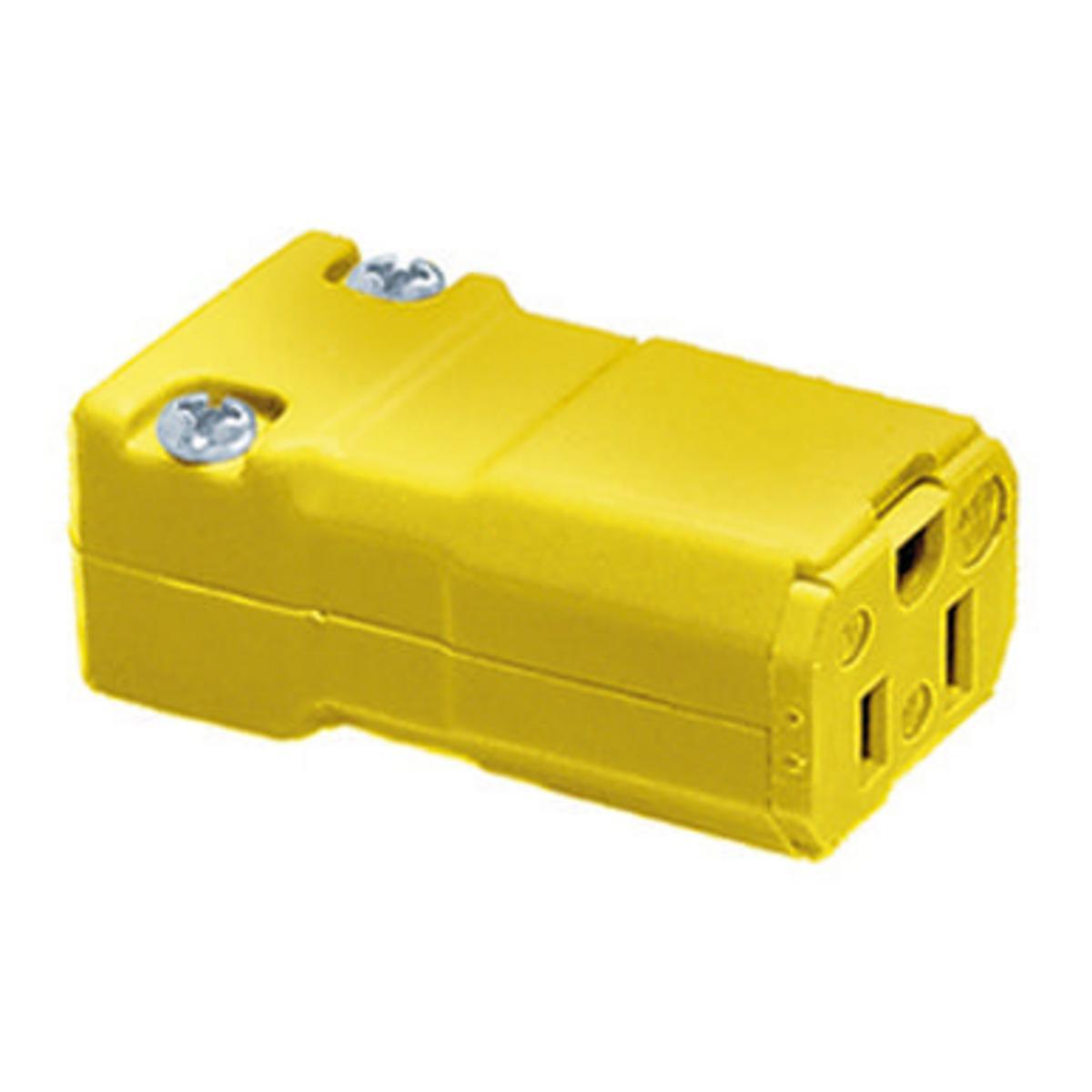

Wiring Device-Kellems HBL5969VY Female Grounding Insulated Cord Mount 125 VAC 15 A 2 Poles 3 Wires

Product Description

The Wiring Device-Kellems HBL5969VY is a female grounding insulated cord mount straight blade connector. This device operates at one hundred twenty-five volts alternating current (VAC) with a current capacity of fifteen amperes (A). It features two poles and three wires, suited for various industrial and commercial applications.

• Designed for easy assembly with a hinged one-piece body
• Supports various cord sizes ranging from 0.22 to 0.66 inches in diameter
• Rated for -40 to 75 degrees Celsius operating temperatures

Product Highlights

This connector is built for durability and efficiency, perfect for commercial and industrial environments.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL5969VY
• Cord Diameter: 0.22 to 0.66 inches
• Dimensions: 2.68 x 1.32 x 2.68 inches
• Enclosure: IP20
• Grade: Commercial/Industrial
• Horsepower: 1/2 hp
• Material: Nylon
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Yellow
