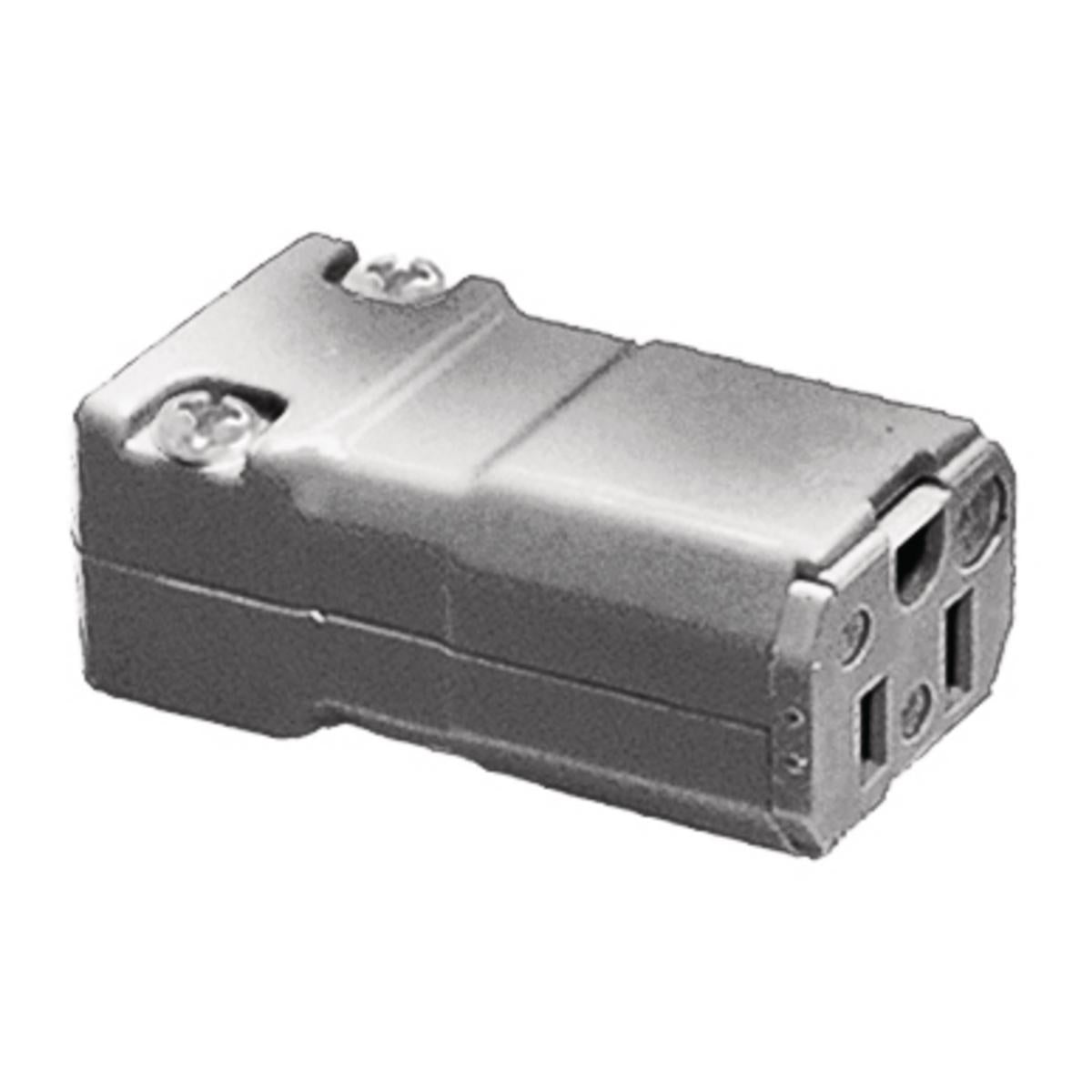

Wiring Device-Kellems HBL5969VGY Female Standard Sized Straight Cord Mount 125 VAC

Product Description

The Wiring Device-Kellems HBL5969VGY is a female standard sized straight cord mount connector. It operates at 125 VAC with a maximum current of 15 A and features two poles and three wires. Ideal for commercial and industrial use, it has a gray nylon body designed for durability.

• Hinged one-piece body design for simple assembly.
• Offsetting cord grips securely clamp on individual conductors.
• Captive assembly screws ensure they do not fall out during wiring.

Product Highlights

This connector is suitable for various applications requiring reliable electrical connections. It meets IP20 specifications and can accommodate cord diameters from zero point twenty-two to zero point sixty-six inches.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 deg C
• Cord Diameter: 0.22 to 0.66 in
• Dimensions: 1-1/4 in W x 1-1/8 in D x 2-5/8 in H
• Material: Nylon
• Enclosure: IP20
• Grade: Commercial/Industrial
• Terminal Type: Screw
