Wiring Device-Kellems HBL5966VY 1-Phase Grounding Portable Standard Cord Mount 125 VAC 15 A NEMA 5-15P

Product Description

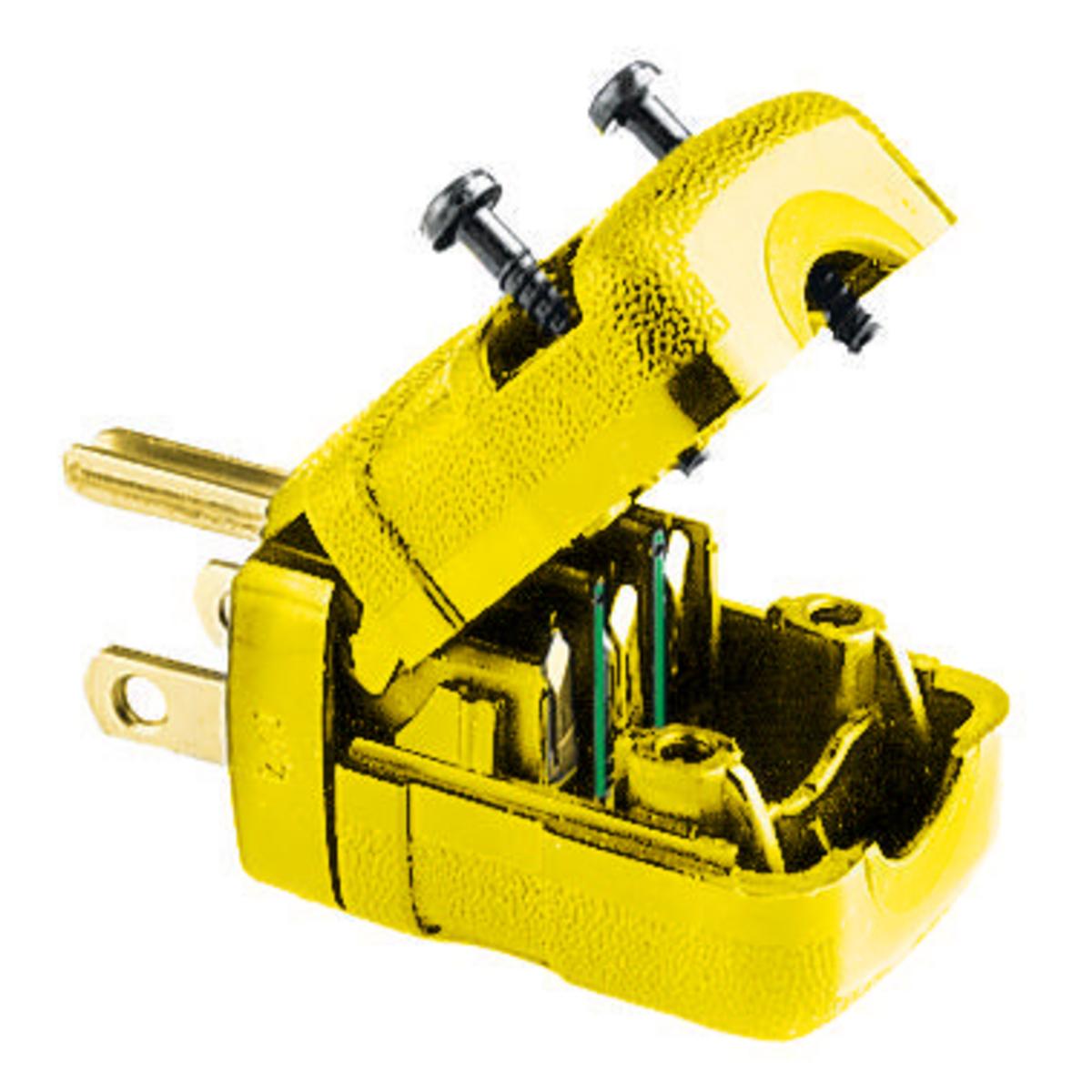

Hubbell HBL5966VY is a wiring device designed for reliable connections and durability. This straight blade plug operates at 125 VAC with a maximum current of 15 A. It is suitable for commercial and industrial applications.

• 1-phase grounding portable standard cord mount
• Easy wiring and assembly process
• Polycarbonate body for toughness

Product Highlights

Ideal for OEMs, this plug features easy assembly and a strong grip for safety.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Cord Diameter: 0.23 to 0.36 in
• Enclosure: IP20
• Grade: Commercial/Industrial
• Horsepower: 2 hp
• Material: Polycarbonate
• NEMA Rating: 5-15P
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: 1-Phase Grounding Portable Standard Cord Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Yellow
