Wiring Device-Kellems HBL5965VY Wiring Device-Kellems Valise 1-Phase Grounding Portable Standard Cord Mount Straight Blade Plug

Product Description

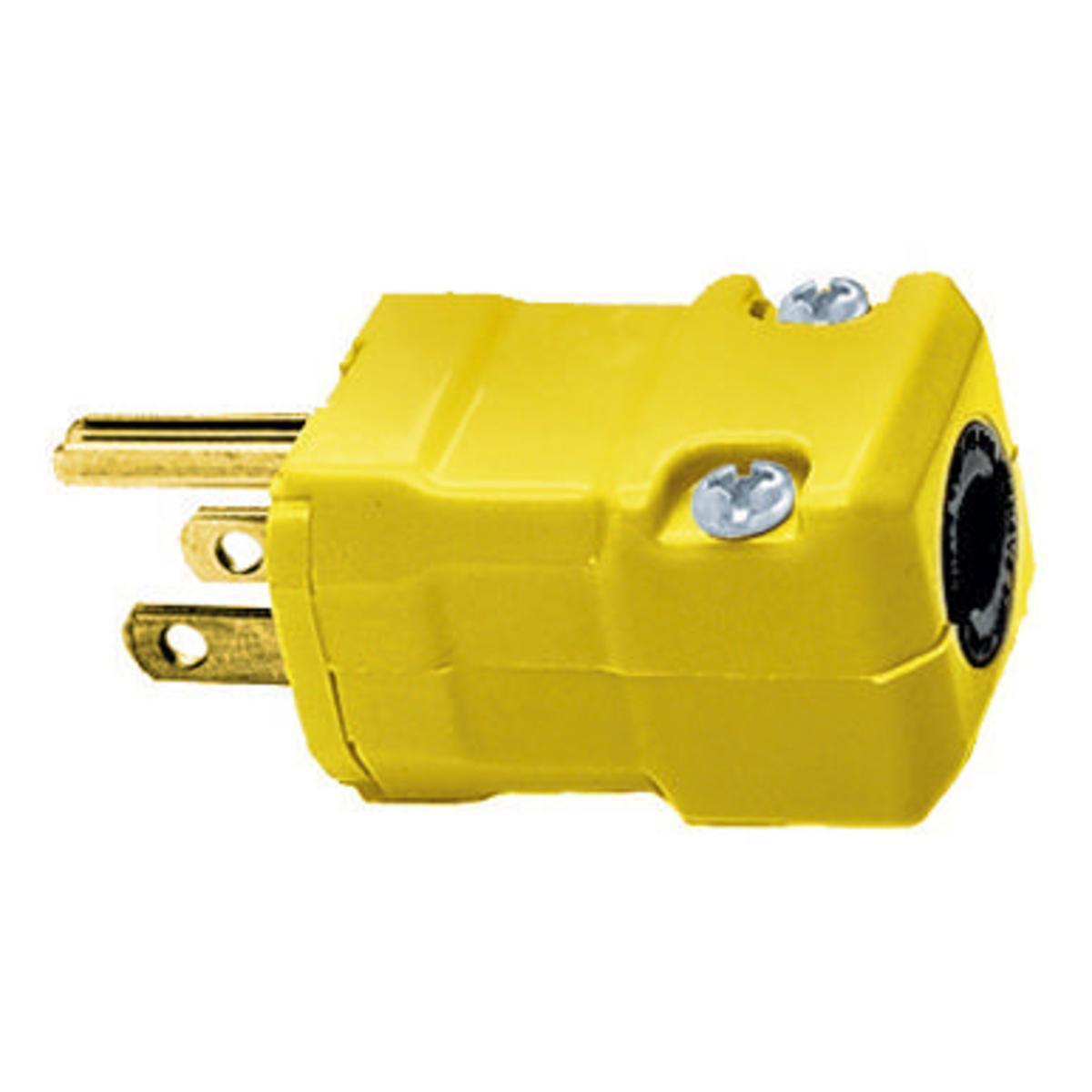

The Wiring Device-Kellems Valise HBL5965VY is a portable standard cord mount straight blade plug. This unit is designed for 1-phase grounding and can handle a voltage of 125 VAC with a current rating of 15 A. It includes two poles and three wires, making it suitable for various commercial and industrial applications.

• Rated for 2 hp horsepower
• Compatible with cords between 0.22 and 0.66 inches in diameter
• Features an IP20 enclosure for dust protection

Product Highlights

This wiring device is built to endure tough conditions and features a screw terminal connection for secure wiring. The casing is made from durable polycarbonate and capable of withstanding extreme temperatures from -40 to 75 degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL5965VY
• Cord Diameter: 0.22 to 0.66 in
• Dimensions: 1.88 x 1.88 x 2.55 in
• Enclosure: IP20
• Grade: Commercial/Industrial
• Horsepower: 2 hp
• Material: Polycarbonate
• NEMA Rating: 5-15P
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Yellow
