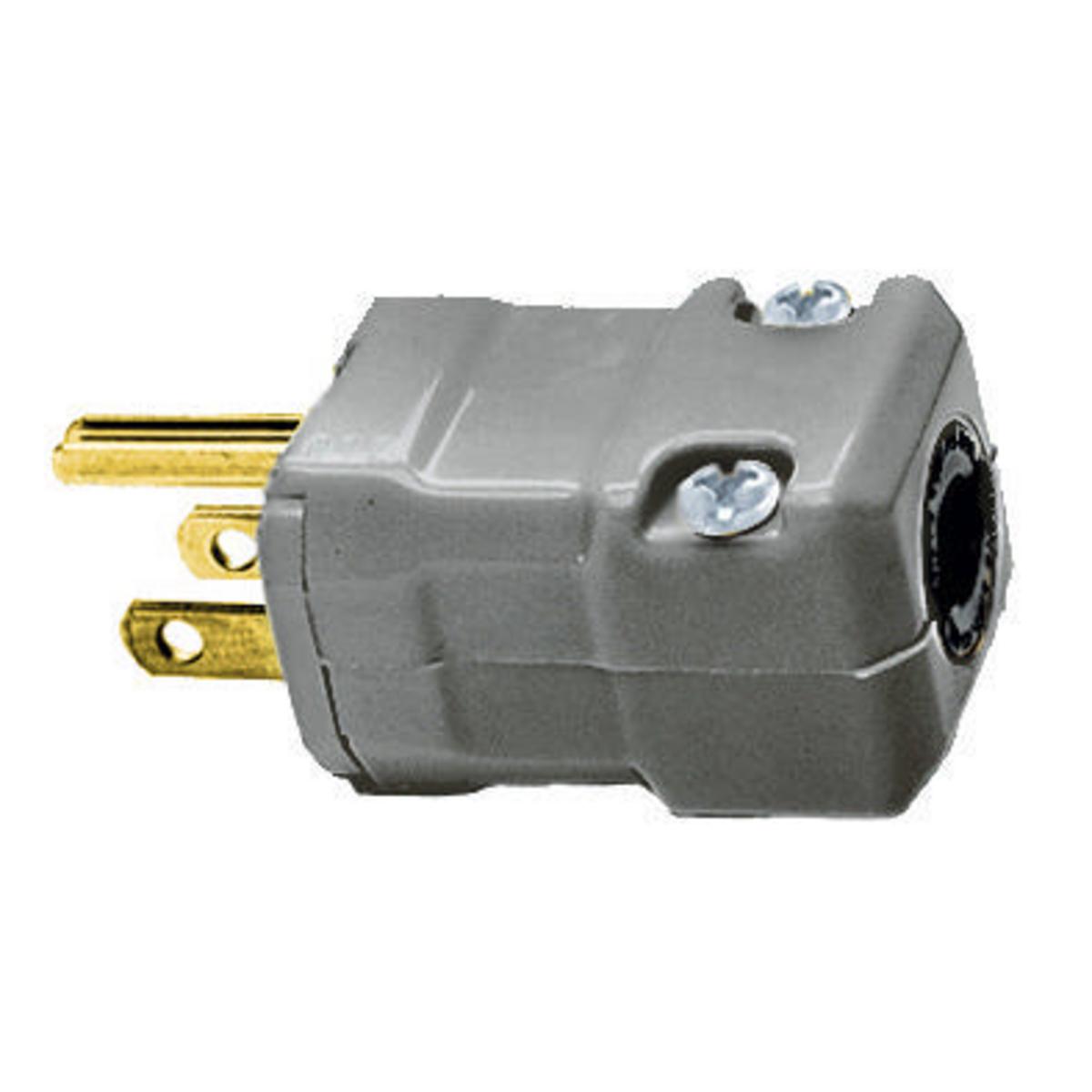

Wiring Device-Kellems HBL5965VGY Standard Grounding Plug 125 VAC 15 A 2 Poles 5-15P

Product Description

The Wiring Device-Kellems HBL5965VGY is a 1-phase grounding male portable standard cord mount straight blade plug. It operates at a voltage of one hundred twenty-five volts alternating current and accommodates a current of fifteen amps. This plug is suitable for various commercial and industrial applications.

• Heavy-duty polycarbonate construction
• IP20 rated enclosure protects against dust and solid objects
• Temperature rated for -40 to 75 degrees Celsius

Product Highlights

This plug features screw terminal connections and is designed for straight blade applications.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Cord Diameter: 0.22 to 0.66 in
• Dimensions: 1-1/4 in W x 1-1/8 in D x 1-7/8 in H
• Enclosure: IP20
• Grade: Commercial/Industrial
• Material: Polycarbonate
• NEMA Rating: 5-15P
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Number of Poles: 2
• Number of Wires: 3
• Color: Gray
