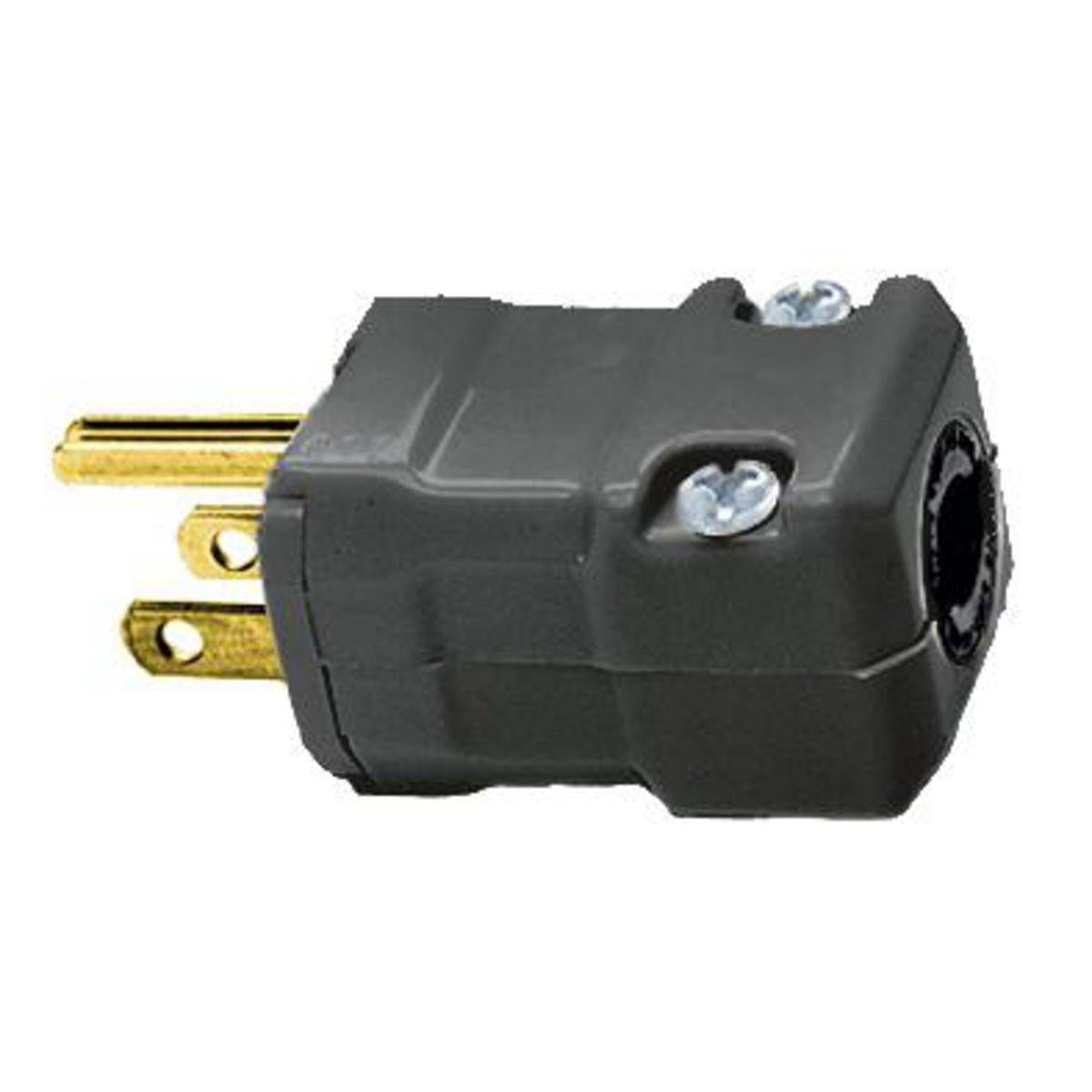

Wiring Device-Kellems HBL5965VBLK 1-Phase Grounding Male Portable Standard Cord Mount 5-15P

Product Description

The Wiring Device-Kellems HBL5965VBLK is a 1-phase grounding male portable standard cord mount straight blade plug. It operates at 125 VAC and has a maximum amperage rating of 15 A. This plug is designed for both commercial and industrial applications and features a robust build suitable for various working conditions.

• Robust performance for OEM applications
• Easy to wire and quick to assemble
• Insulated body for safety

Product Highlights

The HBL5965VBLK plug is ideal for users requiring a reliable and effective connecting device. It features superior cord gripping capabilities and is built to withstand environmental challenges.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Cord Diameter: 0.22 to 0.66 in
• Dimensions: 1.87 x 1.12 x 1.87 in
• Enclosure: IP20
• Grade: Commercial/Industrial
• Horsepower: 2 hp
• Material: Polycarbonate
• NEMA Rating: 5-15P
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
