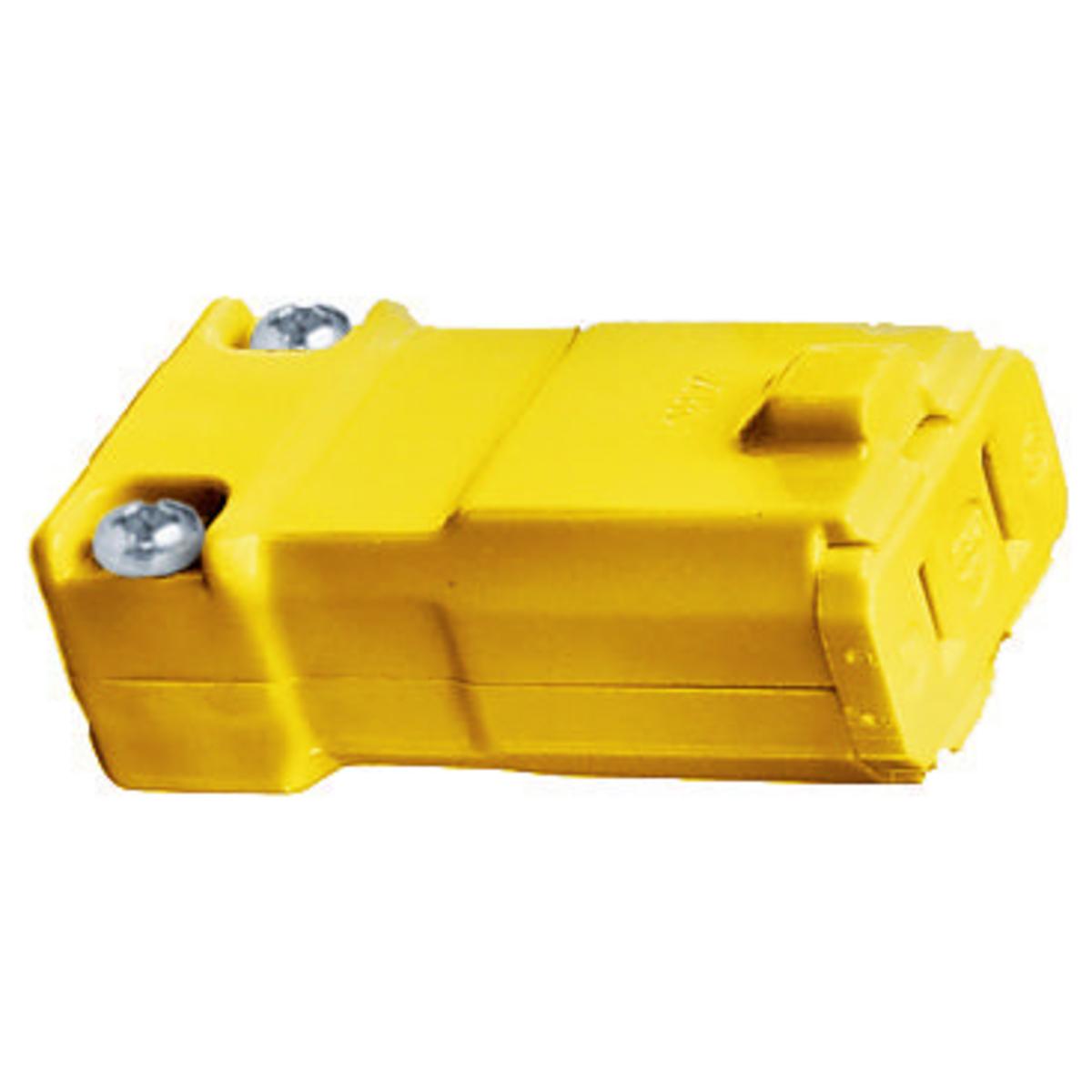

Wiring Device-Kellems HBL5869VY Female Insulated Non-Grounding Cord Mount 125 VAC 15 A 1-15R

Product Description

The Wiring Device-Kellems HBL5869VY is a female insulated non-grounding cord mount straight blade connector designed for reliable electrical connections. This connector operates at 125 VAC and 15 A with a 1/2 hp rating. It features a sturdy construction for use in commercial and industrial applications.

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• NEMA Rating: 1-15R

Product Highlights

This product is built with a hinged one-piece body design that provides easy assembly. The product includes two captive multiple drive assembly screws for secure installation and features powerful cord grips that prevent conductor slippage and strain.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Cord Diameter: 0.218 to 0.385 in
• Dimensions: 2.38 x 1.25 x 0.88 in
• Enclosure: IP20
• Grade: Commercial/Industrial
• Horsepower: 1/2 hp
• Material: Nylon
• NEMA Rating: 1-15R
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: Female Insulated Non-Grounding Cord Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 2
• Color: Yellow
