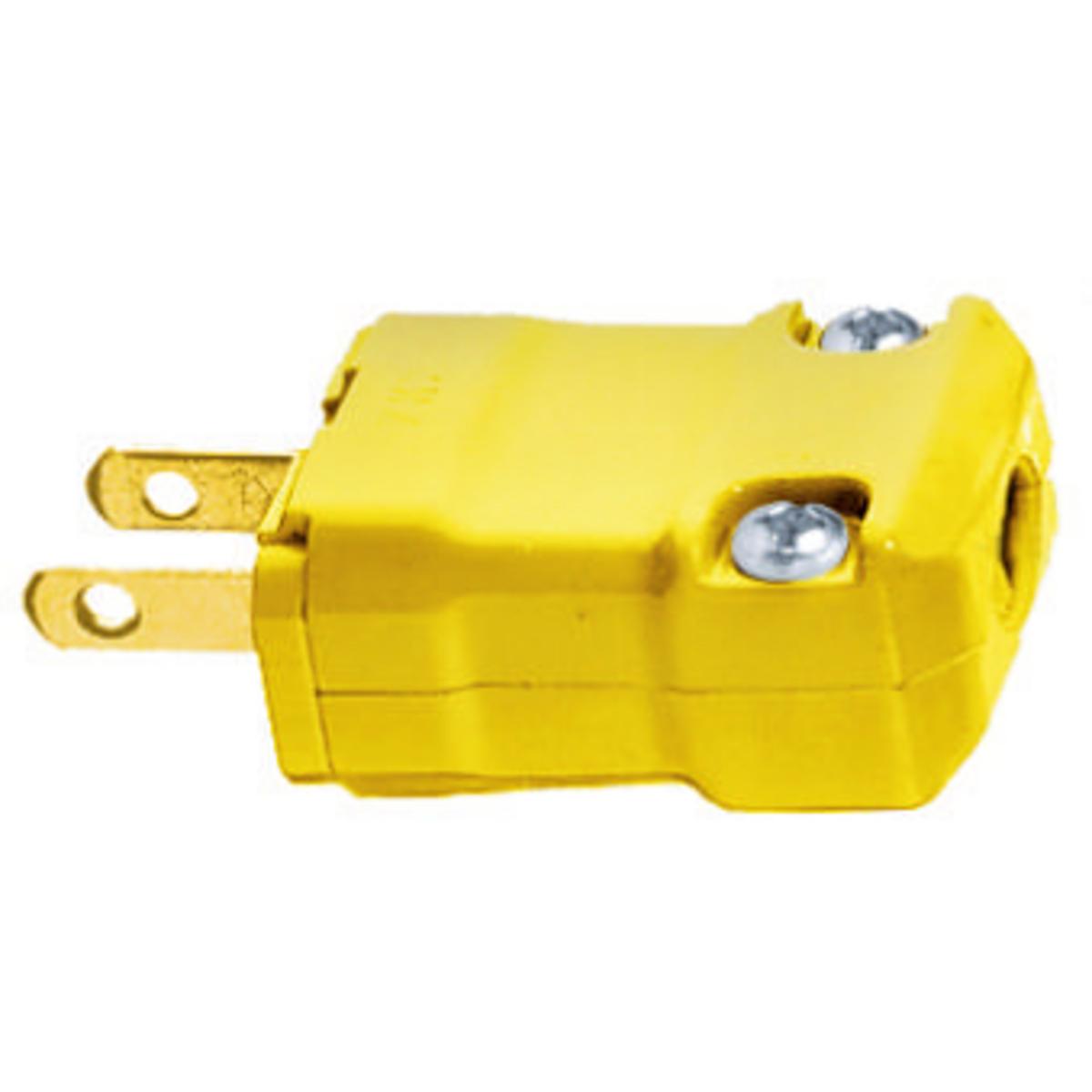

Wiring Device-Kellems HBL5866VY 1-Phase Grounding Portable Standard Cord Mount 125 VAC 15 A 1-15P

Product Description

The Wiring Device-Kellems HBL5866VY is a straight blade plug designed for 1-phase grounding. This portable standard cord mount device operates at a voltage rating of one hundred twenty-five VAC and has a current rating of fifteen A. It features two poles and two wires, suitable for various electrical applications.

• Certified for current interrupting at full rated current
• Withstands a dielectric voltage of two thousand VAC
• IP20 rated enclosure for protection

Product Highlights

This plug is intended for commercial and industrial use, constructed from composite material for durability. It has a temperature rating from negative forty to seventy-five degrees Celsius, making it suitable for a wide range of environments.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL5866VY
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 2
• Cord Diameter: 0.218 to 0.385 in
• Dimensions: 1.68 x 1.25 x 0.88 in
• Enclosure: IP20
• Grade: Commercial/Industrial
• Horsepower: 1/2 hp
• Material: Composite
• NEMA Rating: 1-15P
• Terminal Type: Screw
• Temperature Rating: -40 to 75 degrees C
