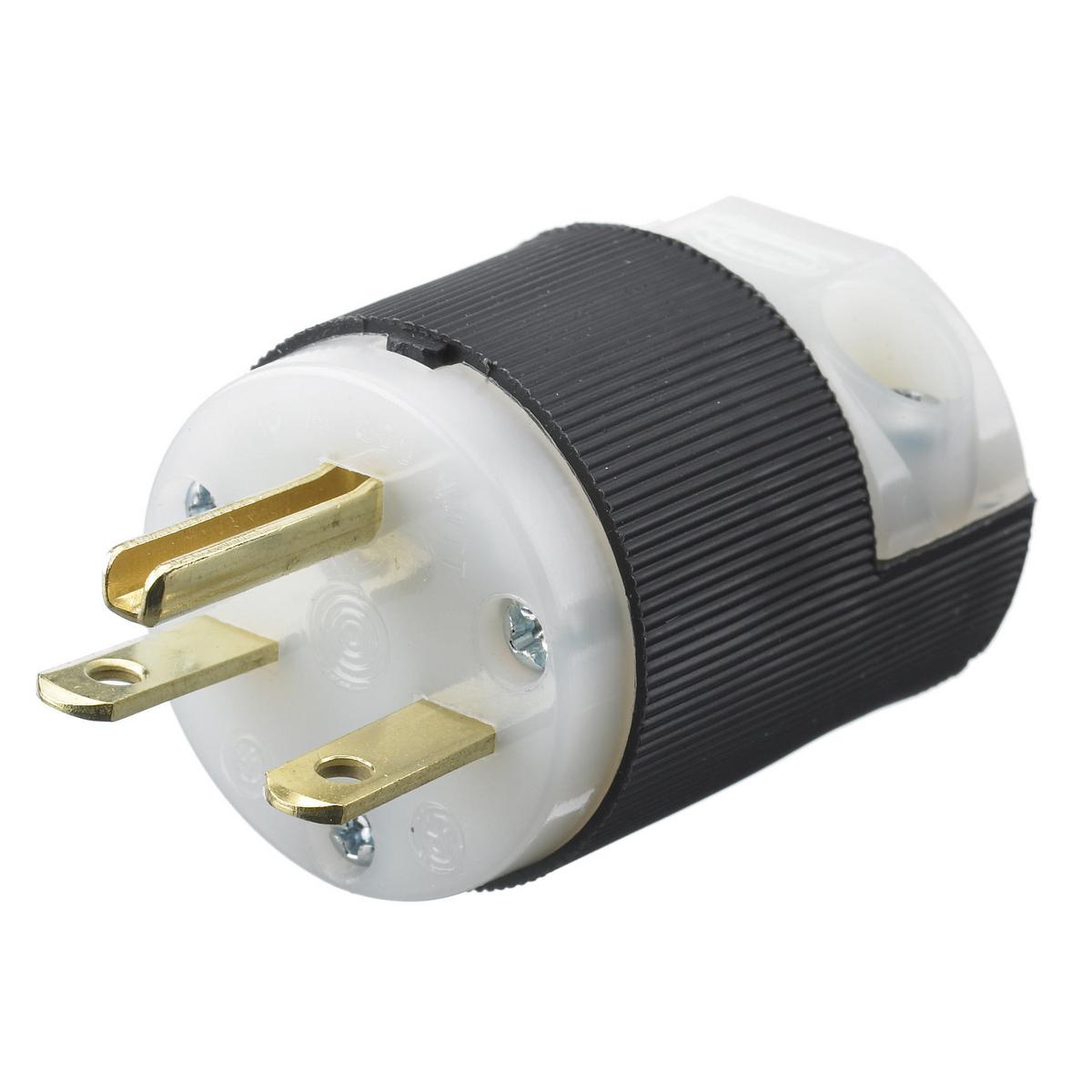

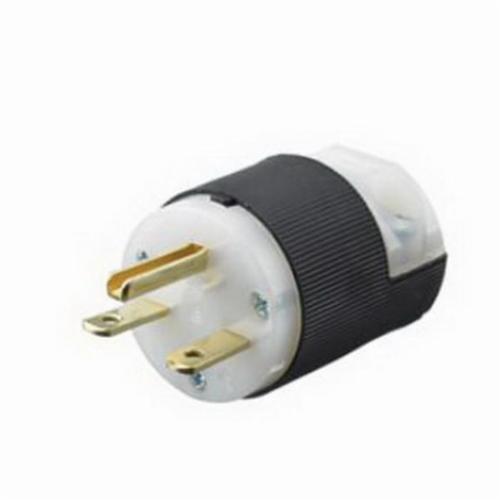

Wiring Device-Kellems HBL5666C 1-Phase Impact and Chemical Resistant Grounding Male Portable Standard Cord Mount

Product Description

The Wiring Device-Kellems HBL5666C is a straight blade plug designed for robust applications. It operates at 250 VAC with a maximum of 15 A. This plug features a 1-phase impact and chemical resistant grounding male portable standard cord mount configuration. The compact size allows it to fit various applications.

• Impact and chemical resistance
• Suitable for commercial and industrial use
• IP20 enclosure for added protection

Product Highlights

This plug is built to withstand harsh environments while providing reliable connectivity.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 15 A
• Horsepower: 2 hp
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.23 to 0.72 in
• Dimensions: 1.97 x 1.53 x 1.53 in
• Temperature Rating: -40 to 75 deg C
• Material: Composite
• Color: Black/White
• NEMA Rating: 6-15P
• Terminal Type: Screw
• Enclosure: IP20
• Grade: Commercial/Industrial
