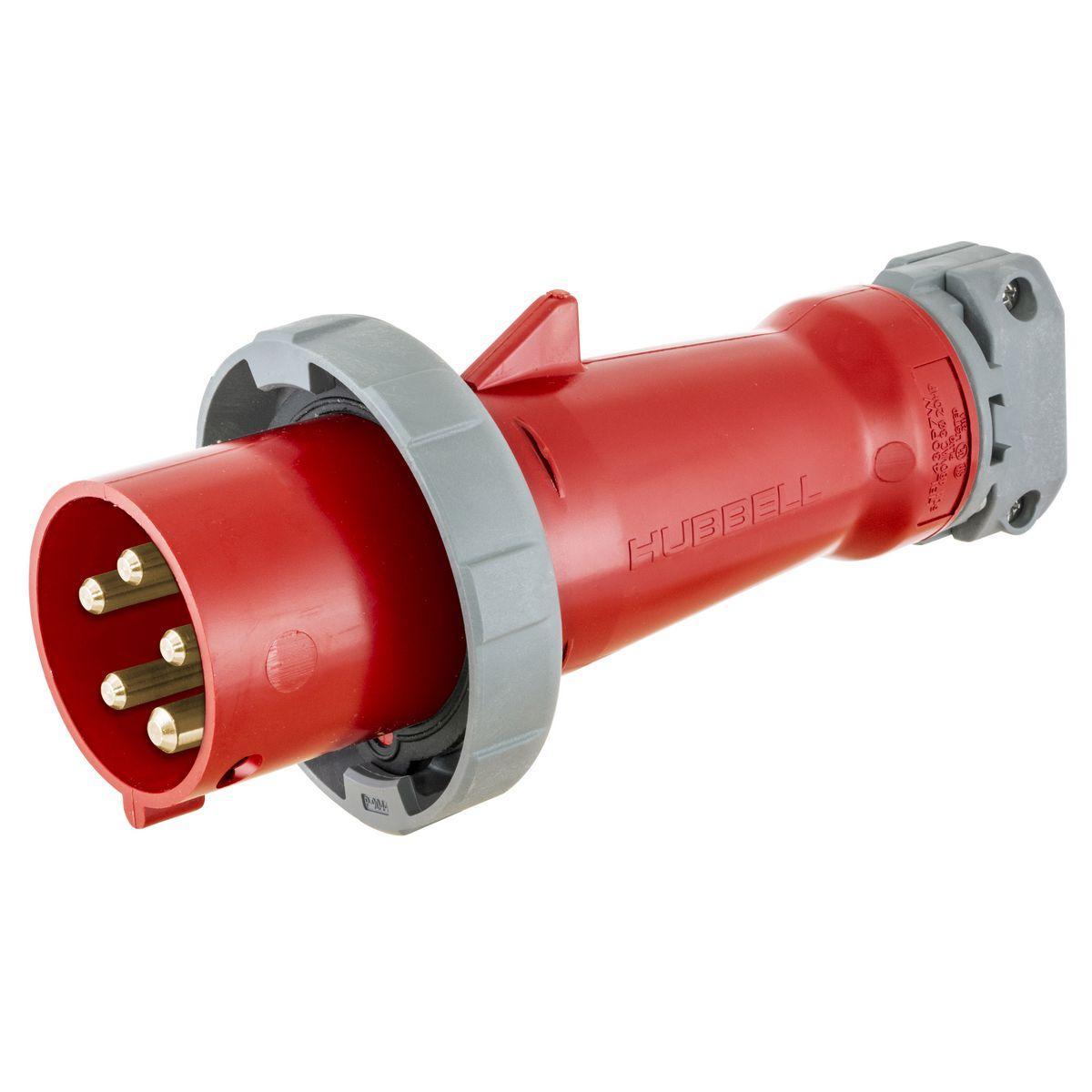

Wiring Device-Kellems HBL560P7W 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount

Product Description

The Wiring Device-Kellems HBL560P7W is a 3-phase grounding heavy-duty male non-NEMA portable standard watertight cord mount pin and sleeve plug. It operates at a voltage of 277/480Y VAC and has a current rating of sixty amps. The plug features four poles and five wires, making it ideal for various industrial applications.

• Durable construction for impact and chemical resistance.
• IP67 rated enclosure ensures water and dust protection.
• Temperature range from negative forty to seventy-five degrees Celsius.

Product Highlights

This plug is built with a one-piece non-metallic housing that provides strong protection. It includes solid one-piece pins for reliable electrical contact. A gasketed sealing ring offers a watertight seal when paired with connectors, ensuring safety and performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 4.49 in Dia x 10.15 in L
• Enclosure: IP67
• Grade: Industrial
• Horsepower: 10 hp
• Material: Composite
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount
• Voltage Rating: 277/480Y VAC
• Amperage Rating: 60 A
• Number of Poles: 4
• Number of Wires: 5
• Color: Red
