Wiring Device-Kellems HBL5469C Insulgrip Straight Blade Connector 250 VAC 20 A 2 Poles 3 Wires

Product Description

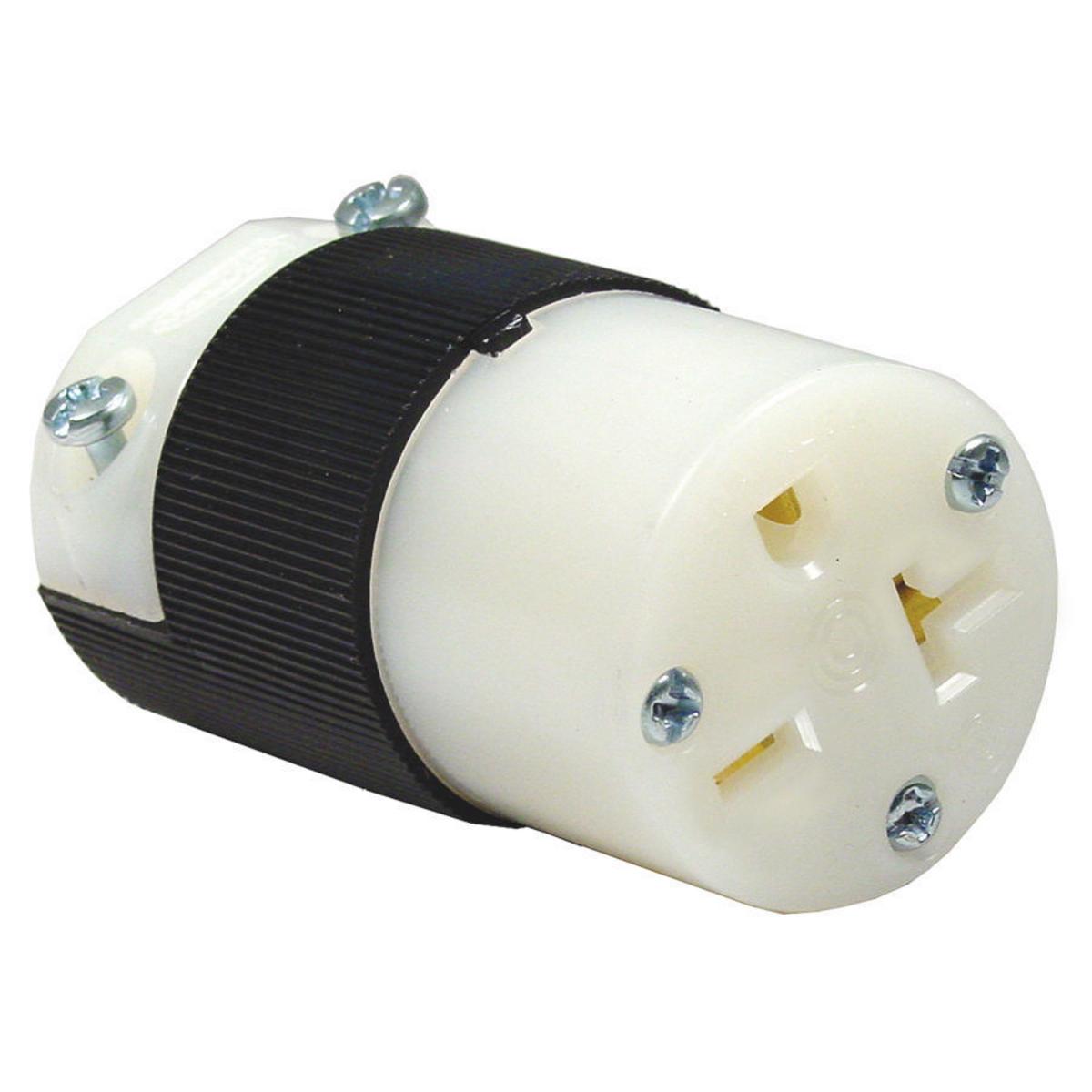

The Wiring Device-Kellems HBL5469C is a female grounding insulated cord mount straight blade connector. It operates on a voltage of 250 VAC and has a current rating of 20 A. This connector features a 6-20R NEMA rating and is ideal for commercial and industrial applications.

• Enclosed individual wiring terminals
• Compatible with 0.23 to 0.72 inches diameter cord
• Temperature range of -40 to 75 degrees Celsius

Product Highlights

The device is designed for durability and safety. It withstands a minimum dielectric voltage of 2000 VAC and accommodates copper conductor terminals from 18 to 10 AWG.

Product Information

Standard Information

• Manufacturer: Hubbell
• Grade: Commercial/Industrial

Technical Specifications

• Type: Female Grounding Insulated Cord Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Horsepower: 2 hp
• Number of Poles: 2
• Number of Wires: 3
• Material: Nylon
• Color: Black/White
• Cord Diameter: 0.23 to 0.72 in
• Dimensions: 2.78 x 1.53 x 1.53 in
• Enclosure: IP20
• NEMA Rating: 6-20R
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
