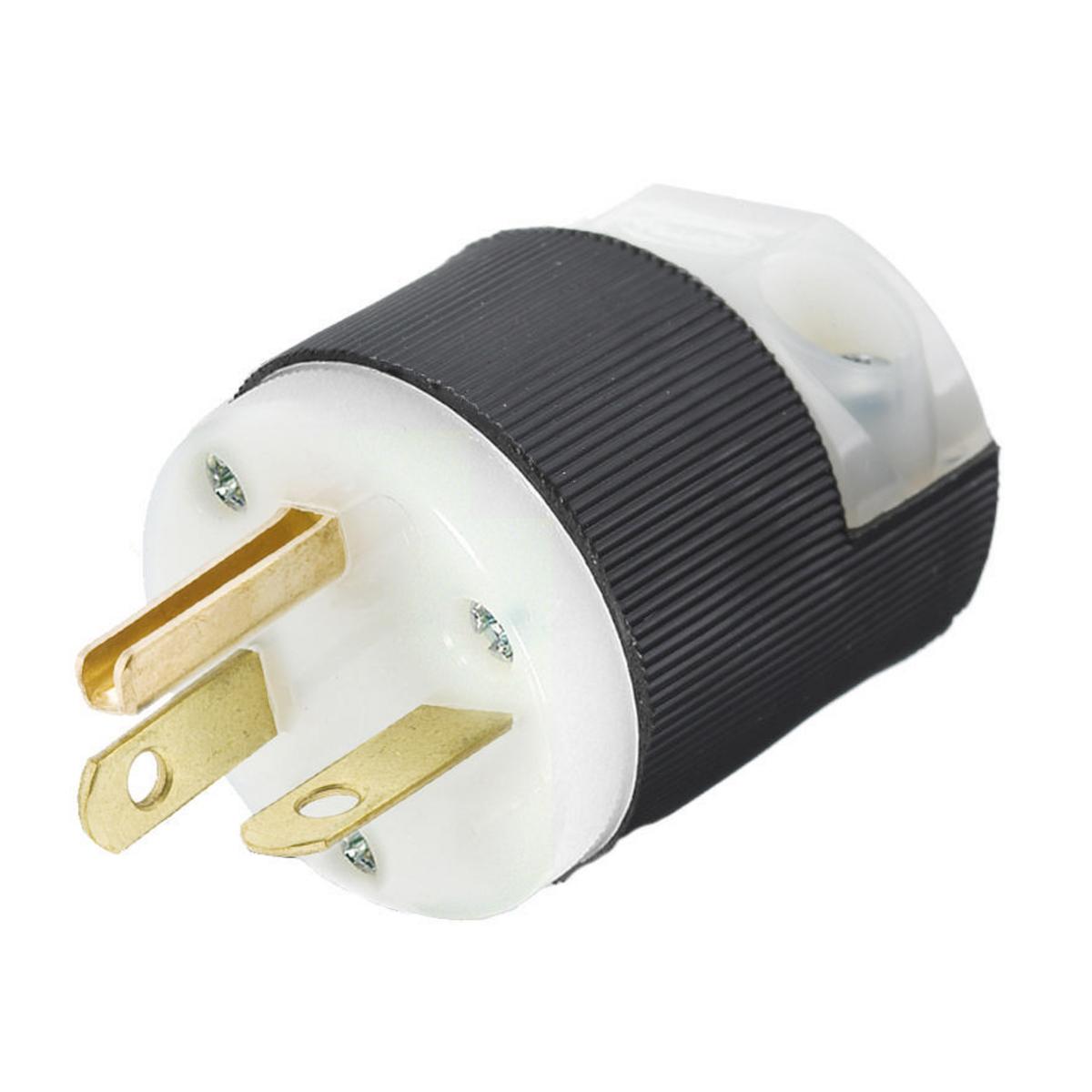

Wiring Device-Kellems HBL5466C standard cord mount plug 250 VAC 20 A 6-20P

Product Description

Wiring Device-Kellems HBL5466C is a durable straight blade plug designed for portable applications. It operates at 250 VAC and is rated for 20 A, making it suitable for various commercial and industrial uses.

• 1-phase impact and chemical resistant.
• Features screw terminal for easy connectivity.
• Designed to accommodate cord diameters from 0.23 to 0.72 inches.

Product Highlights

This plug is designed for reliability and safety, functioning well in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Rating: 250 VAC, 20 A

Technical Specifications

• Type: 1-phase impact and chemical resistant grounding portable standard cord mount
• Horsepower: 2 hp
• Enclosure: IP20
• Material: Composite
• NEMA Rating: 6-20P
• Temperature Rating: -40 to 75 deg C
• Cord Diameter: 0.23 to 0.72 in
• Dimensions: 1.97 x 1.53 x 1.53 in
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Black/White
