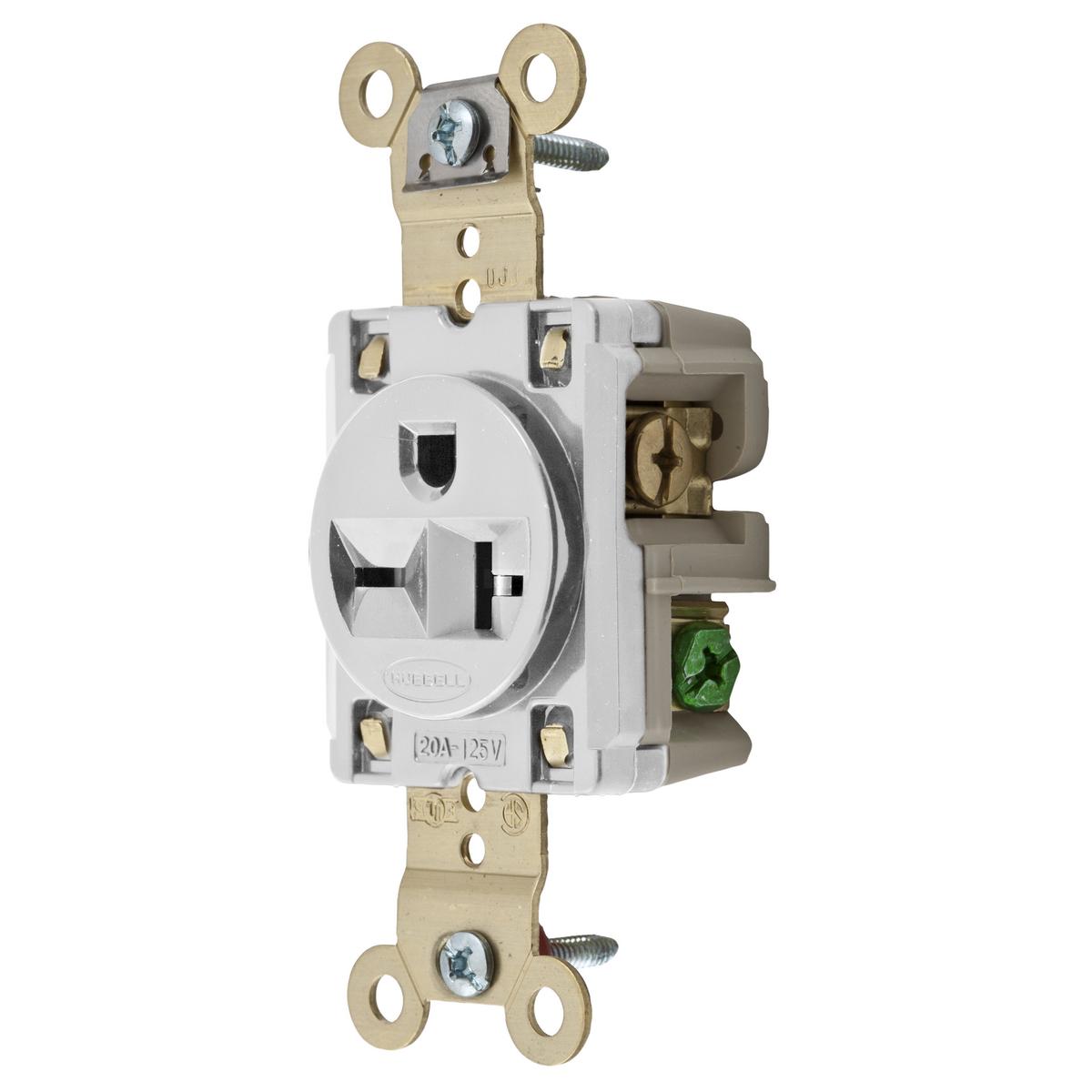

Wiring Device-Kellems HBL5461W 1-Phase Heavy Duty Single Self-Grounding Screw Mount 250 VAC 20 A 6-20R

Product Description

Wiring Device-Kellems HBL5461W is a straight blade receptacle designed for heavy duty applications. This unit features a 1-phase design with a self-grounding screw mount. Operating at 250 VAC and rated for 20 A, this receptacle is suitable for various industrial settings.

• Durable thermoplastic/composite construction
• Accommodates 14 to 10 AWG solid or stranded copper conductors
• Temperature rated from -40 to 75 degrees Celsius

Product Highlights

This receptacle is ideal for indoor use unless additional protection is used. It complies with NEMA 6-20R standards, making it a reliable choice for electricians.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 3.28 x 1.63 x 1.19 inches
• Grade: Industrial
• Horsepower: 2 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 6-20R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Back and Side Wire/Screw
• Type: 1-Phase Heavy Duty Single Self-Grounding Screw Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: White
