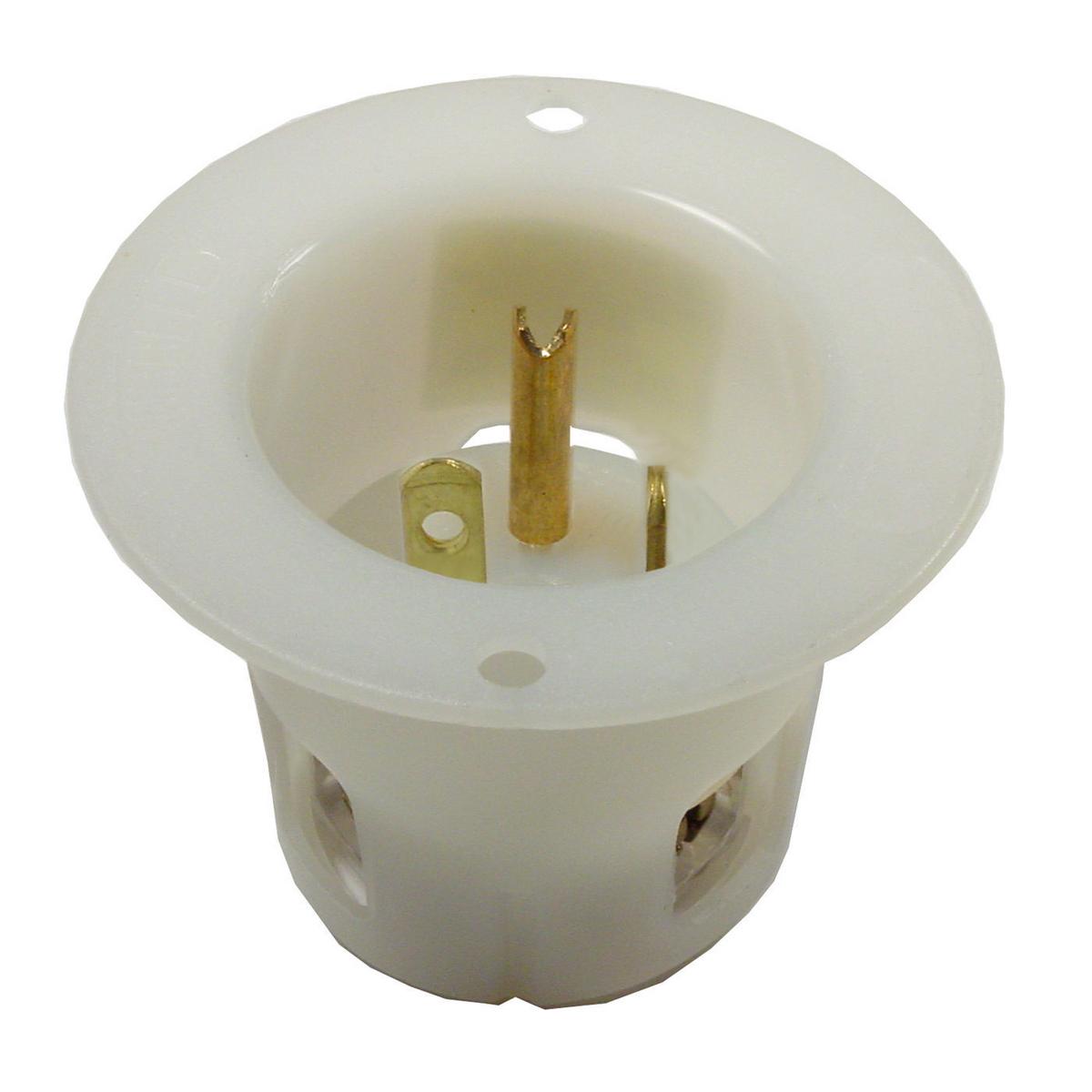

Wiring Device-Kellems HBL5378C 1-Phase Extra Heavy Duty Male Grounding Screw Mount

Product Description

The Wiring Device-Kellems HBL5378C is a male grounding screw mount straight blade flanged inlet. This device operates at 125 VAC and is rated for 20 A and one horsepower. It features two poles and three wires, with a NEMA rating of 5-20P. Constructed with industrial-grade nylon, it meets operating temperatures from -40 to 75 degrees Celsius.

• Heavy-duty male grounding screw mount
• Rated for 125 VAC, 20 A
• Durable nylon construction for tough environments

Product Highlights

This wiring device is designed for a variety of industrial applications requiring reliable electrical connections.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: HBL5378C

Technical Specifications

• Type: 1-Phase Extra Heavy Duty Male Grounding Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20P
• Temperature Rating: -40 to 75 deg C
• Material: Nylon
• Dimensions: 1.71 x 1.69 x 1.71 in
• Terminal Type: Back and Side Wire/Screw
• Grade: Industrial
