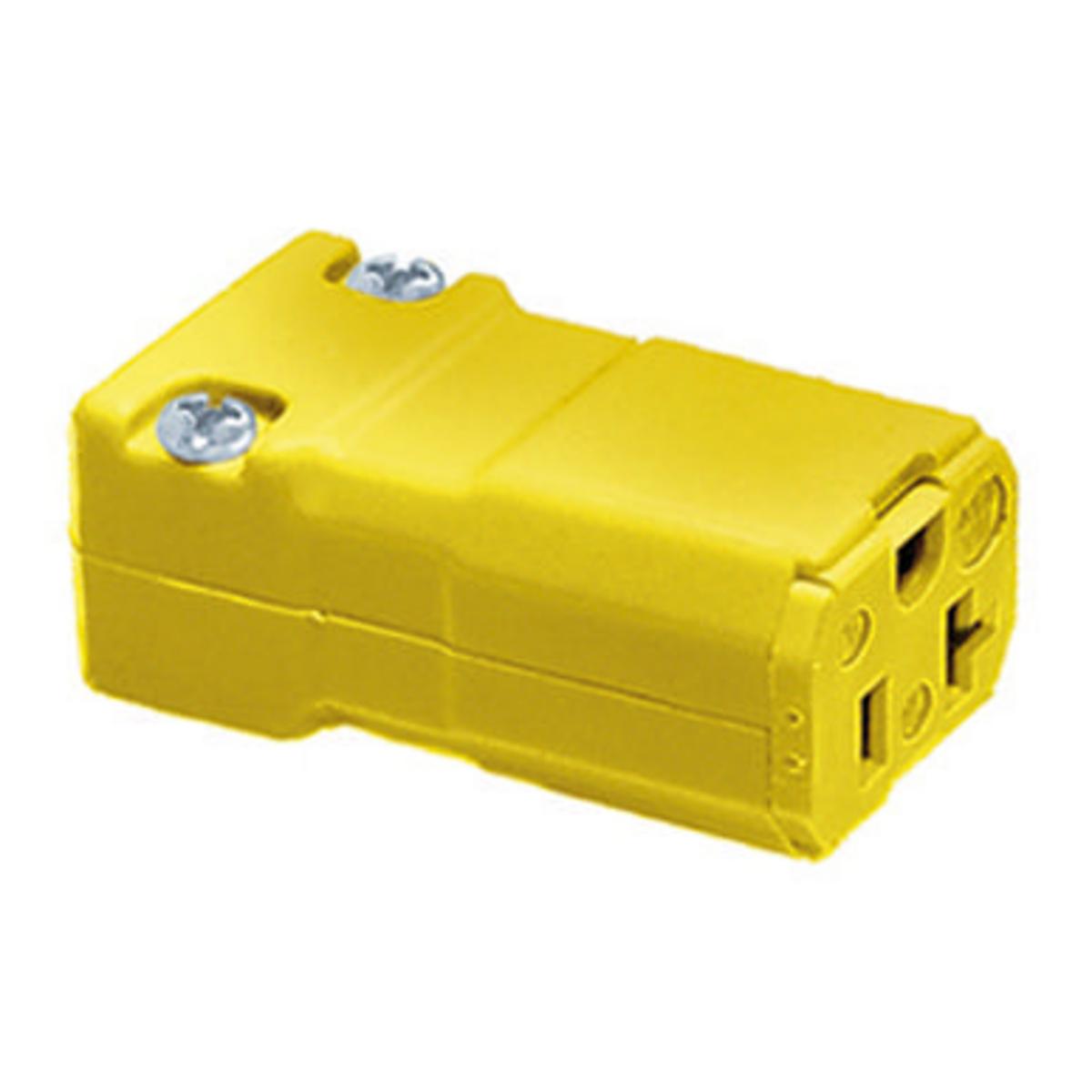

Wiring Device-Kellems HBL5369VY Female Grounding Insulated Cord Mount 125 VAC 20 A

Product Description

The Wiring Device-Kellems HBL5369VY is a straight blade connector designed for female grounding and insulated cord mounting. Rated for 125 VAC, it handles up to 20 A current. This connector features two poles and three wires, making it suitable for various electrical applications.

• Insulated cord mount design
• Voltage rating of 125 VAC and amperage rating of 20 A
• Suitable for commercial and industrial use

Product Highlights

This product is built to withstand harsh conditions, functioning optimally in temperatures ranging from -40 to 75 degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Horsepower: 1 hp
• Cord Diameter: 0.22 to 0.66 in
• Dimensions: 2.68 x 1.32 x 2.68 in
• Material: Nylon
• NEMA Rating: 5-20R
• Enclosure Type: IP20
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Number of Poles: 2
• Number of Wires: 3
• Grade: Commercial/Industrial
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
