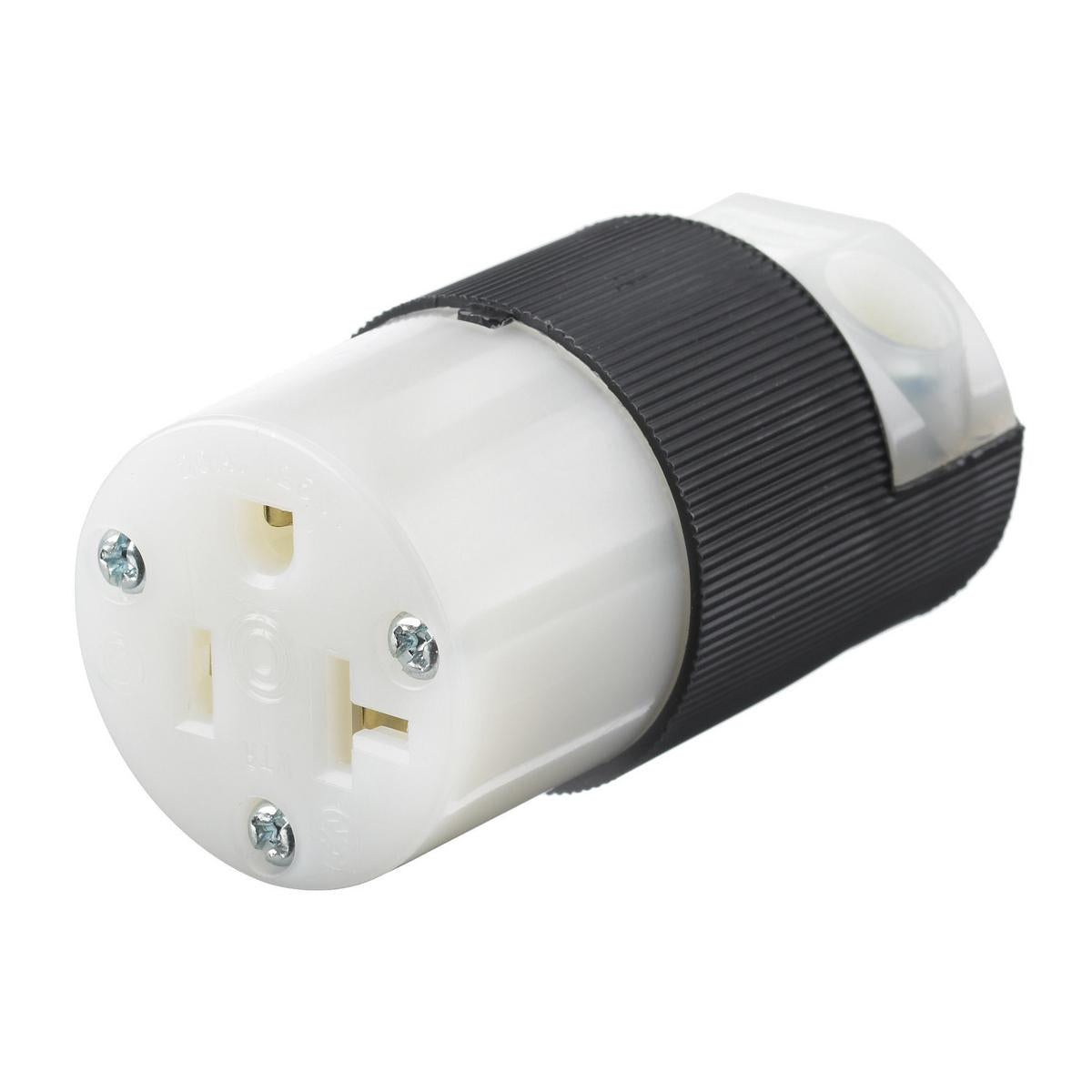

Wiring Device-Kellems HBL5369C Insulgrip Straight Blade Connector 125 VAC 20 A 5-20R

Product Description

The Wiring Device-Kellems HBL5369C is an Insulgrip straight blade connector designed for female grounding. It operates at 125 VAC with a current rating of 20 A. This connector supports a power rating of 1 hp and utilizes a two-pole, three-wire configuration. The product is IP20 rated, ideal for commercial and industrial applications.

• Engineered for robust performance and safety
• Accommodates cord diameters from 0.23 to 0.72 inches
• Temperature range of -40 to 75 degrees Celsius

Product Highlights

Designed for easy installation and optimal functionality. Suitable for various environments, this connector features screw terminals for secure connections and a polycarbonate construction for durability.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Cord Diameter: 0.23 to 0.72 in
• Dimensions: 2.78 x 1.41 x 1.53 in
• Enclosure: IP20
• Grade: Commercial/Industrial
• Horsepower: 1 hp
• Material: Polycarbonate
• NEMA Rating: 5-20R
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: Female Grounding Insulated Cord Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Black/White
