Wiring Device-Kellems HBL5366C Portable Standard Cord Mount 125 VAC 20 A 5-20P

Product Description

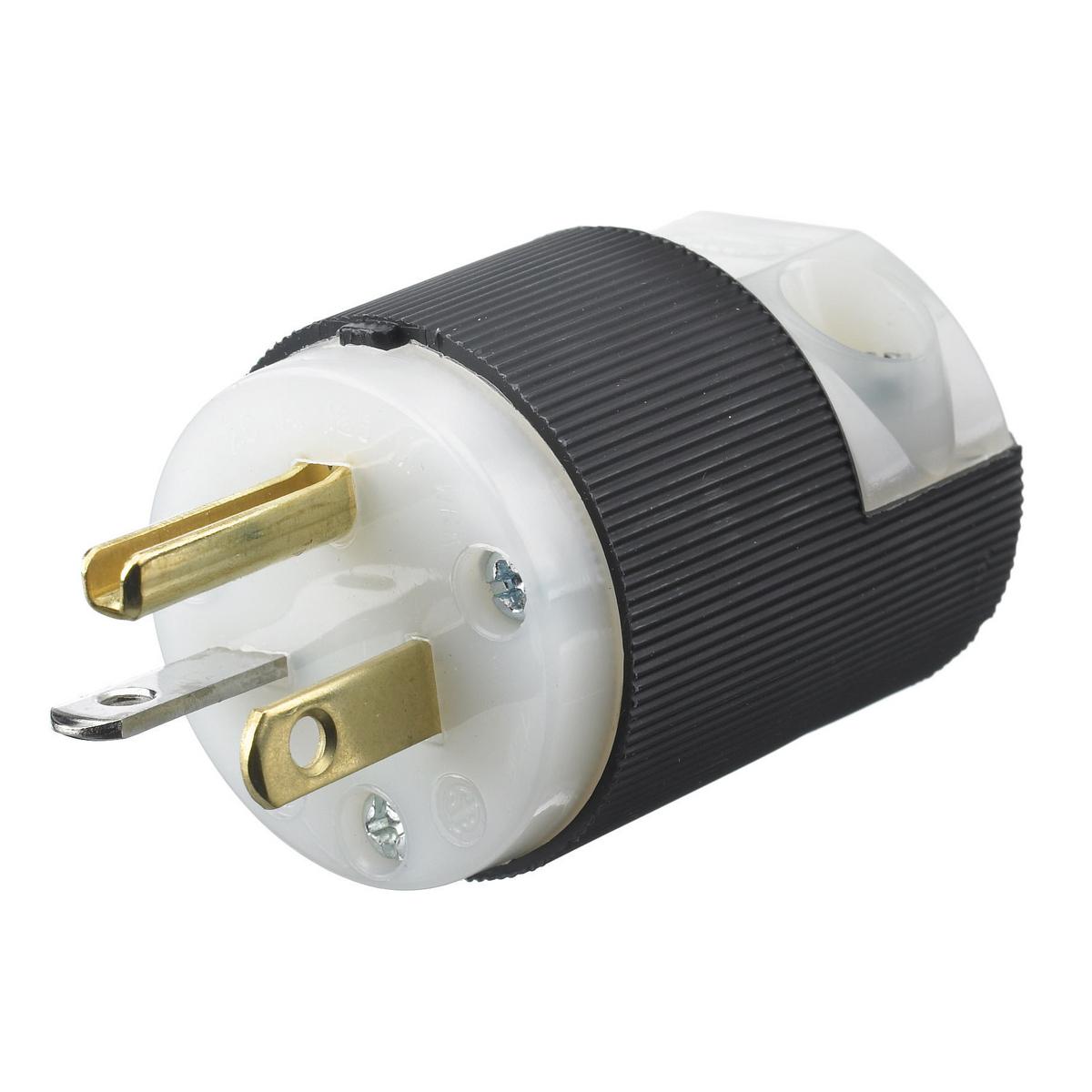

The Wiring Device-Kellems Insulgrip HBL5366C is a standard cord mount straight blade plug. Designed for one-phase grounding, this plug has a voltage rating of 125 VAC and a current rating of 20 A. It features a two-pole, three-wire configuration ideal for commercial and industrial applications.

• Voltage Rating: 125 VAC
• Current Rating: 20 A
• NEMA Rating: 5-20P

Product Highlights

This plug is suitable for environments where safety and durability are critical. With an IP20 enclosure, it protects the internal components from dust and other contaminants.

Product Information

Standard Information

• Grade: Commercial/Industrial
• Material: Polycarbonate

Technical Specifications

• Cord Diameter: 0.23 to 0.72 in
• Dimensions: 1.52 x 1.52 x 1.96 in
• Enclosure: IP20
• Horsepower: 1 hp
• NEMA Rating: 5-20P
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Black/White
