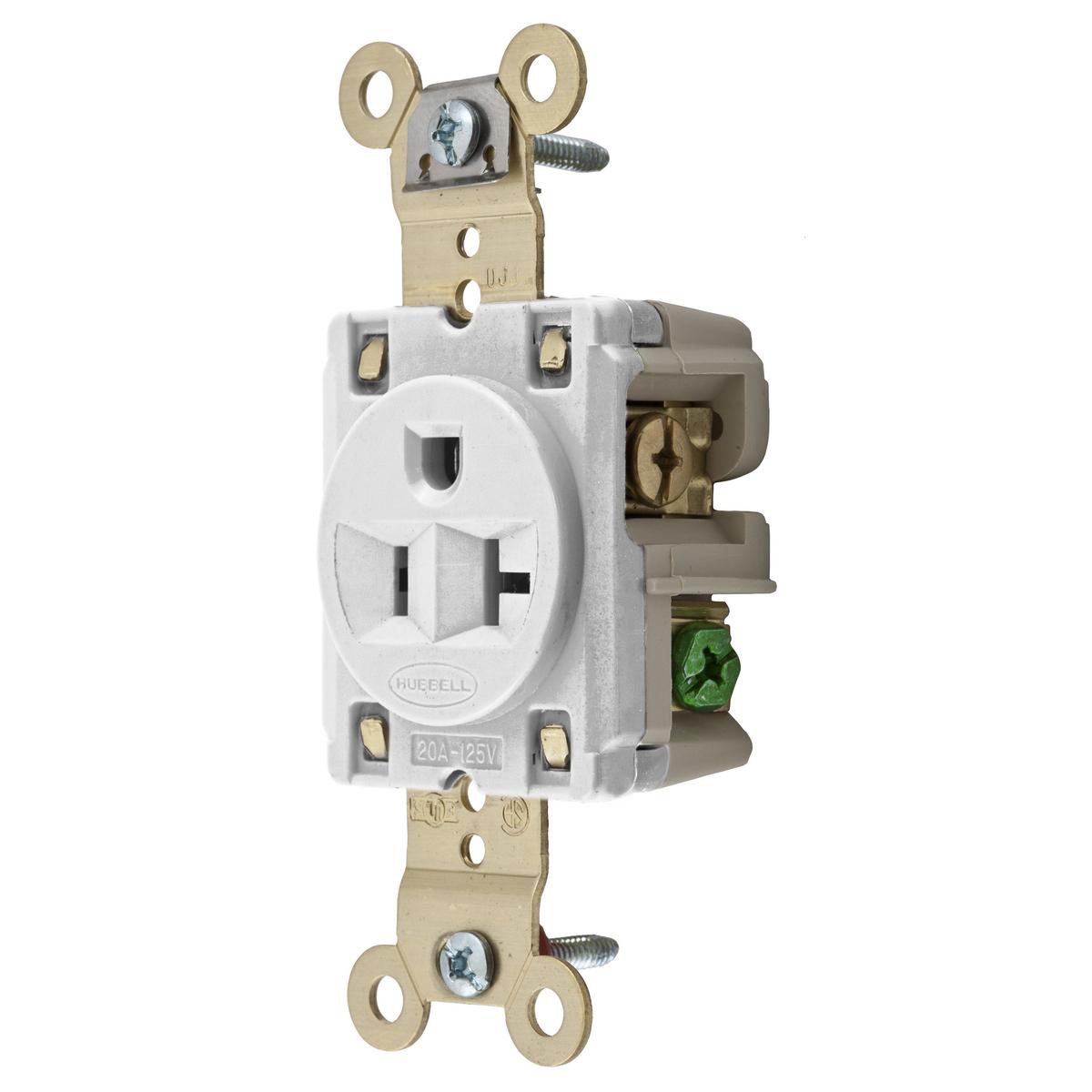

Wiring Device-Kellems HBL5361W 1-Phase Extra Heavy Duty Single Screw Mount 125 VAC 20 A

Product Description

The Wiring Device-Kellems HBL5361W is a 1-phase extra heavy duty single screw mount straight blade receptacle. This device is designed for use in demanding environments. It operates at 125 VAC with a maximum current of twenty amperes. The receptacle features a two pole and three wire configuration.

• Strong thermoplastic composite material
• Suitable for indoor applications
• Industrial grade with a wide temperature range from -40 to 75 degrees Celsius

Product Highlights

This receptacle is built for reliability and high performance in various settings. It is ideal for commercial and industrial applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 3.28 x 1.63 x 1.19 inches
• Grade: Industrial
• Horsepower: 1 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 5-20R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Back and Side Wire/Screw
• Type: 1-Phase Extra Heavy Duty Single Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: White
