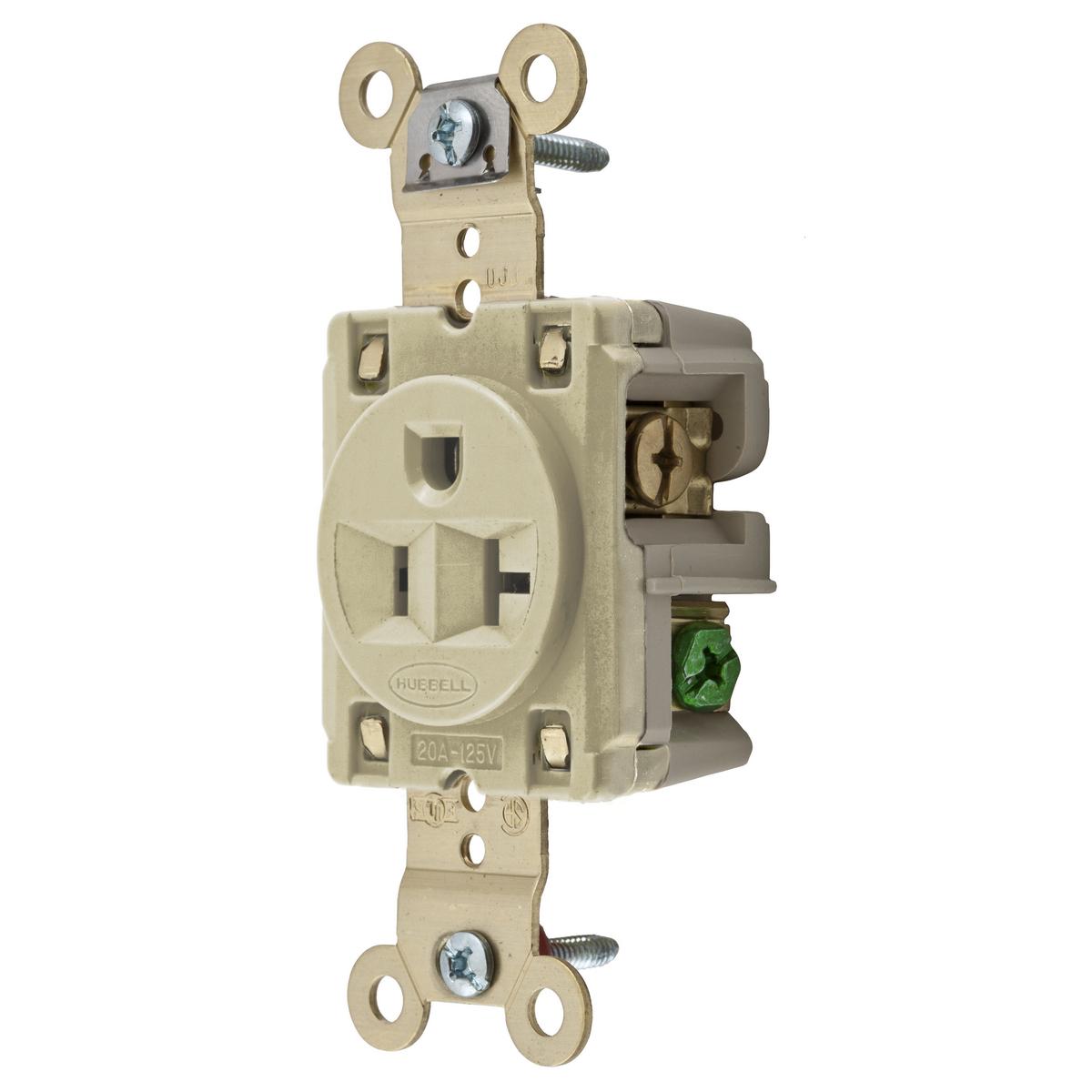

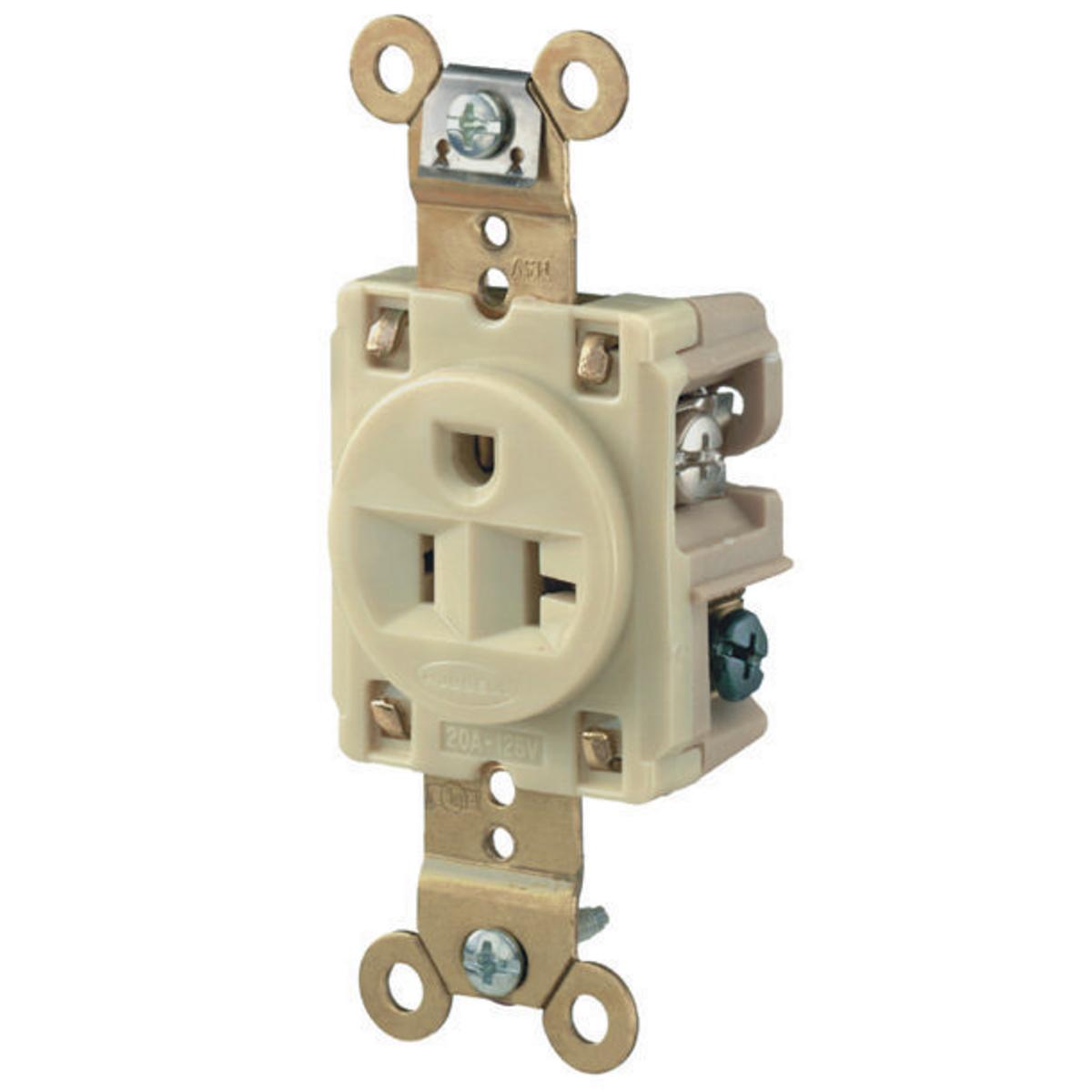

Wiring Device-Kellems HBL5361I 1-Phase Extra Heavy Duty Self-Grounding Single Screw Mount Straight Blade Receptacle 125 VAC 20 A

Product Description

The Wiring Device-Kellems HBL5361I is an industrial-grade straight blade receptacle designed for heavy-duty applications. This single screw mount receptacle operates at 125 VAC and supports up to 20 A with a horsepower rating of 1. Featuring two poles and three wires, this device ensures reliable grounding and safety. The device is constructed from thermoplastic composite material, rated for temperatures from -40 to 75 degrees Celsius, and complies with the 5-20R NEMA standard.

• 1-Phase Extra Heavy Duty Self-Grounding
• Back and Side Wire/Screw Terminal Design
• Dimensions: 3.28 x 1.63 x 1.19 inches

Product Highlights

This receptacle is ideal for industrial use, making it suitable for various electrical applications that require durable and dependable connections.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Type: 1-Phase Extra Heavy Duty Self-Grounding Single Screw Mount

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Material: Thermoplastic/Composite
• Temperature Rating: -40 to 75 degrees Celsius
• Grade: Industrial
• Color: Ivory
• Dimensions: 3.28 x 1.63 x 1.19 inches
• Terminal Type: Back and Side Wire/Screw
