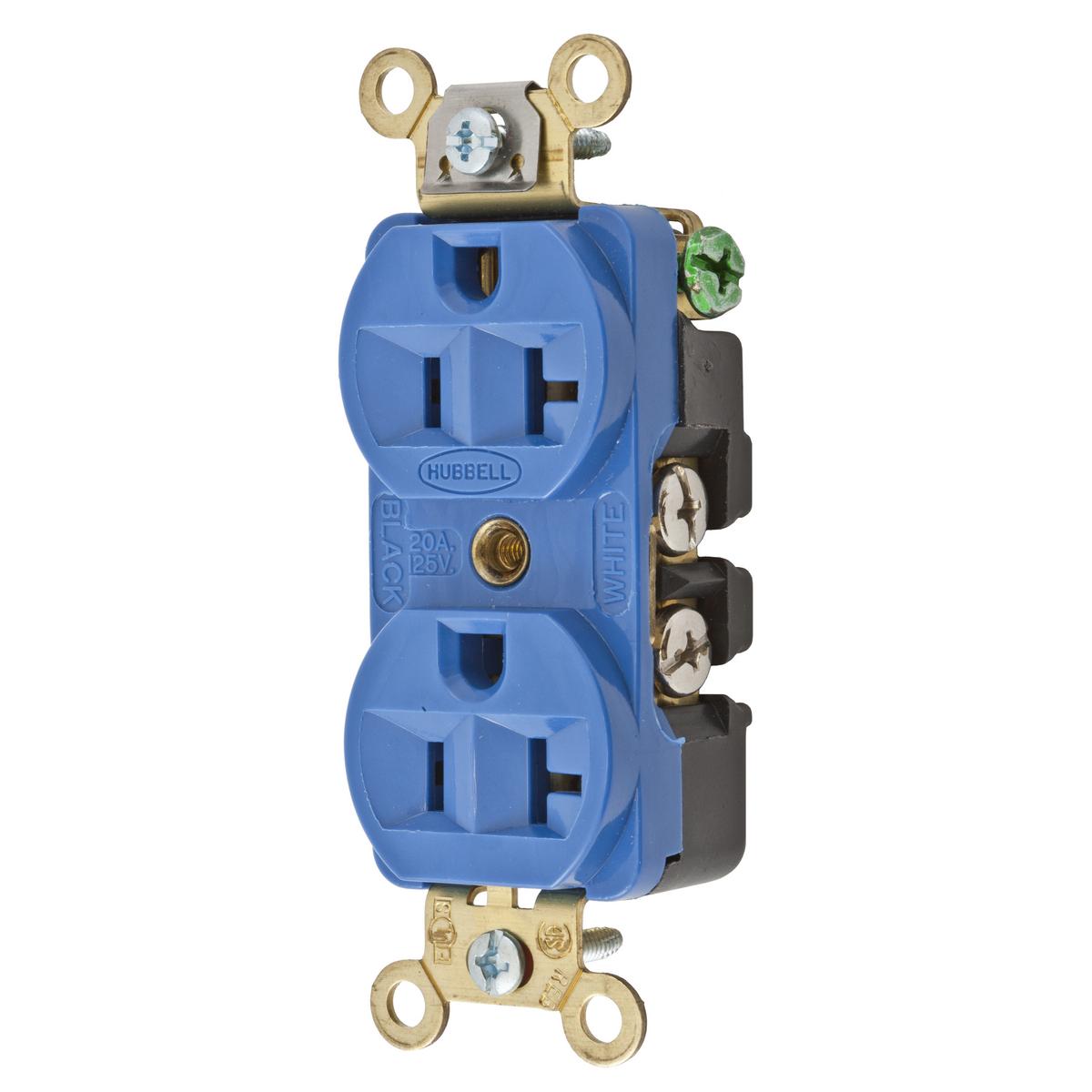

Wiring Device-Kellems HBL5352BL 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount

Product Description

The Wiring Device-Kellems HBL5352BL is a straight blade receptacle designed for demanding environments. This device is a one-phase compact duplex receptacle that provides reliable self-grounding capabilities.

• Rated for 125 VAC and 20 A
• Constructed for commercial and industrial applications
• Features back and side wire/screw terminals

Product Highlights

The receptacle is suitable for a variety of uses, offering durability and safety in electrical installations. This unit supports a voltage rating of one hundred twenty-five volts alternating current and can handle up to twenty amperes. Ideal for both indoor and outdoor settings due to its wide temperature tolerance ranging from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 3.28 x 1.33 x 1.05 inches
• Grade: Commercial/Industrial
• Horsepower: 1 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 5-20R
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Back and Side Wire/Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Blue
