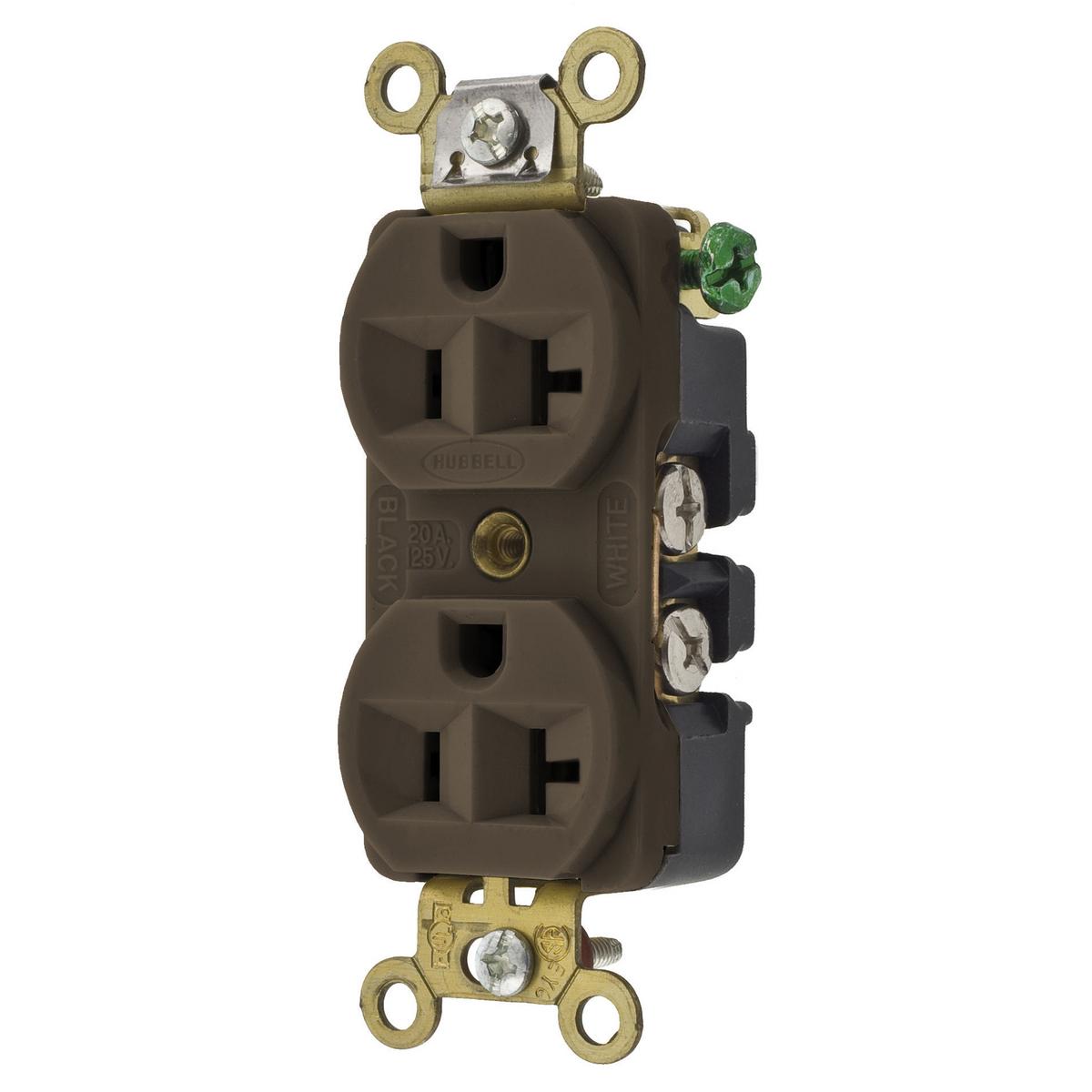

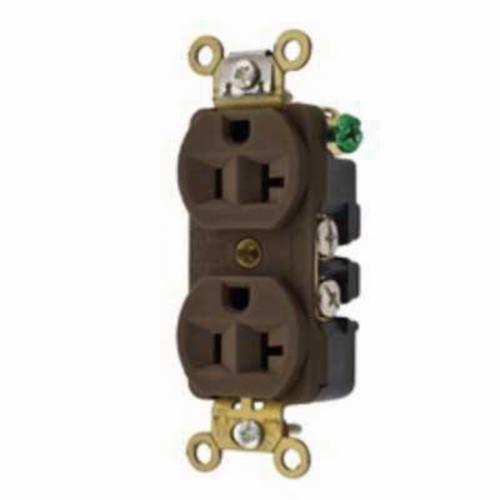

Wiring Device-Kellems HBL5352 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount

Product Description

The Wiring Device-Kellems HBL5352 is a straight blade receptacle designed for reliable performance in commercial and industrial applications. This receptacle operates at 125 VAC and has a current rating of twenty amperes. Its compact duplex design features a self-grounding screw mount, ensuring a secure and efficient installation.

• Type: 1-Phase Compact Duplex Extra Heavy Duty
• Voltage Rating: 125 VAC
• NEMA Rating: 5-20R

Product Highlights

This receptacle is suitable for both back and side wiring, accommodating various wire sizes. It features a temperature rating of minus forty to seventy-five degrees Celsius and is made of thermoplastic and composite materials.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL5352
• Color: Brown
• Grade: Commercial/Industrial
• Horsepower: 1 hp
• Material: Thermoplastic/Composite
• Dimensions: 3.28 x 1.33 x 1.05 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Back and Side Wire/Screw
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
