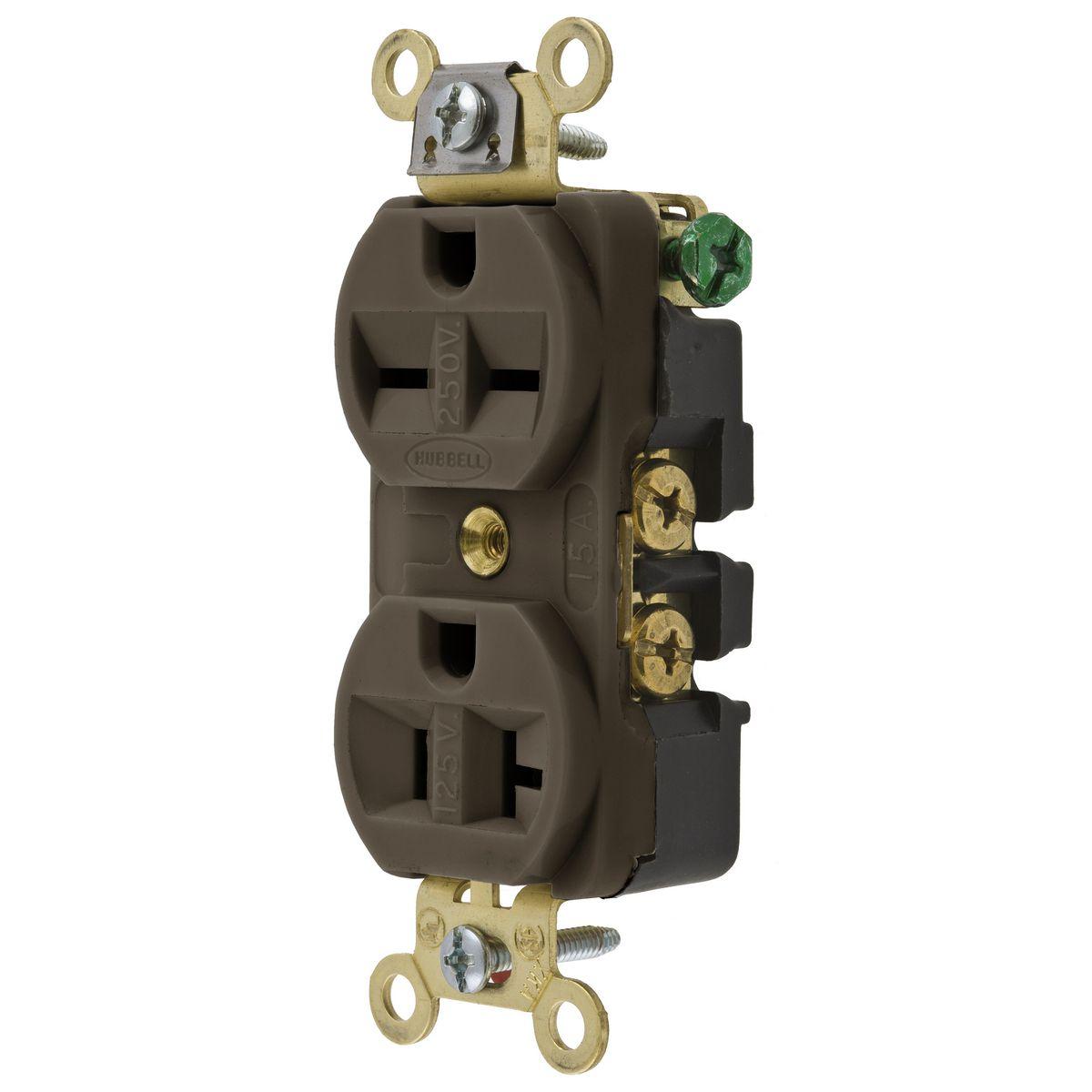

Wiring Device-Kellems HBL5292 2-Circuit Grounding Heavy Duty Standard Straight Blade Combination Duplex Receptacle

Product Description

Wiring Device-Kellems HBL5292 is a combination duplex receptacle designed for use in commercial and industrial settings. It features a 2-circuit grounding system, allowing for efficient power distribution. The receptacle works under voltage ratings of 125/250 volts and has a maximum amperage of fifteen amperes. This product has a sturdy design and can handle a wattage of up to 3750 watts.

• Application: Suitable for heavy-duty operations
• Environment: Operates within temperatures of -40 to 75 degrees Celsius
• Wiring: Compatible with 14 to 12 AWG wire

Product Highlights

This product is ideal for electricians and contractors needing reliable power solutions in demanding environments.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL5292
• Type: 2-Circuit Grounding Heavy Duty Standard Straight Blade
• Amperage Rating: 15 A
• Voltage Rating: 125/250 V
• Wattage: 3750 W
• Horsepower: 1.5 hp
• Number of Poles: 2
• Number of Wires: 3
• Wiring Method: Back/Side Wired
• NEMA Rating: 5-15R/6-15R
• Mounting: Threaded
• Environmental Conditions: -40 to 75 deg C
• Material: Thermoplastic/Composite
• Color: Brown
• Size: 3.28 x 1.5 x 0.88 in
• Connection: Screw Terminal
