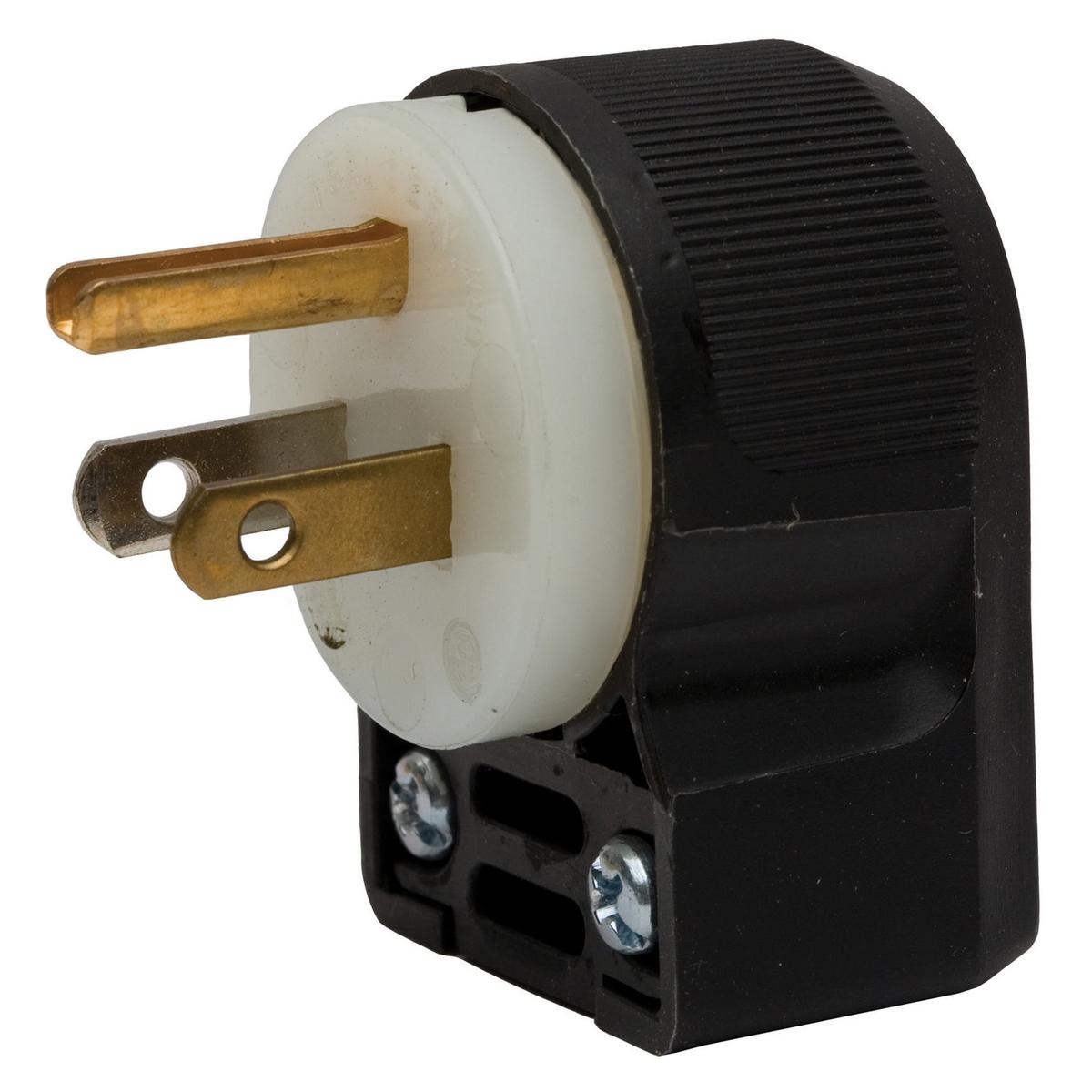

Wiring Device-Kellems HBL5266CA Standard Cord Mount Plug 125 VAC 15 A 5-15P

Product Description

The Wiring Device-Kellems HBL5266CA is a portable standard cord mount plug designed for commercial and industrial use. This plug operates at 125 VAC with a current rating of 15 A, featuring two poles and three wires.

• Durable polycarbonate construction
• IP20 rated for environmental protection
• Compatible with various cord diameters of 0.325 to 0.655 inches

Product Highlights

This angled grounding plug is suitable for a range of applications, providing reliable power connections in various environments.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Horsepower: 1/2 hp
• NEMA Rating: 5-15P
• Cord Diameter: 0.325 to 0.655 in
• Dimensions: 1.53 x 1.22 x 2.11 in
• Enclosure: IP20
• Material: Polycarbonate
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Number of Poles: 2
• Number of Wires: 3
• Grade: Commercial/Industrial
