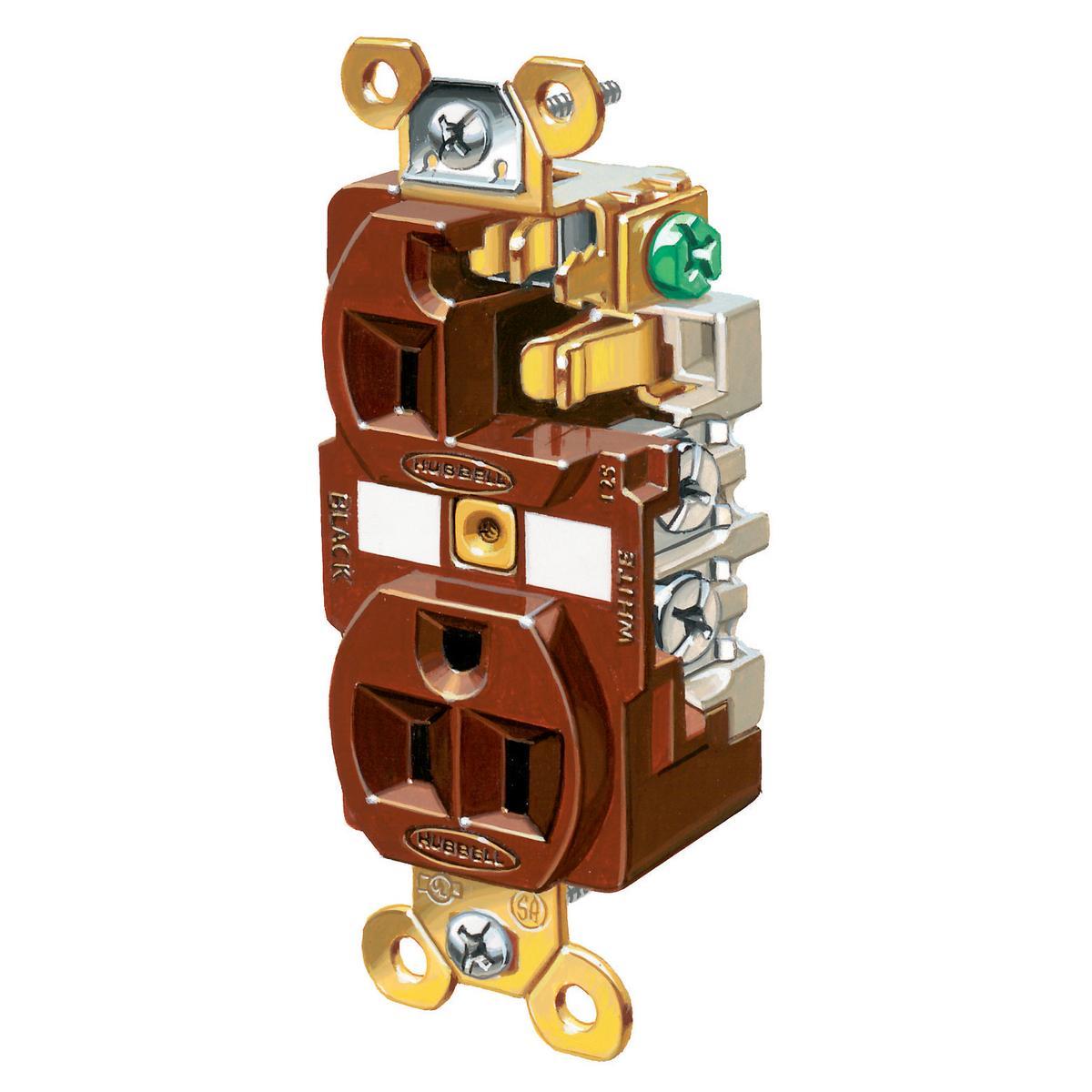

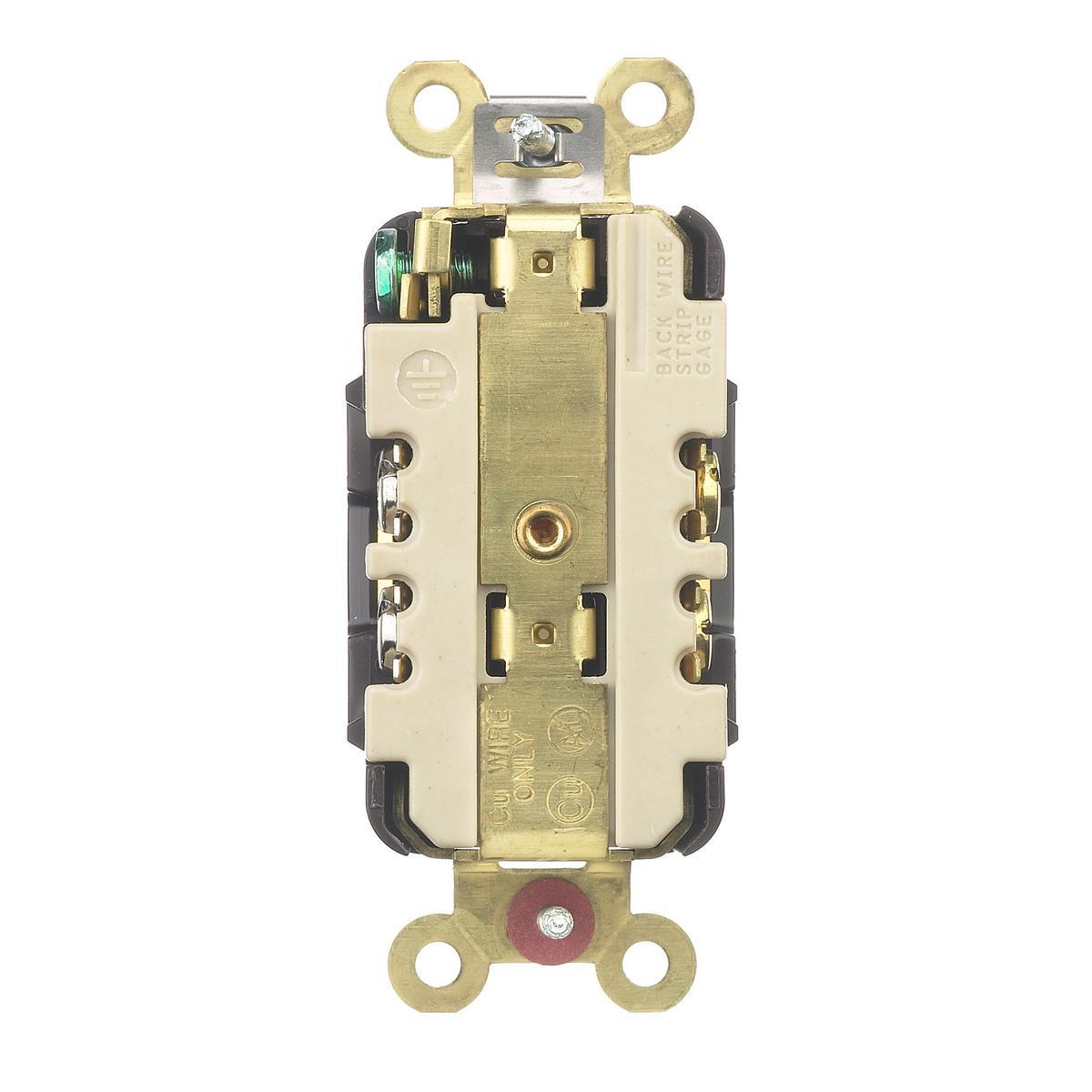

Wiring Device-Kellems HBL5262 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount

Product Description

The Wiring Device-Kellems HBL5262 is a 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount Straight Blade Receptacle. This receptacle operates at 125 VAC and supports a maximum current of 15 A. It contains two poles and three wires, making it suitable for various electrical applications.

• Industrial-grade nylon material
• Temperature range of -40 to 75 degrees Celsius
• Side wired terminal for easy installation

Product Highlights

This receptacle is designed for demanding environments and offers a 5-15R NEMA rating.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 3.28 x 1.65 x 1.19 inches
• Grade: Industrial
• Horsepower: 1/2 hp
• Material: Nylon
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Side Wired
• Type: 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
