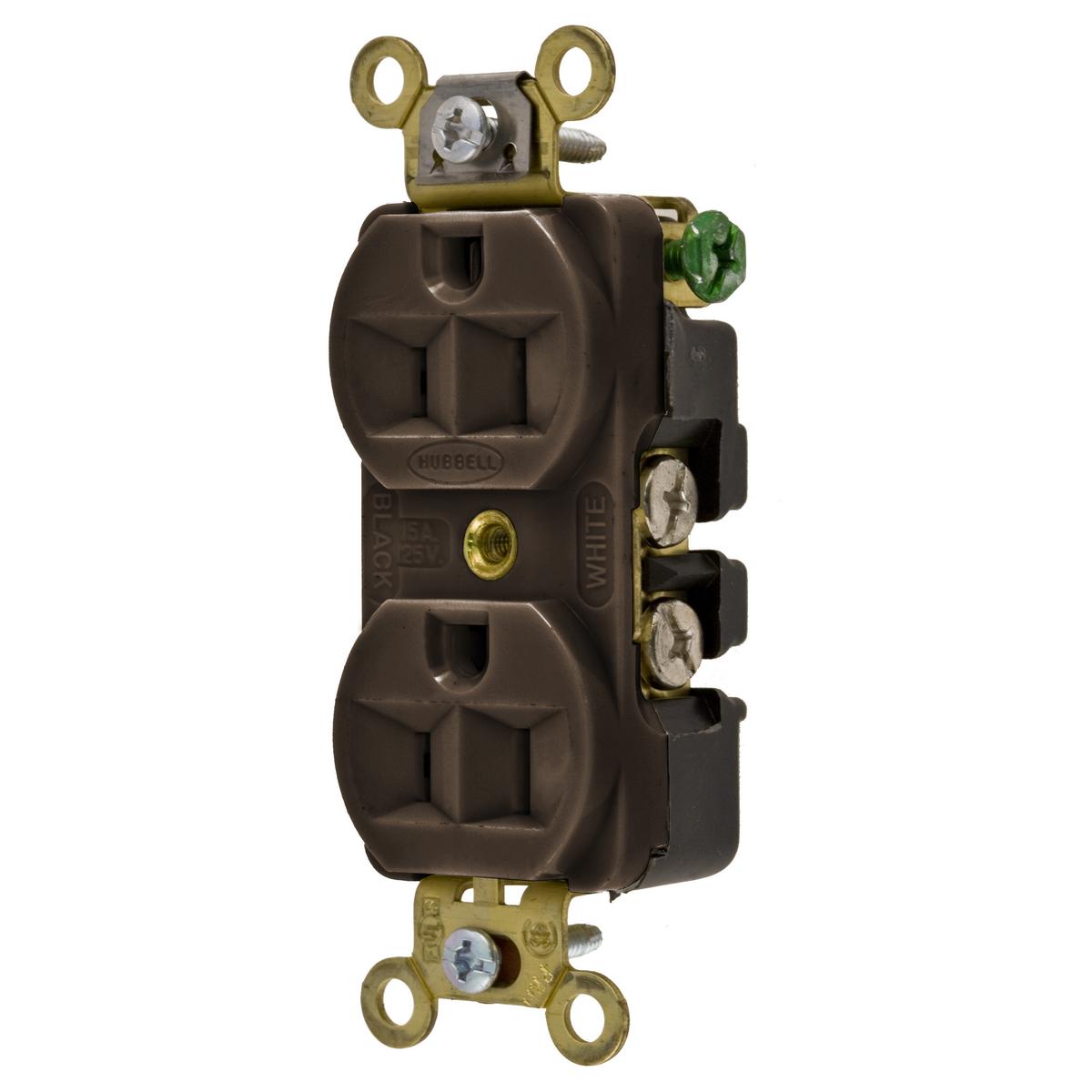

Wiring Device-Kellems HBL5252 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount

Product Description

The Wiring Device-Kellems HBL5252 is a 1-phase compact duplex extra heavy-duty self-grounding screw mount straight blade receptacle. It operates at one hundred twenty-five volts alternating current and supports up to fifteen amps. This receptacle features two poles and three wires, making it suitable for a variety of industrial and commercial applications.

• Meets the 5-15R NEMA rating
• Temperature range of -40 to 75 degrees Celsius
• Made with thermoplastic and composite materials

Product Highlights

The device allows for easy installation thanks to its side-wired terminal and is designed to withstand harsh conditions due to its durable construction.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 3.28 x 1.33 x 1.05 inches
• Commercial Grade
• Horsepower: 1/2 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Side Wired
• Type: 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
