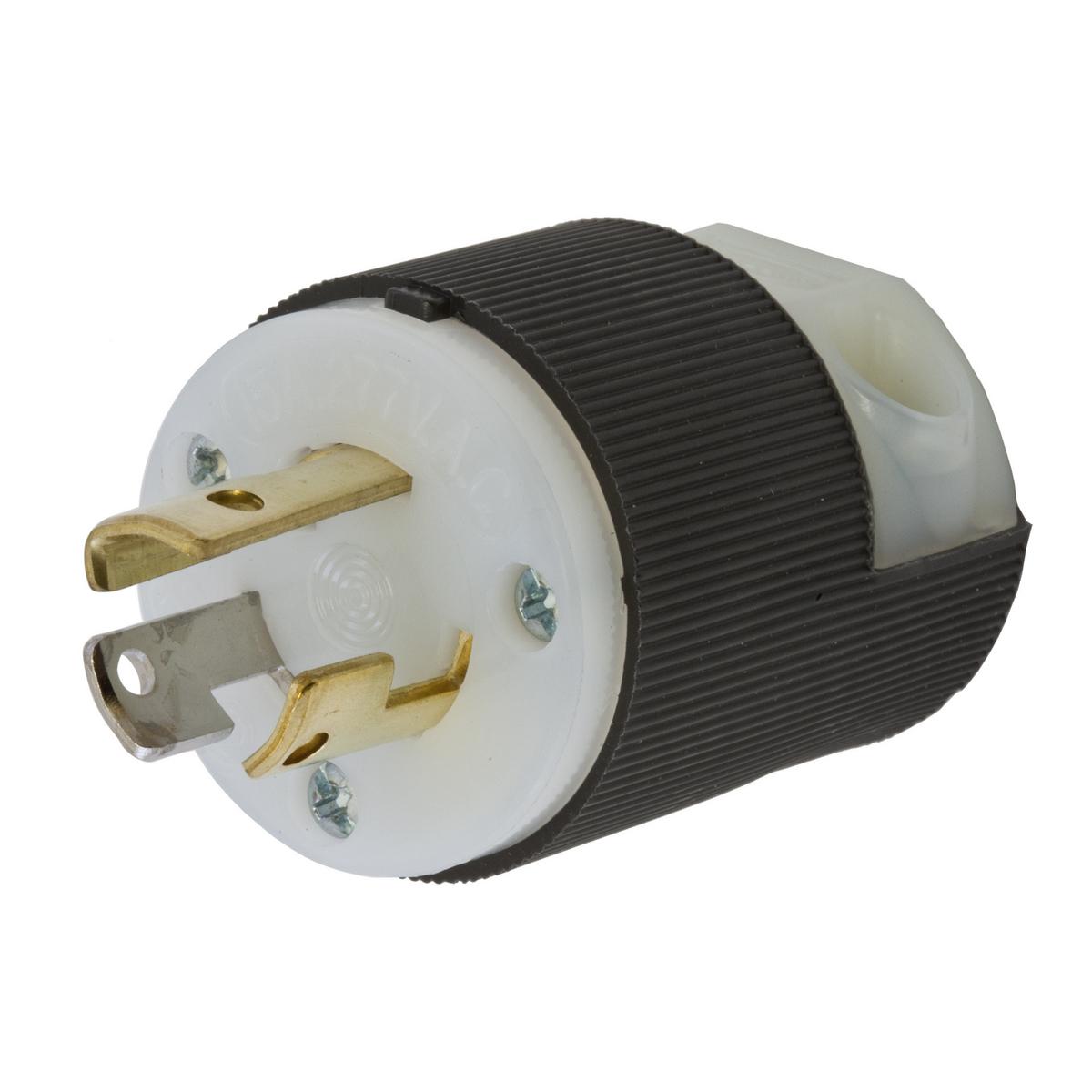

Wiring Device-Kellems HBL4770C 1-Phase Grounding Cord Mount Locking Plug, 277 VAC

Product Description

The Wiring Device-Kellems HBL4770C is a locking plug designed for 1-phase grounding cord mounting. It operates at 277 VAC with a maximum current of 15 A, featuring two poles and three wires. This plug meets the L7-15P NEMA rating and is built for industrial applications.

• Rated for 277 VAC and 15 A
• Constructed with nylon for durability
• IP20 enclosure for indoor use

Product Highlights

This locking plug is suitable for various applications where securing electrical connections is crucial. It works effectively in environments that require reliable connections and meets industrial standards for safety and performance.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 277 VAC
• Amperage Rating: 15 A
• Horsepower: 2 hp
• Number of Poles: 2
• Number of Wires: 3
• Color: Black/White
• Material: Nylon
• Enclosure: IP20
• Dimensions: 1.53 x 1.53 x 1.97 inches
• Cord Diameter: 0.23 to 0.72 inches
• NEMA Rating: L7-15P
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Screw
• Type: 1-Phase Grounding Cord Mount
