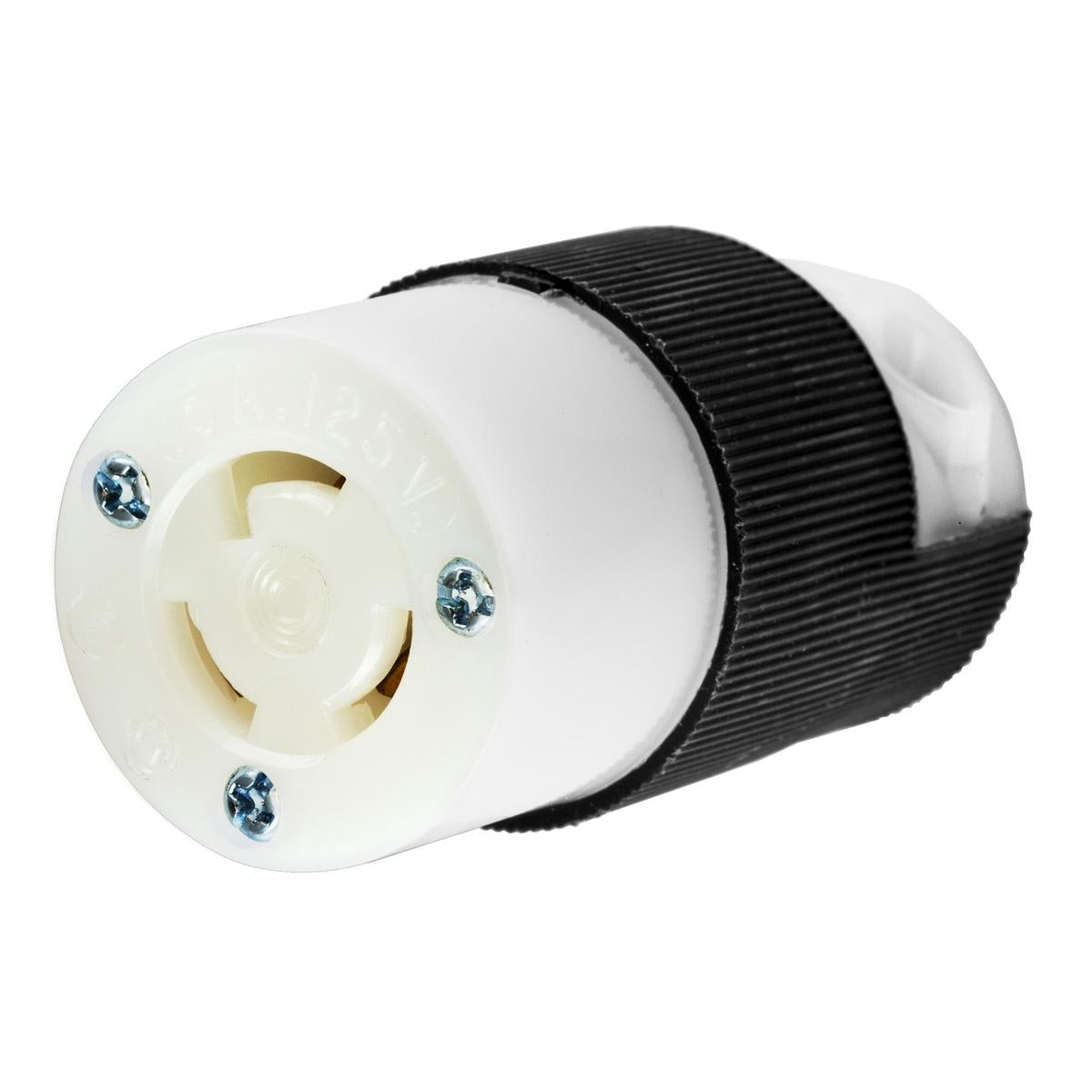

Wiring Device-Kellems HBL4729C Grounding Heavy Duty Cord Mount Locking Connector

Product Description

The Wiring Device-Kellems HBL4729C is a grounding heavy duty cord mount locking connector. It is rated at 125 VAC and 15 A, suitable for commercial and industrial applications. This locking connector has a NEMA rating of L5-15P and is designed with two poles and three wires.

• Heavy-duty, safe locking mechanism
• Constructed from durable nylon material
• Compatible with cords of diverse diameters between 0.23 to 0.72 inches

Product Highlights

Reliable performance in harsh environments with temperature ratings from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: Grounding Heavy Duty Cord Mount
• Color: Black/White
• Grade: Commercial/Industrial
• Material: Nylon
• Enclosure: IP20
• Dimensions: 1.53 x 1.53 x 2.78 in
• Horsepower: 0.5 hp
• NEMA Rating: L5-15P
• Cord Diameter: 0.23 to 0.72 in
• Terminal Type: Pressure Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 deg C
