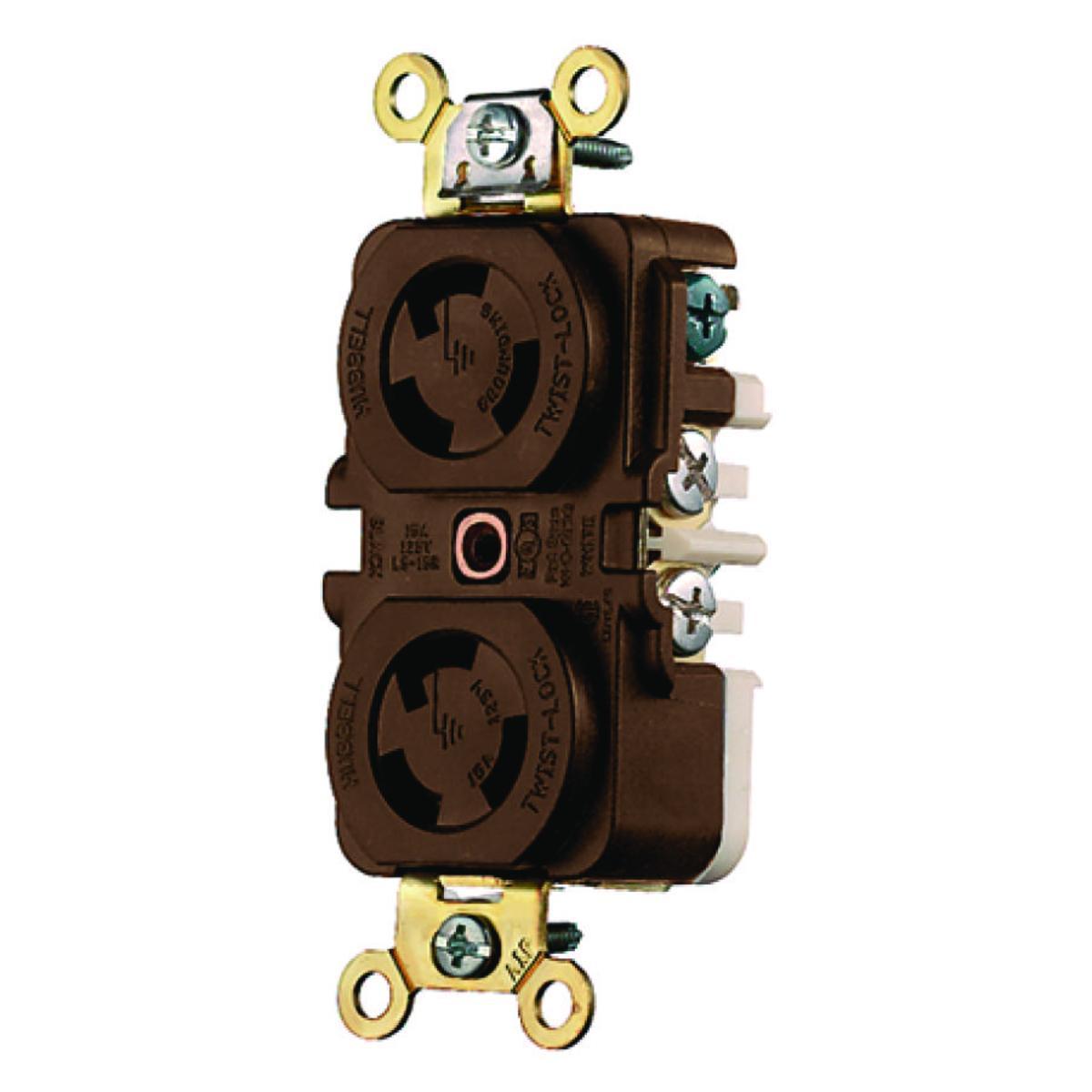

Wiring Device-Kellems HBL4700 1-Phase Grounding Heavy Duty Single Screw Mount 125 VAC

Product Description

The Wiring Device-Kellems Twist-Lock® Locking Receptacle HBL4700 is designed for heavy-duty applications. This locking receptacle offers a 1-phase grounding connection, suitable for industrial use. It operates at one hundred twenty-five volts and fifteen amps, accommodating two poles and three wires. The product features a thermoplastic body that maintains performance from negative forty to seventy-five degrees Celsius.

• Heavy duty locking receptacle
• Industrial grade with L5-15R NEMA rating
• Temperature range: -40 to 75 degrees Celsius

Product Highlights

Suitable for various settings, this receptacle is ideal for powering tools and equipment where secure connections are required.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 783585002309

Technical Specifications

• Dimensions: 3.29 inches x 1.7 inches x 1.17 inches
• Grade: Industrial
• Horsepower: 1/2 hp
• Material: Thermoplastic
• NEMA Rating: L5-15R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
