Wiring Device-Kellems HBL460C12W HWD Female Heavy Duty Insulated Standard Watertight Pin and Sleeve Connector

Product Description

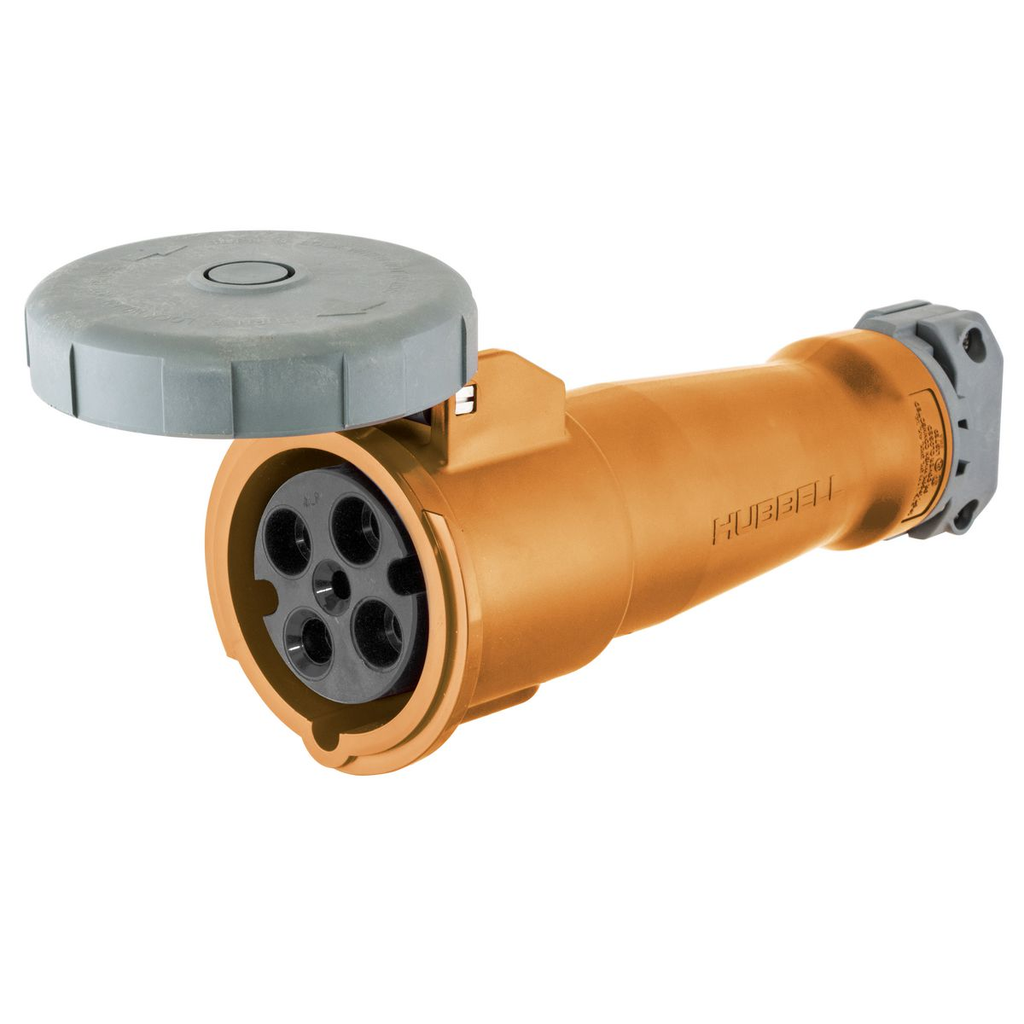

The Wiring Device-Kellems HBL460C12W is an industrial-grade female heavy-duty insulated non-fusible watertight pin and sleeve connector. This connector is rated for 125/250 VAC and has a current capacity of sixty amps. It features a durable composite construction, making it suitable for high ampacity connection applications.

• Compatible wire size ranges from eight to two AWG.
• Designed for use in harsh environments with an IP67 rating.
• Support for pressure screw terminal connections for secure conductivity.

Product Highlights

Reliable and robust connection solution for industrial applications.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 60 A
• Number of Poles: 3
• Number of Wires: 4
• Material: Composite
• Enclosure: IP67
• Operating Temperature: -40 to 75 degrees C
• Dimensions: 5.1 in Diameter x 11.15 in Length
