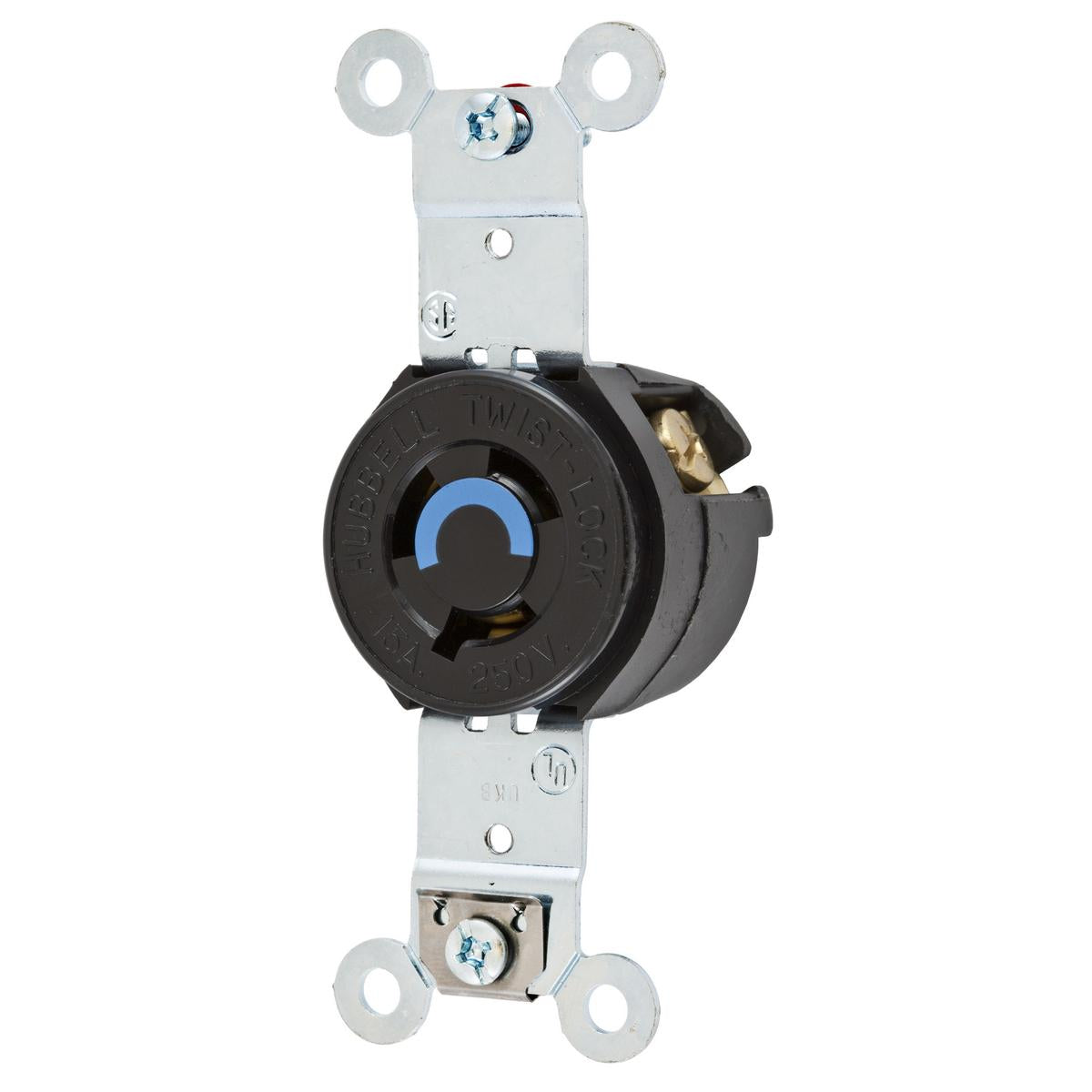

Wiring Device-Kellems HBL4560 Heavy Duty Locking Receptacle 250 VAC 15 A L6-15R

Product Description

The Wiring Device-Kellems HBL4560 is a heavy-duty locking receptacle designed for industrial applications. It operates at 250 VAC and has a rating of 15 A. This receptacle features a twist-lock design and is suitable for use in demanding environments.

• 1-Phase grounding, heavy-duty single standard screw mount
• NEMA L6-15R rated for reliable performance
• Constructed from thermoplastic for durability

Product Highlights

This locking receptacle is built to handle a temperature range from minus forty to seventy-five degrees Celsius. Its industrial grade construction ensures it withstands tough conditions.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: HBL4560

Technical Specifications

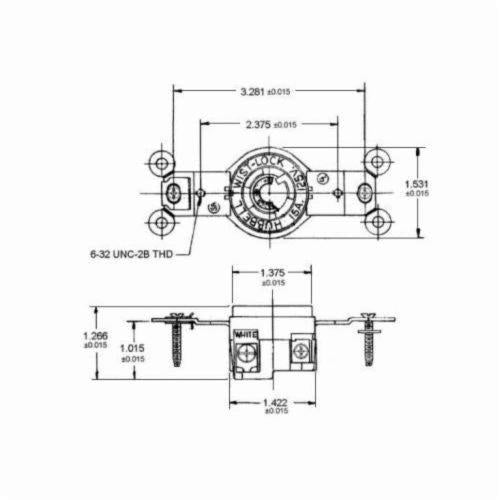

• Dimensions: 3.28 inches x 1.53 inches x 1.27 inches
• Grade: Industrial
• Horsepower: 1.5 hp
• Material: Thermoplastic
• NEMA Rating: L6-15R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 250 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Black
