Wiring Device-Kellems HBL4550 Twist-Lock 1-Phase Grounding Heavy Duty Single Standard Screw Mount Locking Receptacle

Product Description

The Wiring Device-Kellems Twist-Lock Locking Receptacle HBL4550 is made for secure connections in high-demand electrical applications. This receptacle supports a voltage of two hundred fifty volts and an amperage of fifteen amps, making it suitable for various industrial use cases.

• Designed with a NEMA L6-15R rating.
• Durable thermoplastic construction.
• Temperature rated from negative forty to seventy-five degrees Celsius.

Product Highlights

The receptacle features a screw terminal for easy installation and connection. It is ideal for heavy-duty applications where reliable power connections are essential.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Phase Grounding Heavy Duty Single Standard Screw Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 15 A
• Horsepower: 1.5 hp
• Number of Poles: 2
• Number of Wires: 3
• Color: Black
• Grade: Industrial
• NEMA Rating: L6-15R
• Temperature Rating: -40 to 75 deg C

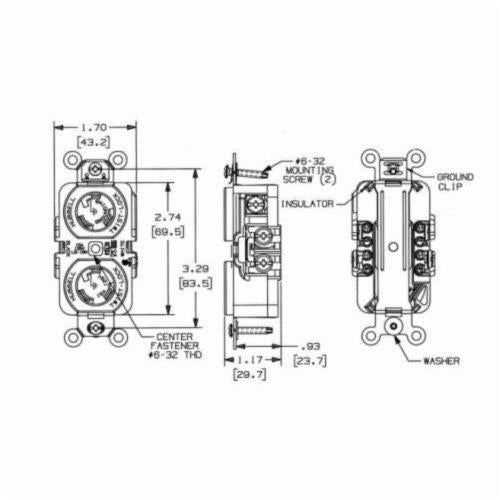

• Dimensions: 3.29 x 1.7 x 1.17 in
• Material: Thermoplastic
• Terminal Type: Screw
