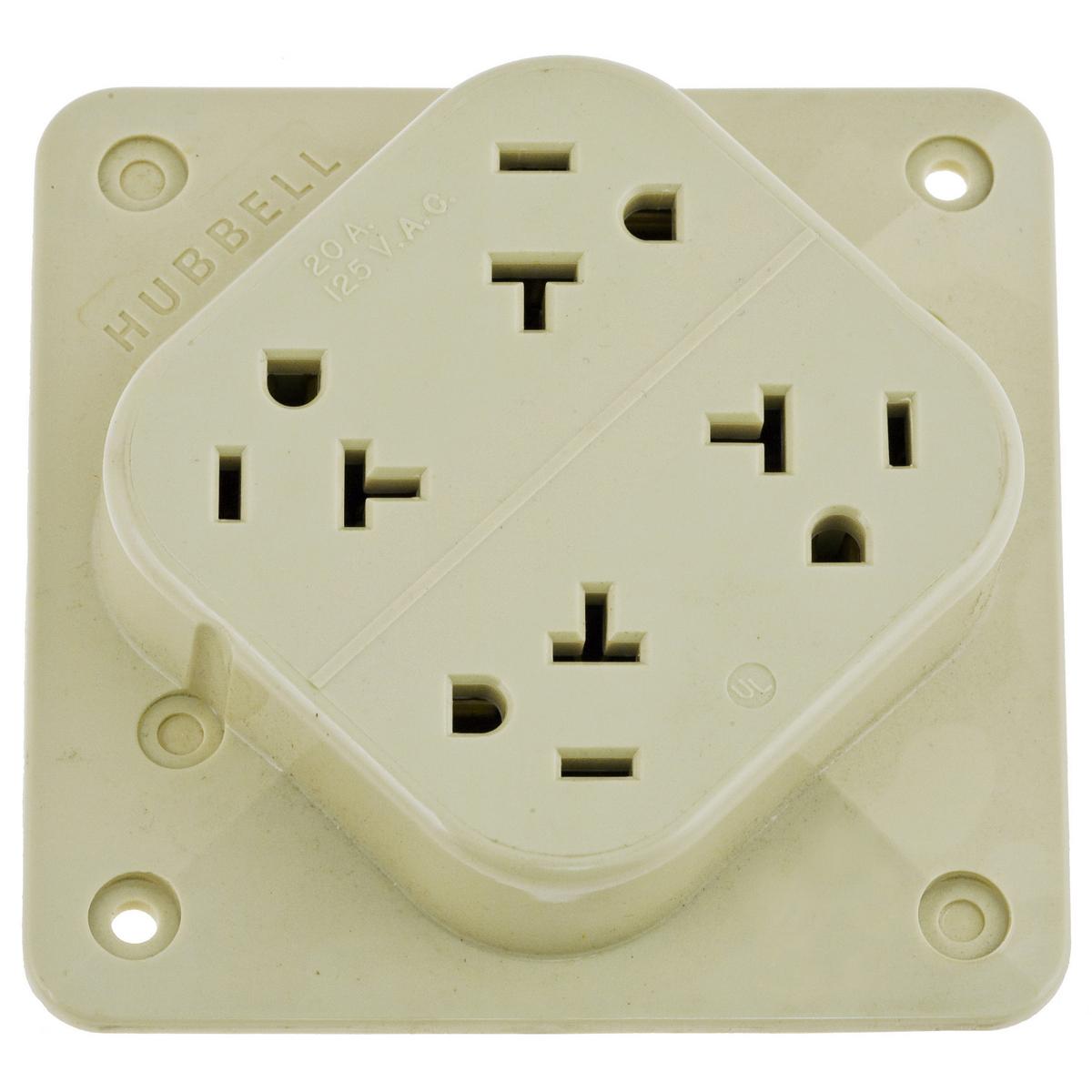

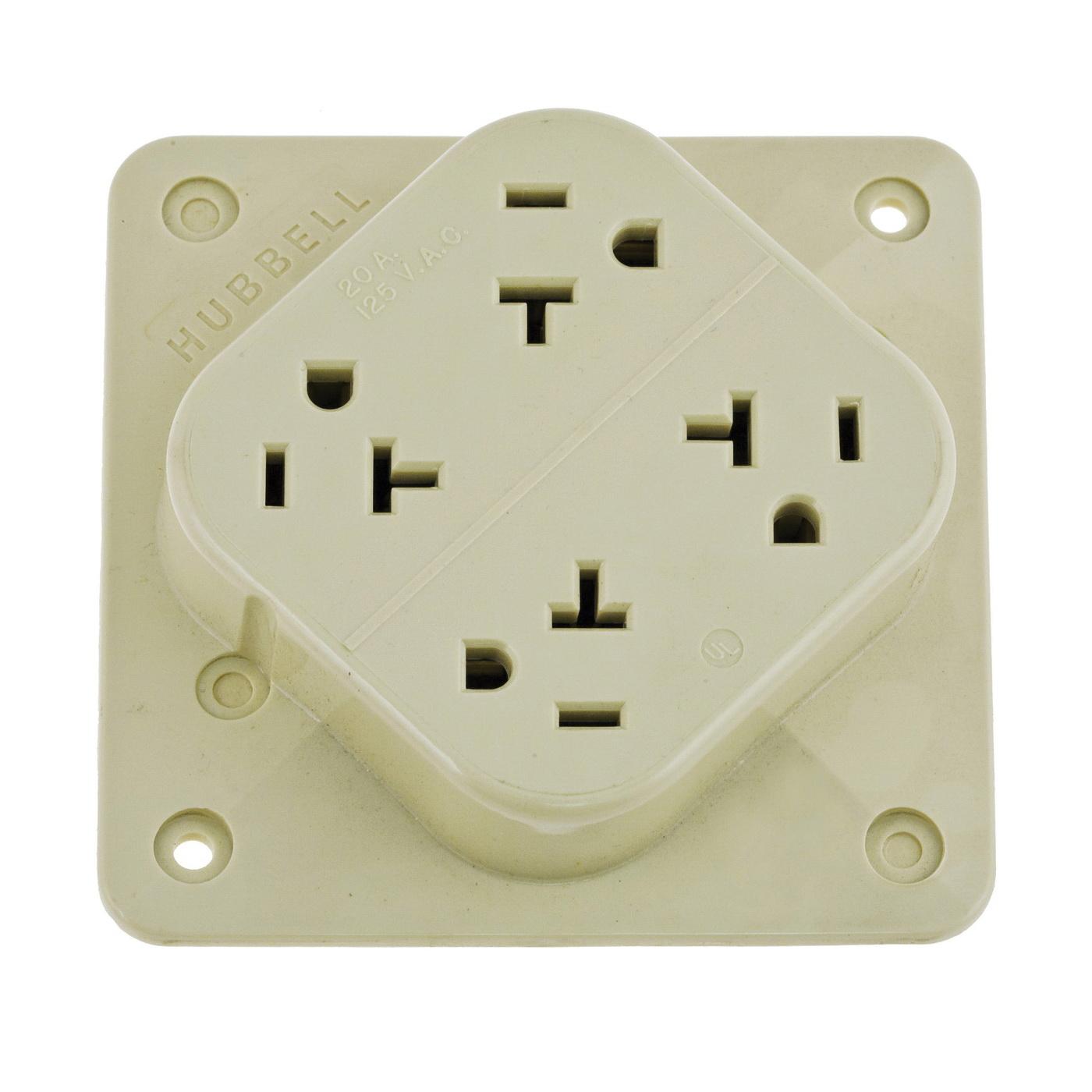

Wiring Device-Kellems HBL420I 1-Phase 4-in-1 Grounding Standard Screw Mount 125 VAC 20 A

Product Description

The Wiring Device-Kellems HBL420I is a 4-PLEX® straight blade receptacle designed for reliable electrical connections. This device features a 1-phase, 4-in-1 grounding standard screw mount configuration. It operates at 125 VAC and supports a maximum current of 20 A. With a NEMA rating of 5-20R, it is suitable for both commercial and industrial applications. The receptacle is made from durable polycarbonate material, ensuring longevity and efficiency in varied conditions.

• Robust design for commercial and industrial use
• Easily accessible break-off tabs for simple wiring adjustments
• Temperature range from -40 to 75 degrees Celsius

Product Highlights

This receptacle's screw terminal ensures fast and secure wire connections, making installation straightforward.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase 4-in-1 Grounding Standard Screw Mount
• Material: Polycarbonate
• Dimensions: 4.3 x 0.92 x 4.3 inches
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Color: Ivory
• Temperature Rating: -40 to 75 degrees Celsius
