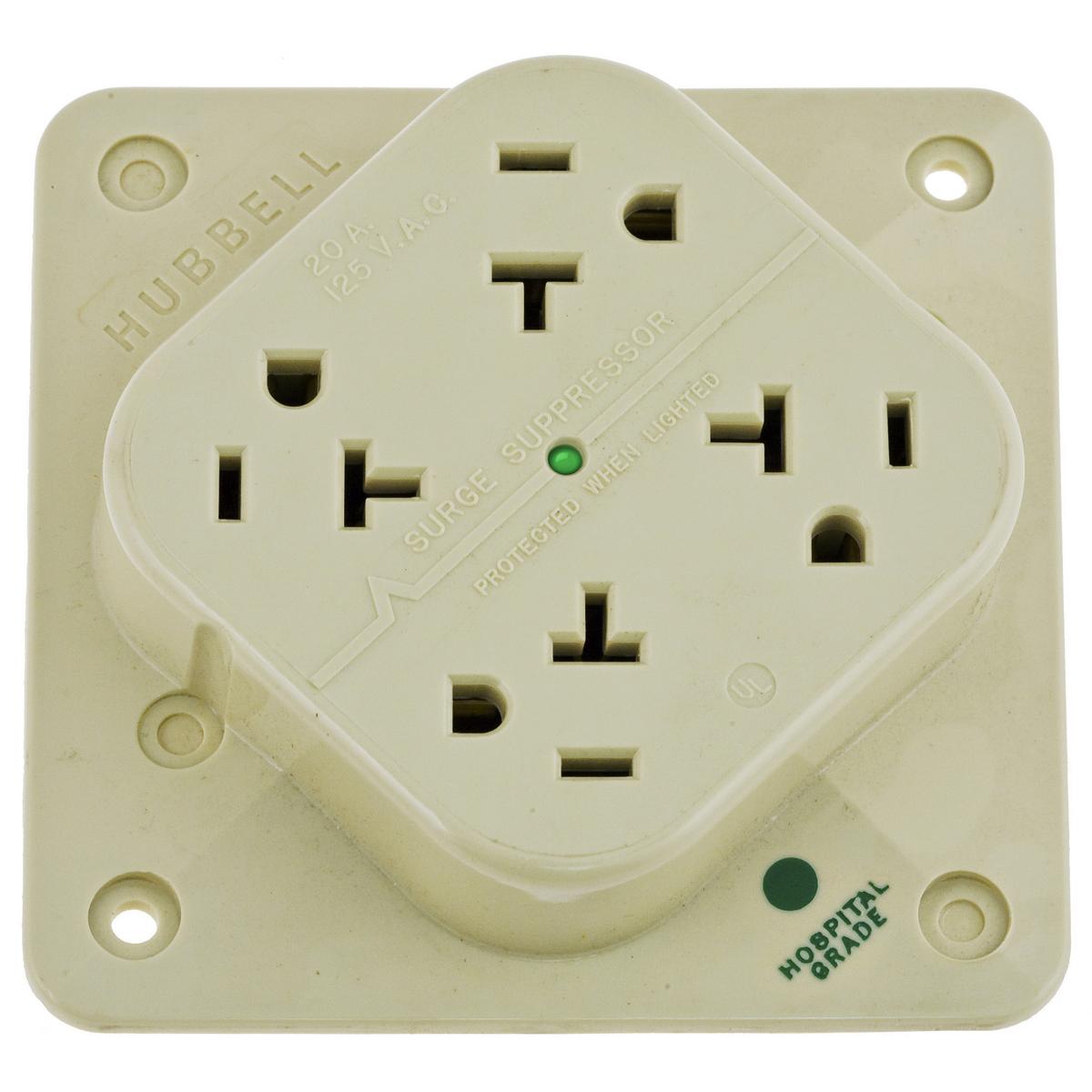

Wiring Device-Kellems HBL420HIS Duplex Hospital Grade Standard Surge Suppression Receptacle

Product Description

The Wiring Device-Kellems HBL420HIS is a surge suppression receptacle designed for hospital-grade applications. This device operates at 125 VAC, with a current rating of twenty amps and a frequency of sixty hertz. The construction includes a straight blade outlet suitable for normal mode use, ensuring secure connections for medical equipment.

• Duplex hospital grade standard receptacle
• LED indicators for status confirmation
• Threaded mounting for easy installation

Product Highlights

This receptacle features heavy-duty construction for enhanced durability and safety. It includes removable knockouts and a screw terminal connection for reliable electrical performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Class: Common/Normal Mode
• Color: Ivory
• Connection: Screw Terminal
• Environmental Conditions: UL 94 V-2 Flammability Rated
• Material: Composite
• Mounting: Threaded
• Operating Temperature: 32 to 140 deg F
• Outlet: Straight Blade
• Response Time: 5 ns
• Size: 0.92 in W x 4.3 in D x 4.3 in H
• Type of Indicators: LED
• Type: Duplex Hospital Grade Standard
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Frequency Rating: 60 Hz
• Phase: 1
