Wiring Device-Kellems HBL4200RS2WR 1/3-Phase Flanged Grounding Non-NEMA Style 2 Single Reversed Standard Watertight Screw Mount

Product Description

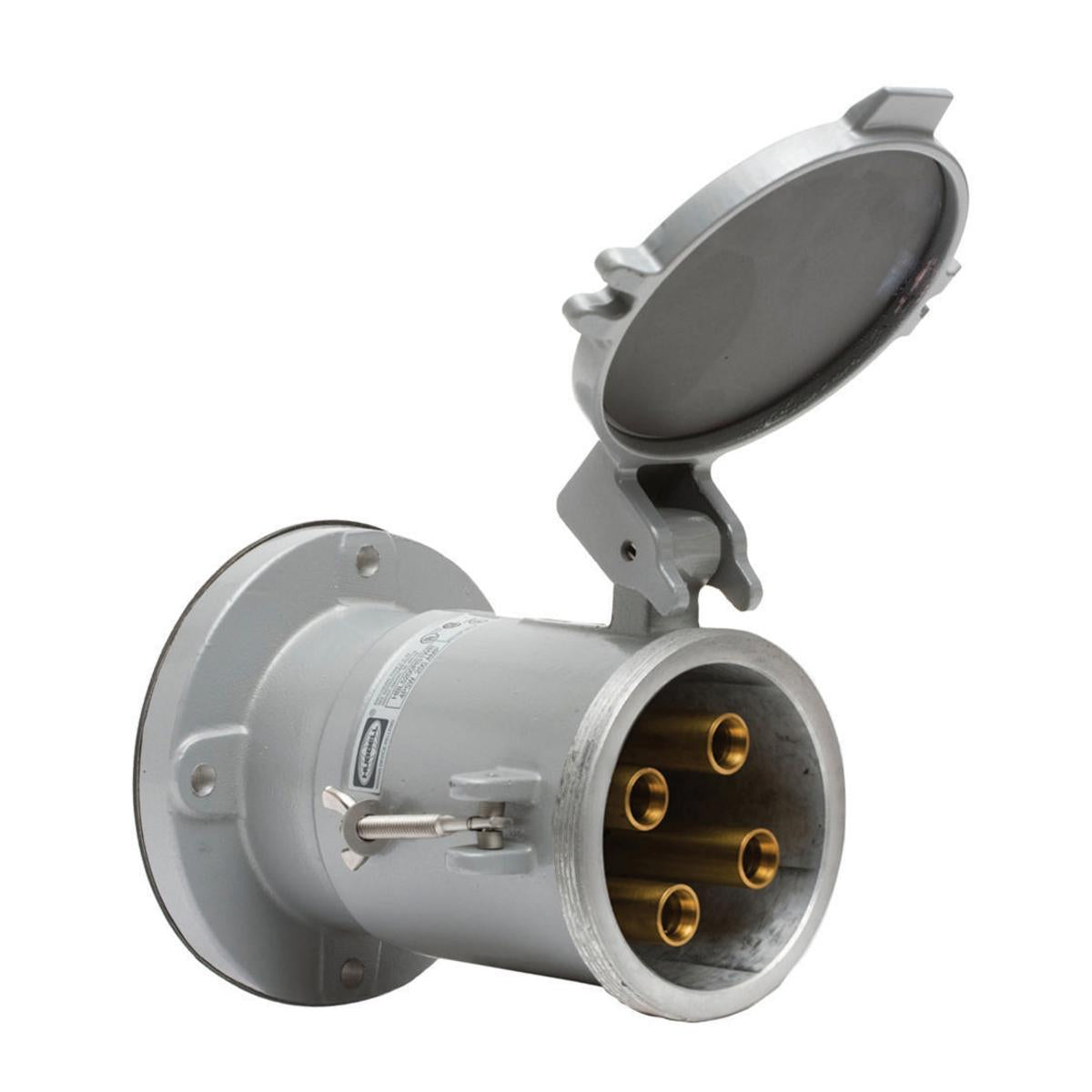

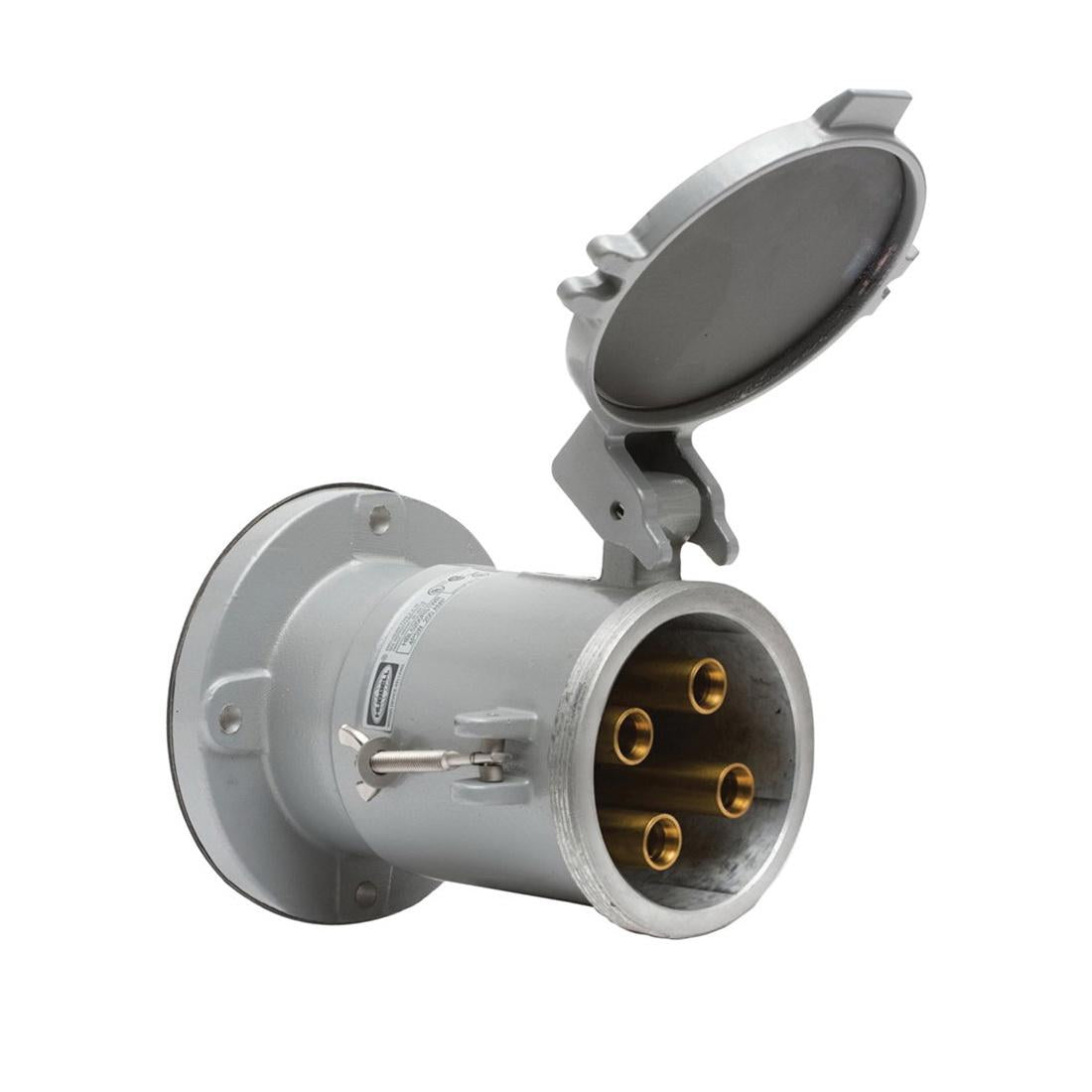

The Wiring Device-Kellems HBL4200RS2WR is a pin and sleeve receptacle designed for industrial applications. It features a flanged grounding design that meets the highest safety standards. This receptacle operates at 600 VAC and supports a maximum amperage of 200 A, making it ideal for heavy-duty use.

• Constructed from durable thermoplastic for impact resistance.
• Designed for -40 to 75 degrees Celsius temperature range.
• Equipped with pressure screw terminals for secure electrical connections.

Product Highlights

The HBL4200RS2WR is built to withstand harsh environments, offering watertight features that enhance safety. It's suitable for applications where moisture is a concern, ensuring reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Number of Poles: 3
• Number of Wires: 4
• Grade: Industrial
• Material: Thermoplastic
• Dimensions: 7.39 in L x 5.63 in W
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Pressure Screw
• Type: 1/3-Phase Flanged Grounding Non-NEMA Style 2 Single Reversed Standard Watertight Screw Mount
• Color: Black/Gray
