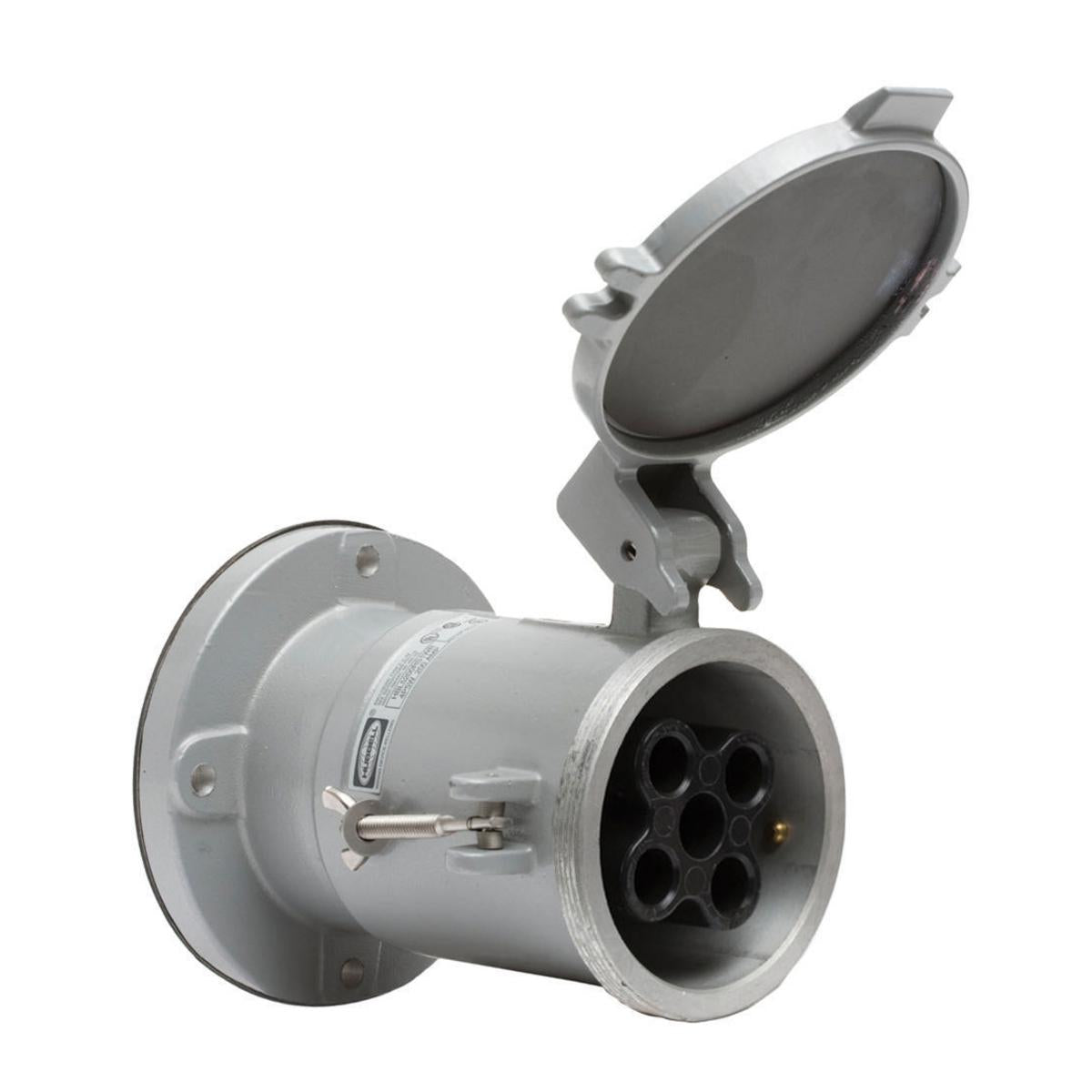

Wiring Device-Kellems HBL4200RS2W 1/3-Phase Flanged Grounding Non-NEMA Style 2 Single Standard Watertight Screw Mount

Product Description

The Wiring Device-Kellems HBL4200RS2W is a 1/3-phase flanged grounding receptacle designed for industrial applications. The product features a watertight design, making it suitable for use in wet locations. With a voltage rating of six hundred volts and an amperage rating of two hundred amps, it ensures safe and reliable power connections.

• 1/3-phase design for versatile power distribution
• Locking ring provides watertight and dusttight seal
• Thermoplastic construction for durability in harsh conditions

Product Highlights

This receptacle is engineered with safety as a priority, including a non-metallic watertight system to minimize electrical shock hazards.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1/3-Phase Flanged Grounding Non-NEMA Style 2 Single Standard Watertight Screw Mount
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Number of Poles: 3
• Number of Wires: 4
• Material: Thermoplastic
• Color: Black/Gray
• Temperature Rating: -40 to 75 deg C
• Dimensions: 7.39 in L x 5.63 in W
• Terminal Type: Pressure Screw
• Grade: Industrial
